ViewSonic E70F - 17" CRT Display User Manual

32
34
33
35

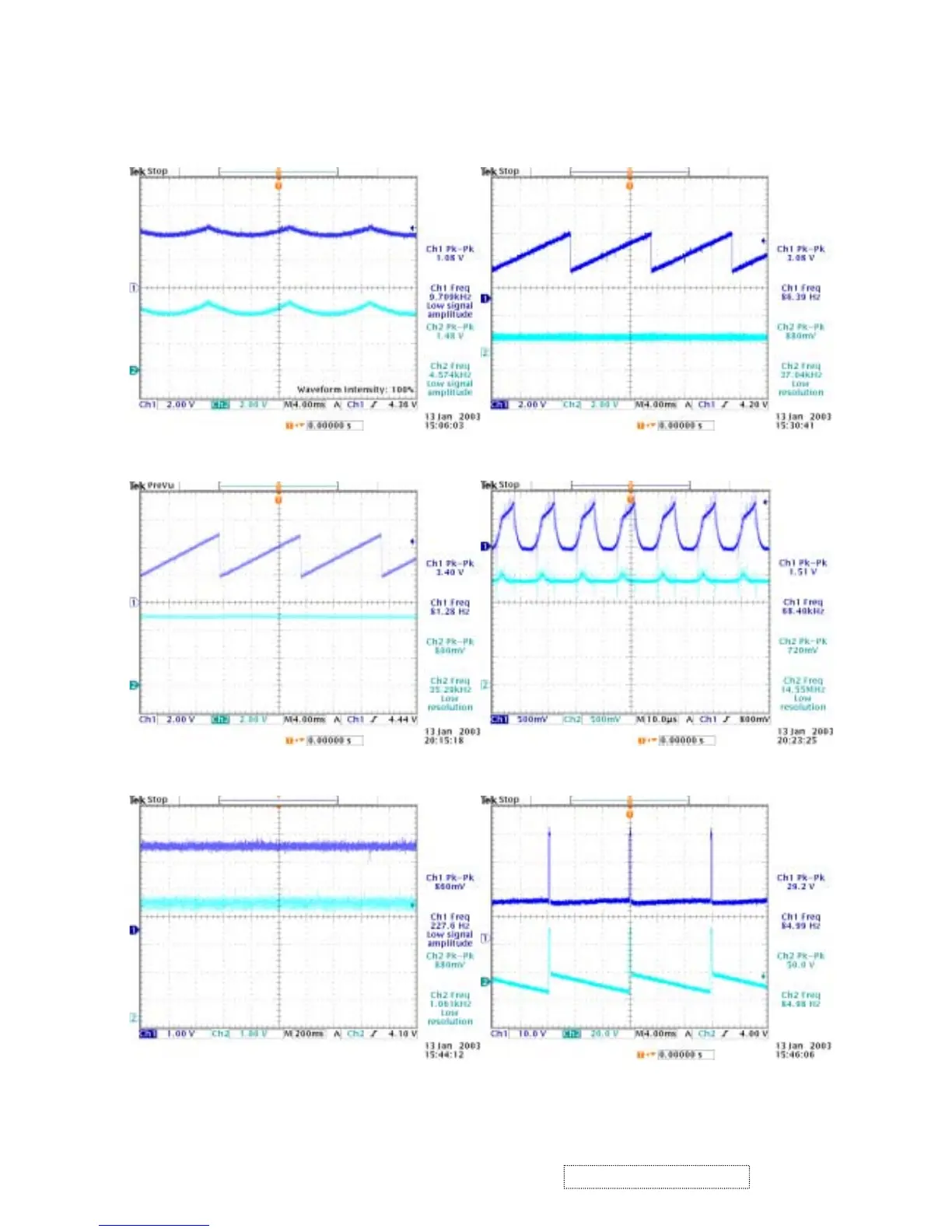

1=> Pin 24 (EWDRV) IC401
2=> Pin 32 (VFOCUS) IC401
1=> Pin 23 (VOUT) IC401
2=> Pin 10 (REF+ IN) IC501
38
36
39
37
1=> Pin 19 (VRB) IC401
2=> Pin 16 (ISENSE) IC401
1=> Pin 22 (VCAP) IC401
2=> Pin 20 (VAG) IC401
40 42
41 43
1=> Pin 18 (VEHT) IC401
2=> Pin 17 (HEHT) IC401
1=> Pin 9 (VCC-H) IC501
2=> Pin 6 (VO+) IC501
69
ViewSonic Corporation Confidential
-
Do Not Copy 70f+SB-3E
