ViewSonic E70F - 17" CRT Display User Manual

44
46
45
47

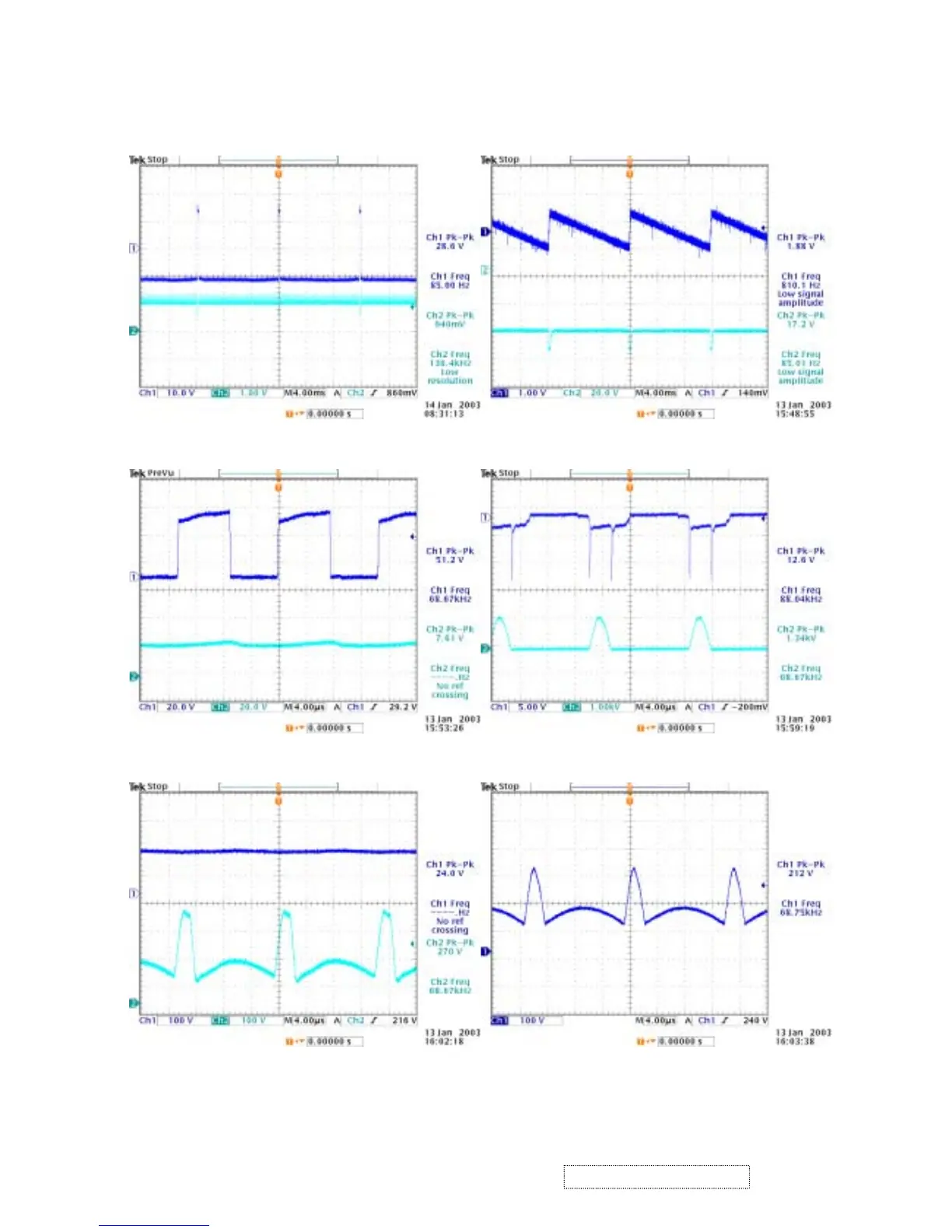

1=> Pin 4 (FLY-GEN) IC501
2=> Pin 1 (VIN-) IC501
1=> VDY-
2=> G1
5048
49 51
1=> COLLECTOR Q402
2=> Pin 1 T402
1=> BASE Q401
2=> COLLECTOR Q4O1
52
54
53
1=> COMMON RL401
1=> CENTER VR 401
2=> HDY-
70
ViewSonic Corporation Confidential
-
Do Not Copy 70f+SB-3E
