17

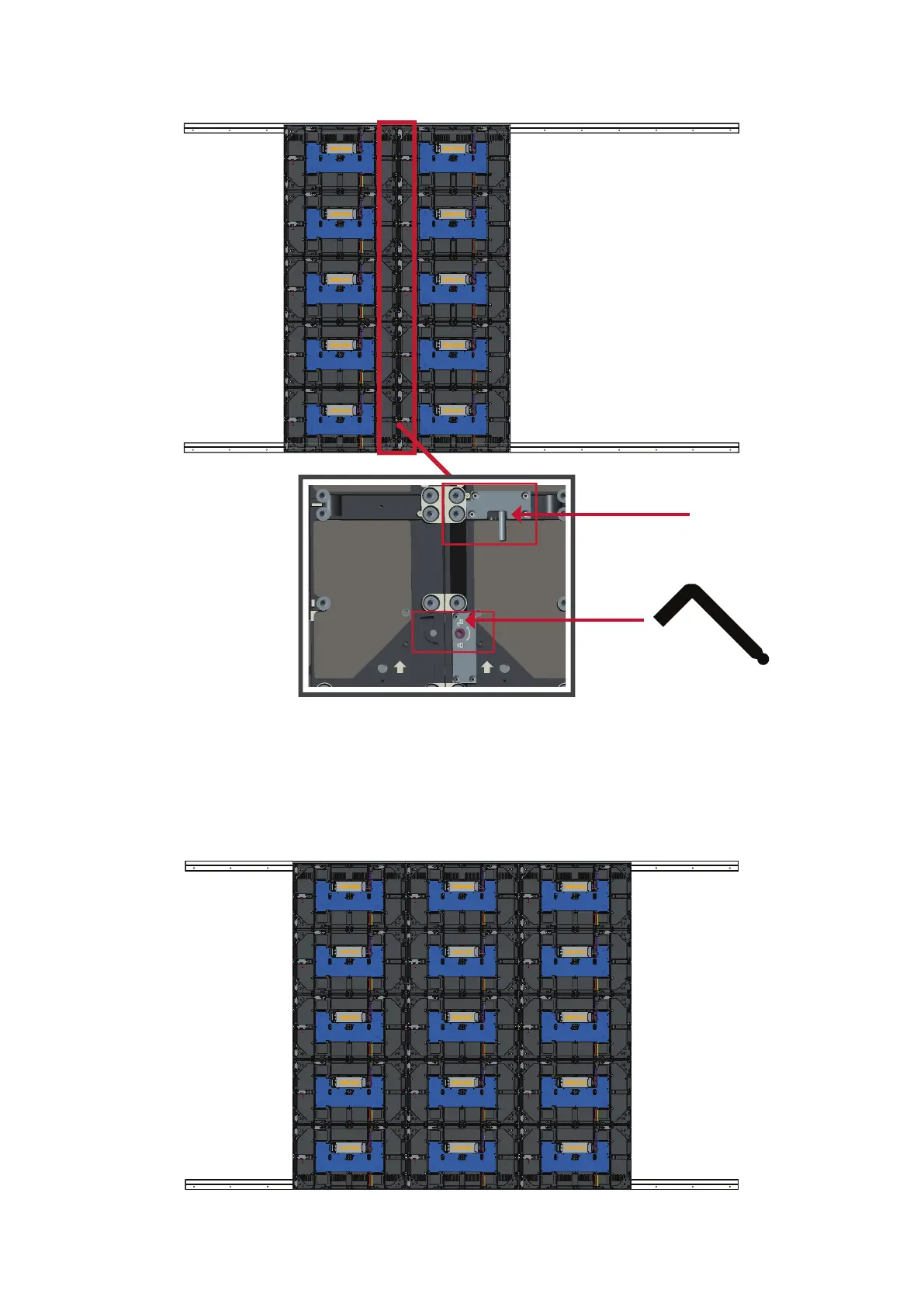

4. Push each Locking Bolt and lock each Hook with the hex tool to securely connect
each cabinet together.
NOTE: There are ve (5) Locking Bolts and 10 Hooks between each cabinet.
5. Li the remaining Middle Cabinet up onto the Upper Wall Mount Brackets,
ensuring the Mounng Brackets sit securely on the Wall Mount Brackets.
6. Repeat Step 4, securing the cabinets together with each Locking Bolt and Hook.
1
3
4
Push the Locking Bolt.
Lock each Hook with the hex tool.
