ViewSonic Corporation Confidential - Do Not Copy
43

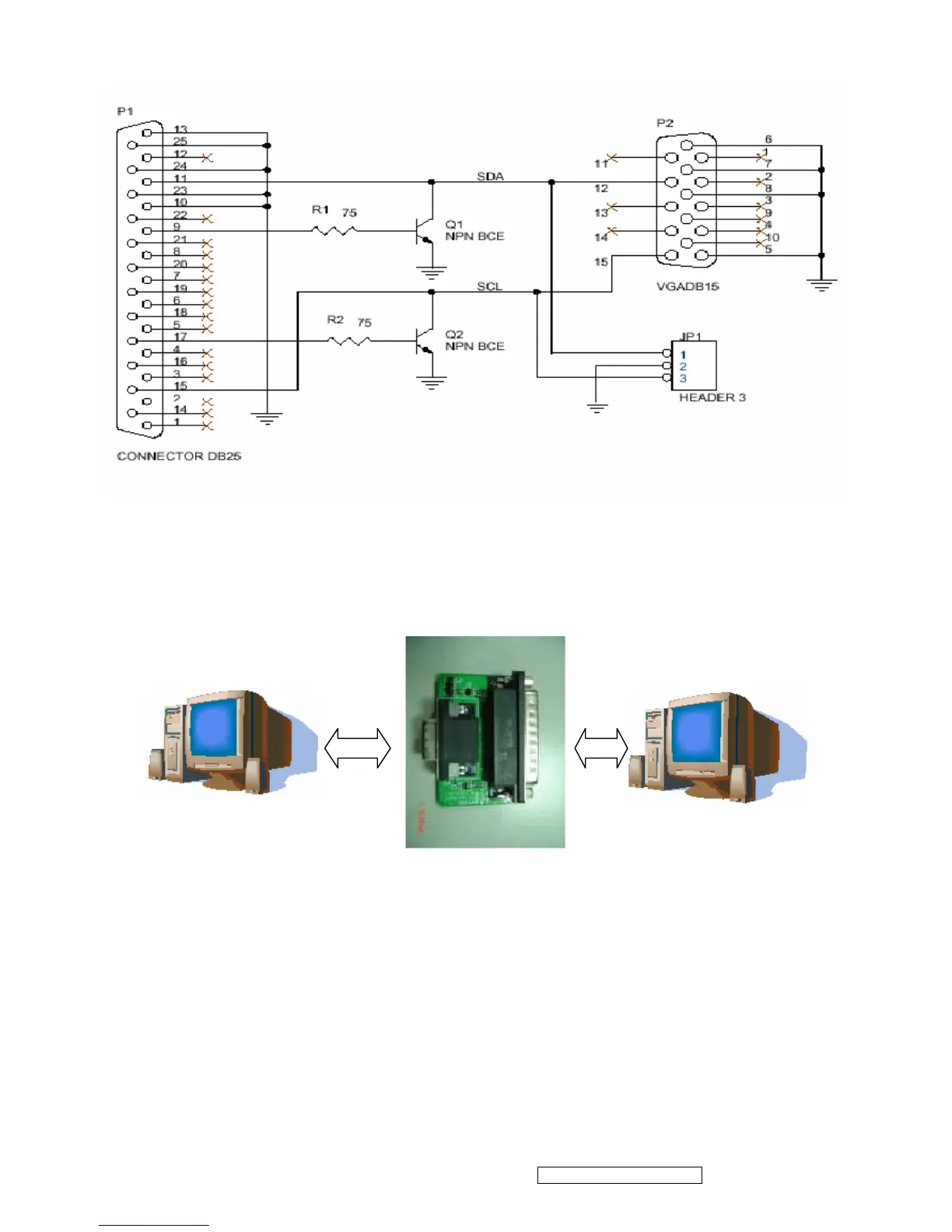

8. ISP Adaptor Schematic
9. Adaptor Linking
The Monitor Set
Connect with
Printer Cable
25Pins to 25Pins
PC/HOST
Connect with
VGA Cable
15Pins to 15Pins
ISP Adaptor
VG2030m-1
