ViewSonic VNB131 7

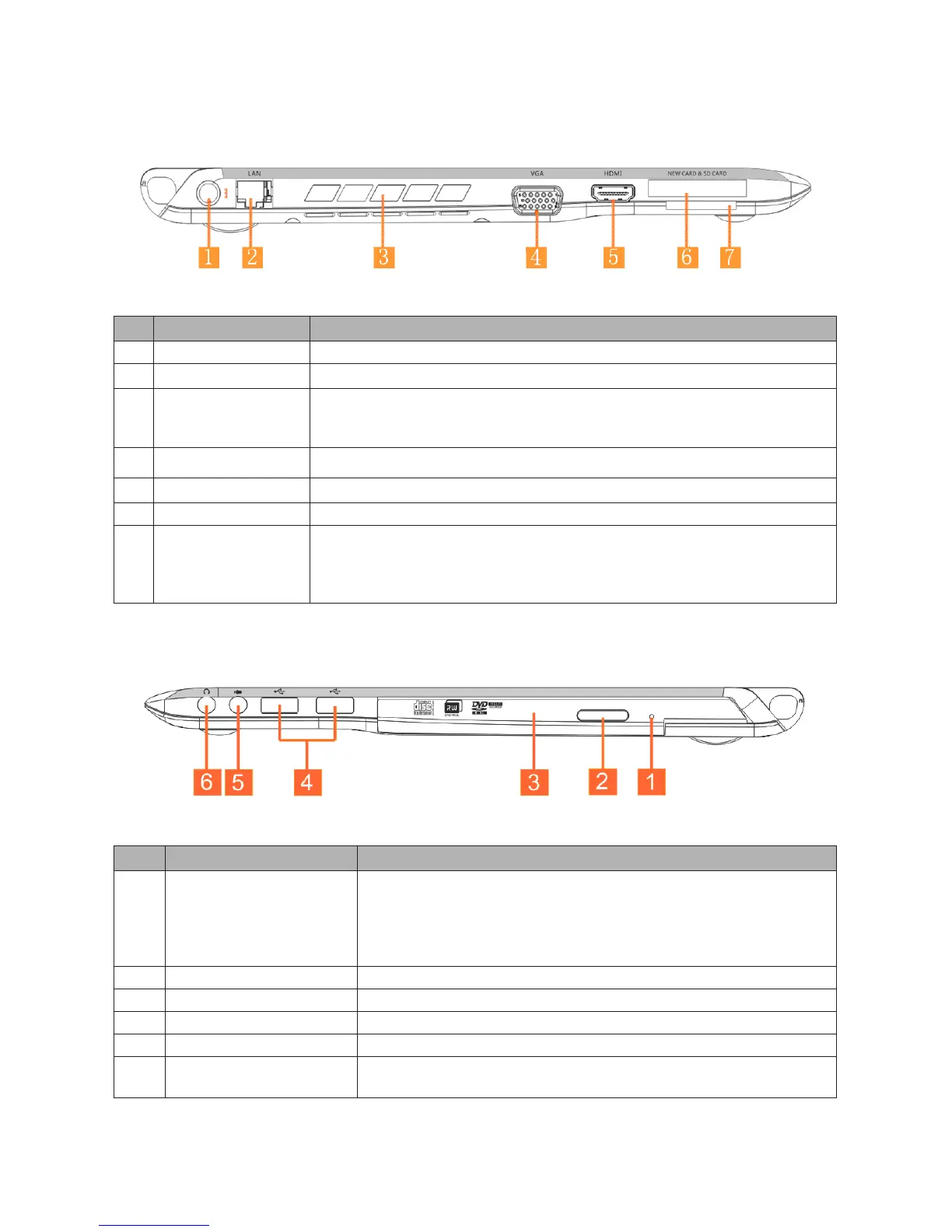

Left view
NO. Item Description
1 DC-in jack Connects an AC adapter to ViewBook Pro.
2 Ethernet (RJ-45) port Connects to an Ethernet 10/100-based network.
3 Fan Outlets
These are vents for the fan to dissipate heat from the computer’s internal
components. Do not block or place the computer in such a position that you
inadvertently allow the outlets to become blocked.
4 VGA port Connects to a display device. (e.g., external monitor, LCD projector).
5 HDMI port Connects to multimedia devices of HDMI protocol.
6 PCI Express slot Here PCI Express expansion cards can be inserted.
7
Memory Card
Reader
The memory card reader offers the fastest and most convenient method to
transfer pictures, music and data between your netbook and devices using
ash memory cards such as digital cameras, MP3 players, mobile phones,
and PDAs. (Optional).
Right view
NO. Item Description
1 Tray release
Use a sharp tool like a paper clip to push the button inside the tray
release hole to open Super Multi Drive tray when ViewBook Pro can-
not be turned on due to unavailability of electricity or in case a Super
Multi Drive is not responding for a long time to pressing the open-
tray button.
2 Open- tray button Press this button to open the Super Multi Drive tray.
3 Super Multi Drive Plays and records CD or DVD discs. (Optional).
4 USB 2.0 ports Connects to USB 2.0 devices. (e.g., USB mouse, USB camera).
5 Microphone-in jack Accepts input from external microphones.
6
Headphones / speaker /
line-out jack
Connects to audio line-out devices. (e.g., speakers, headphones).
To Next Page
