Connecting the cables
This section describes how to connect the following cables:
1. Power adapter cord
2. Digital signal cable
3. Power cord
Connecting the power adapter cord
1. Connect the power adapter cord to the DC-IN connector at the rear of the display. Make sure that
it clicks firmly into the connector.
Note:
The video connectors A and B on the display are Safety Extra Low Voltage (SELV) circuits.
2. Route the cables through the cable clamp and the cable hook.

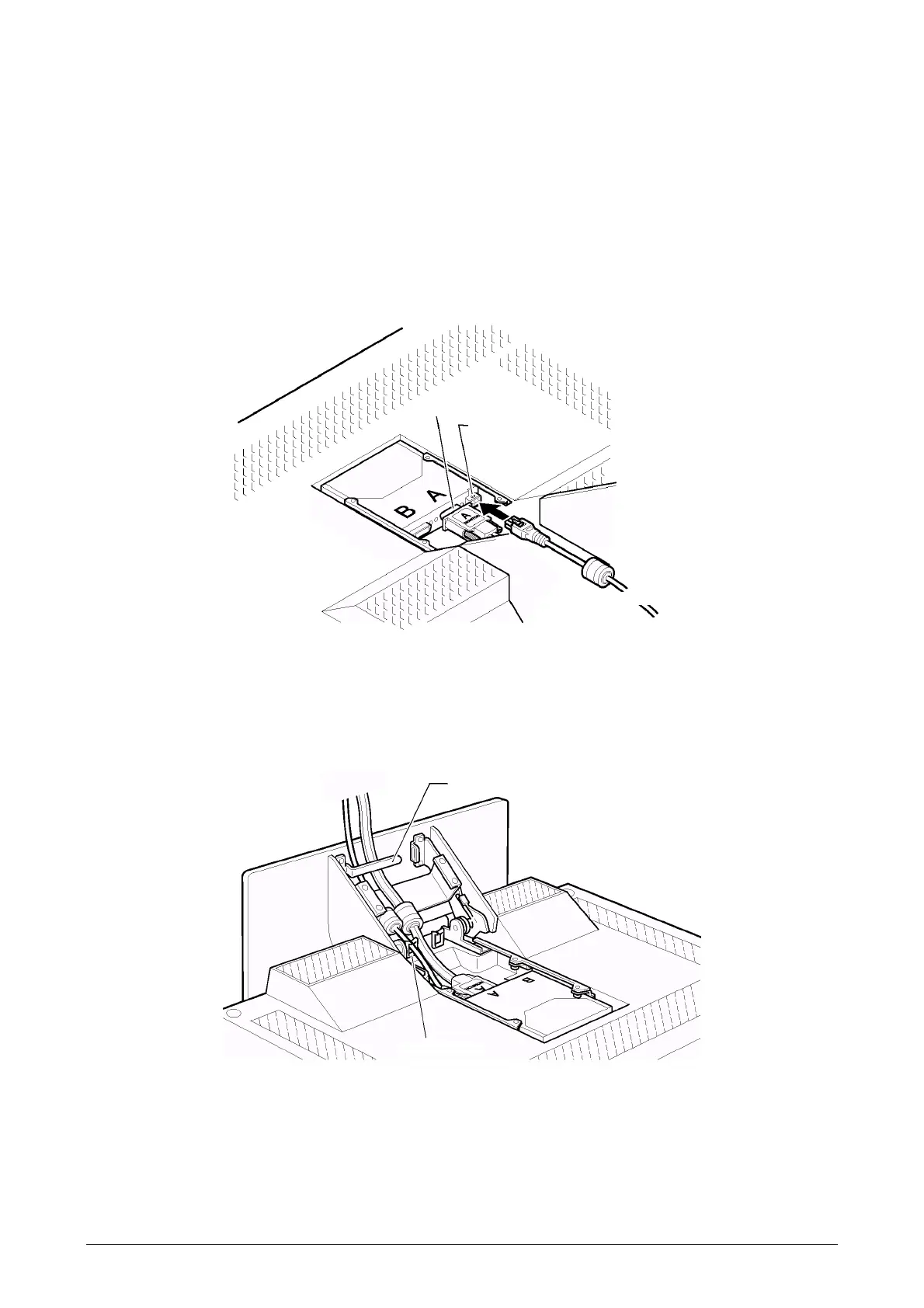

Top vie w
Video connector
DC-IN connector
bottom view
Cable hook
Cable clamp
