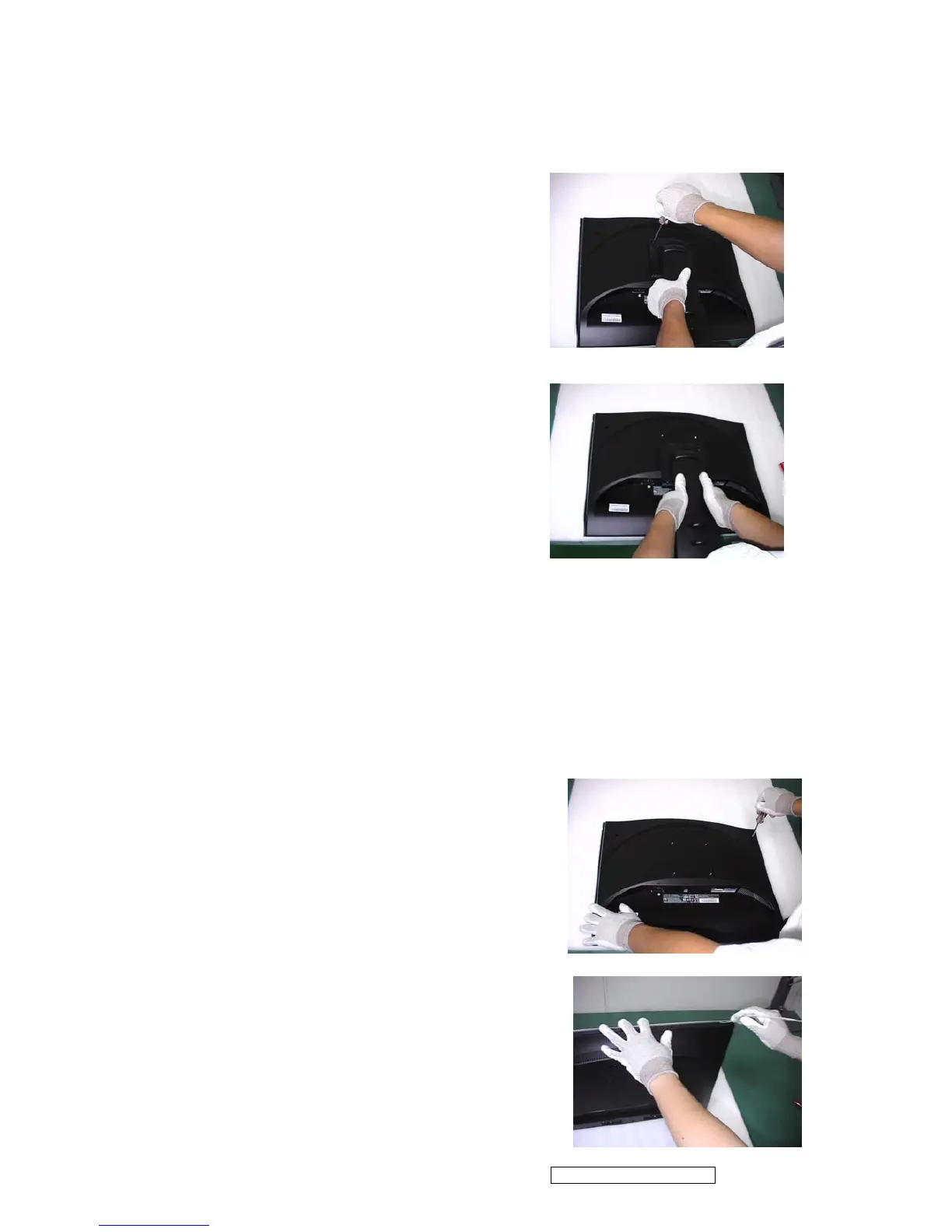

Monitor Assembly and Disassembly
1 Separate Stand Assy
1.1 Remove Stand Cover
2 Separate Rear Cover (Rear Case Assy)
Separate Bezel hooks to take Bezel and Rear Cover apart.
Step 1 :
Loose and remove 3 screws.
Step 2 :
Separate Bezel hooks to take
Bezel and Rear Cover apart.
Step 3 :
Completed.
Step 1 :
Loose and remove 4 screws
Step 2 :
Remove the Stand Assy
To Next Page
