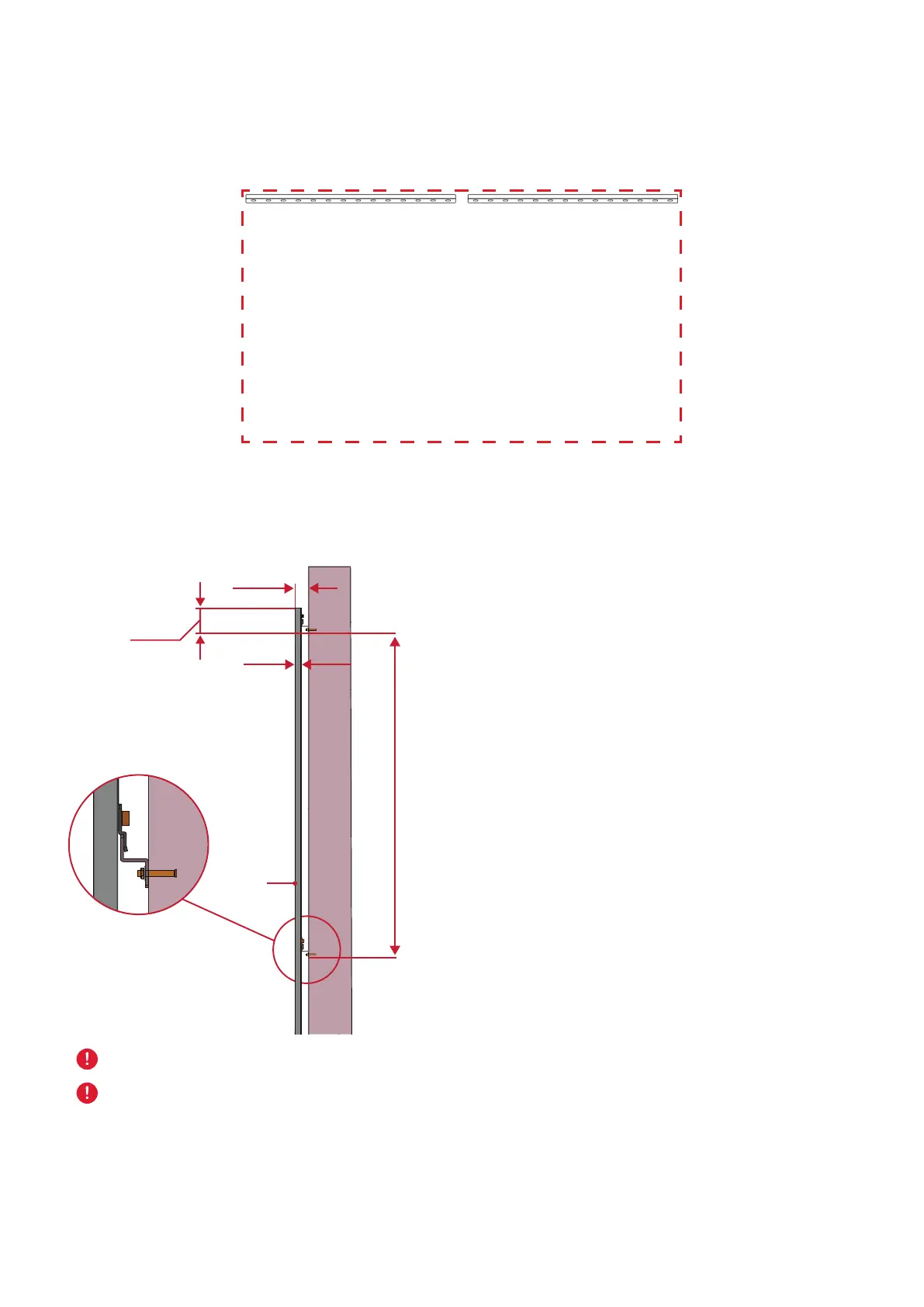

3. Install the rst Upper Wall Mount Bracket with the provided screws (M6x50mm
Expansion for masonry; TA6x30mm for load bearing wood).
4. Repeat Step 2, ensuring the second Upper Wall Mount Bracket is level with the
rst upper bracket.
5. Install the Lower Wall Mount Brackets in the same manner as the Upper Wall
Mount Brackets. The distance between the Upper and Lower Wall Mount
Brackets is 93 ¹/₆₄" (2362.5 mm).
57
mm
4 ¹/₆₄ in
2 ¹/₄ in
102 mm
93 ¹/₆₄ in
2362.5
mm
W
a
l
l
Display
25
mm
⁶³/₆ ₄ in
NOTE: You can also install the Upper
Wall Mount Brackets, hang
the screen, and then install
the Lower Wall Mount
Brackets for a more precise
t.
Ensure the wall can safely support 749.57 lbs. (340 kg).
Ensure the deviaon of the wall surface is < ¹³/₆₄" (< 5 mm).
