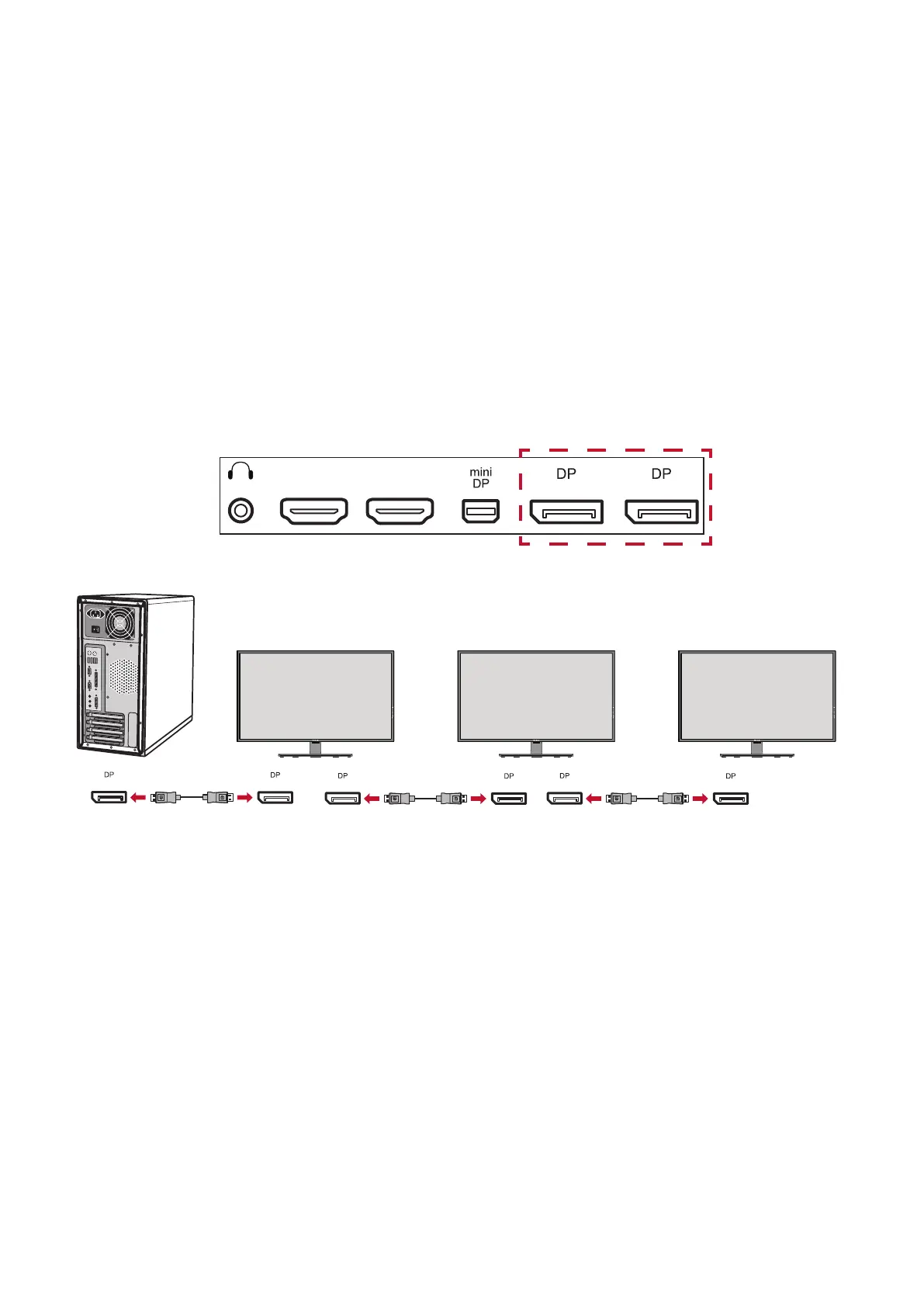

DisplayPort MST Daisy Chain Connecon
With DisplayPort Mul-Stream Transport (MST) support, you can daisy chain
connect up to four (4) monitors.
1. Connect one end of a DisplayPort cable to the DisplayPort Out port of your
computer. Then connect the other end of the cable to the DisplayPort In port of
the monitor.
2. Use another DisplayPort cable to connect to the DisplayPort Out port of the rst
monitor. Then connect the other end of the cable to the DisplayPort In port of
the second monitor.
3. Repeat Step 2 as needed with up to four (4) monitors.
NOTE: Your graphics card compability and monitor resoluon will determine
the number of monitors.
HDMI 1HDMI 2
IN
OUT
1
2
3345
6
OutIn OutIn
OutIn
Out
In
Out
In
Out
In
NOTE:
• DisplayPort 1.2 MST must be turned on in the Setup Menu in the OSD
Menu to enable daisy chaining.
• If the input source changes to HDMI, DisplayPort 1.2 MST will turn o
automacally.
