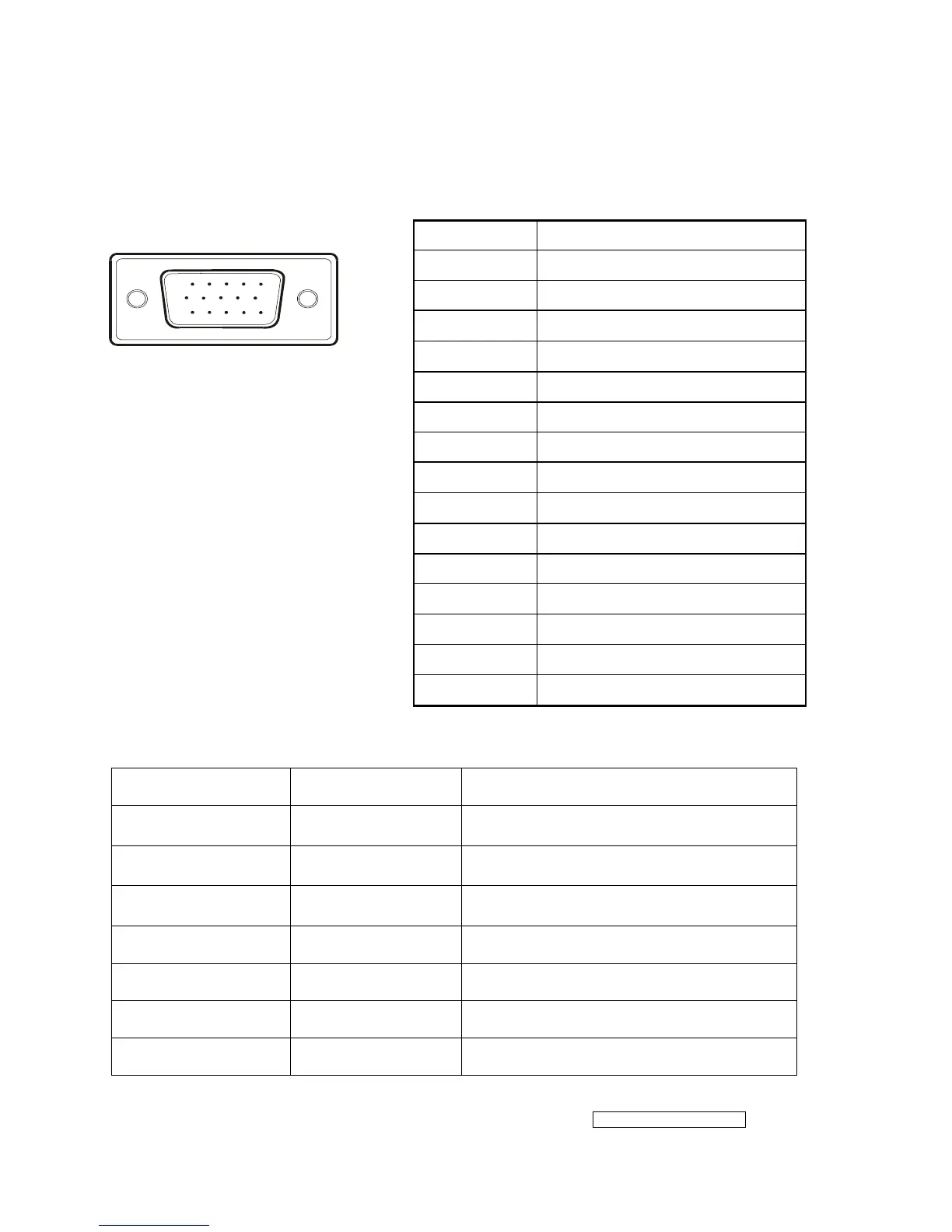

2.2 INTERFACE DESCRIPTION
D-SUB 15 PIN CONNECTOR
15
6
10
11 15
SIGNAL LEVEL
CONNECTOR SIGNAL DESCRIPTION
R Red
0.7
vp-p（VIDEO）
G Green
0.7
vp-p（VIDEO）
B Blue
0.7
vp-p（VIDEO）
H H/Sync TTL positive or negative
V V/Sync TTL positive or negative
SDA DDC1/2B TTL
SCL DDC1/2B TTL
Pin Number Pin Function
1 Red video input
2 Green video input
3 Blue video input
4 No Connection
5 Ground
6 Red video ground
7 Green video ground
8 Blue video ground
9 +5V
10 H/V sync ground
11 No connection
12 (SDA)
13 Horizontal sync (Composite sync)
14 Vertical sync
15 (SCL)
