ViewSonic VX715 Service Manual

ViewSonic Corporation
14

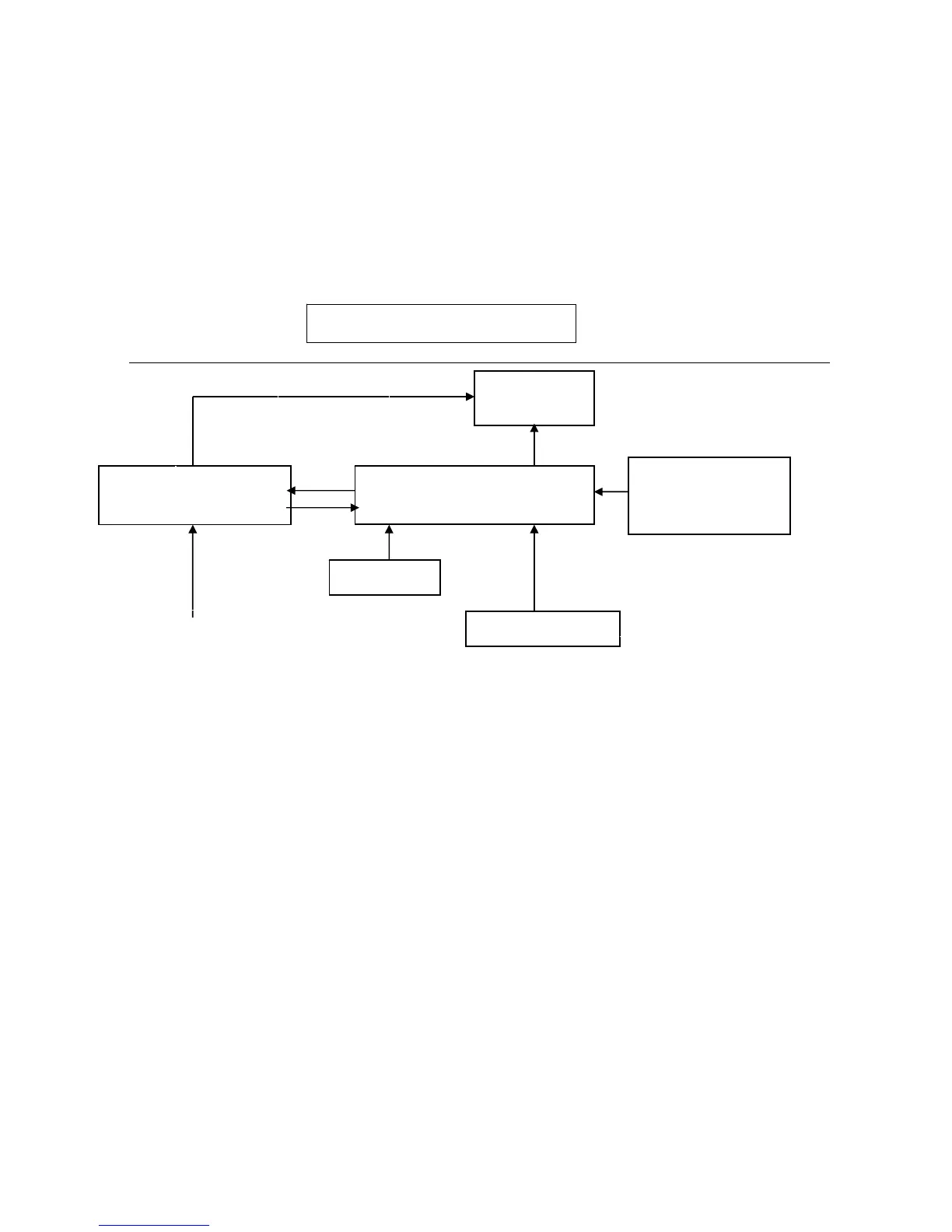

4.Function Module Description
4.1 LCD MONITOR DESCRIPTION
The LCD MONITOR will contain a Main Board, a Power Board, and Key Board which house the flat panel control
logic, brightness control logic and DDC.
The Power Board will provide AC to DC Inverter voltage to drive the backlight of panel and the Main Board chips each
voltage.
Power Board
(Include: adapter, inverter)
Flat Panel and
CCFL backlight
Main Board
Key Board
RS232 Connector
For white balance
adjustment in factory
mode
HOST Computer
CCFL Drive.
AC-IN
100V-240V
Video signal, DDC
Monitor Block Diagram

ViewSonic VX715 Specifications

General

Response time	25 ms
Display diagonal	17 \
Display resolution	1280 x 1024 pixels
Vertical scan range	85 Hz
Horizontal scan range	82 kHz
Viewing angle, vertical	130 °
Viewing angle, horizontal	140 °
Display brightness (typical)	300 cd/m²
Panel mounting interface	100 x 100 mm
Power requirements	AC 110/230 V ( 50/60 Hz )
I/O ports	1 x VGA - 15 pin HD D-Sub (HD-15) 1 x DVI-D - 24 pin digital DVI
Compatibility	PC/Mac
Certification	TCO '03, FCC Class B certified, CE, MPR II, UL, TUV GS, VCCI, C-Tick, BSMI, ISO 9001, GOST, cUL, EPA Energy Star, GS, ISO 13406-2, NEMKO, NOM, PCBC, SASO, TCO '99, ISO 14001, CB, CCC, TUV Ergo, PSB
Market positioning	-
Power consumption (typical)	35 W
Operating relative humidity (H-H)	20 - 90 %
Maximum operating temperature range (T-T)	0 - 40 °C

Weight and Dimensions

Depth (without stand)	176 mm
Width (without stand)	388 mm
Height (without stand)	438 mm
Weight (without stand)	5000 g
