ViewSonic Corporation
6
22. 1152 x 864 @ 75Hz, 67.5kHz
23. 1152 x 870 @ 75Hz, 68.7kHz
24. 1280 x 1024 @ 60Hz, 63.4kHz
25. 1280 x 1024 @ 75Hz, 79.97kHz
26. 1280x 720 @ 60Hz, 45kHz (HDTV)

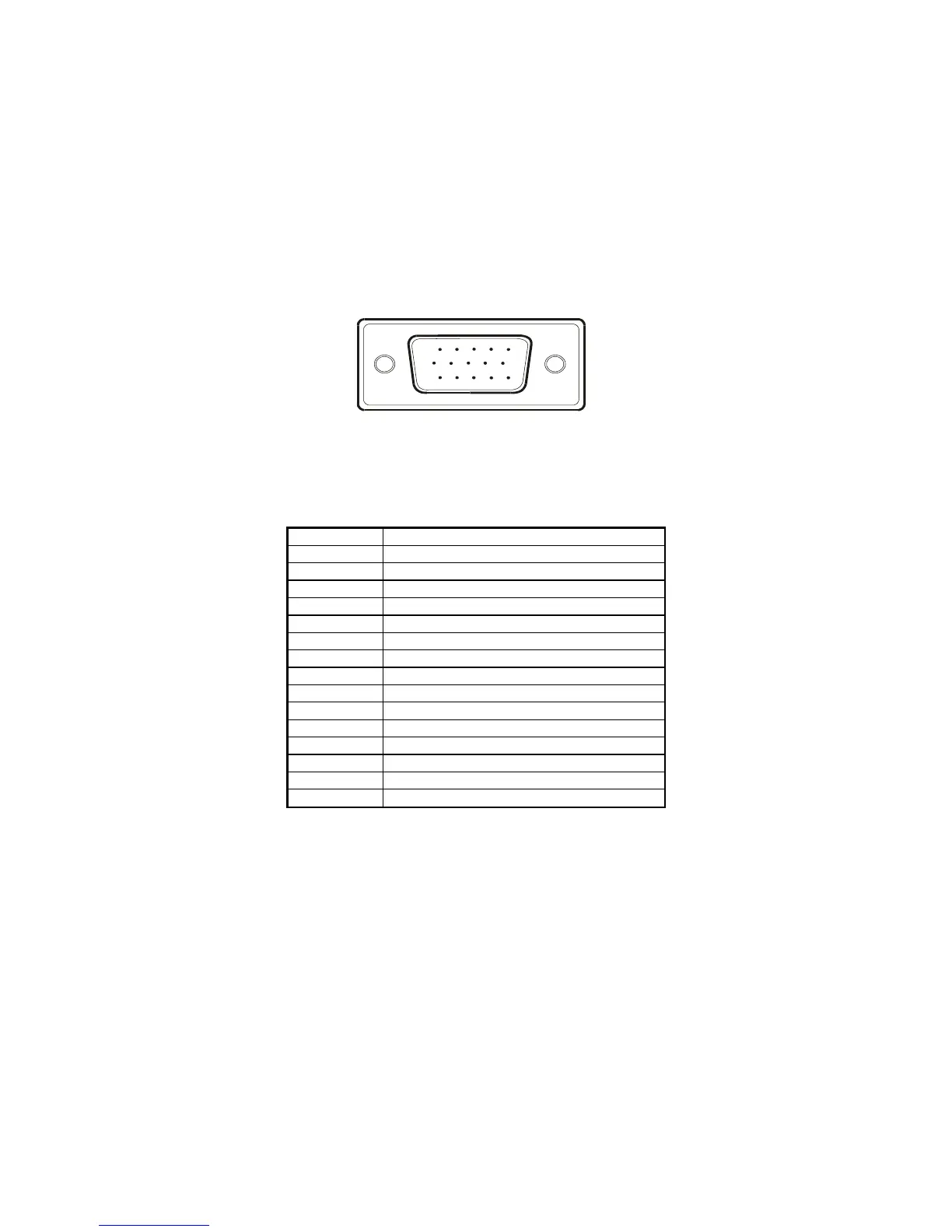

2.3 D-SUB CONNECTOR
15
6
10
11 15
D-SUB 15 PIN CONNECTOR
Pin Number Pin Function
1 Red video input
2 Green video input
3 Blue video input
4 No Connection
5 Ground
6 Red video ground
7 Green video ground
8 Blue video ground
9 +5V
10 H/V sync ground
11 No connection
12 (SDA)
13 Horizontal sync (Composite sync)
14 Vertical sync
15 (SCL)
