Viking Electronics E-30-IP - Page 5

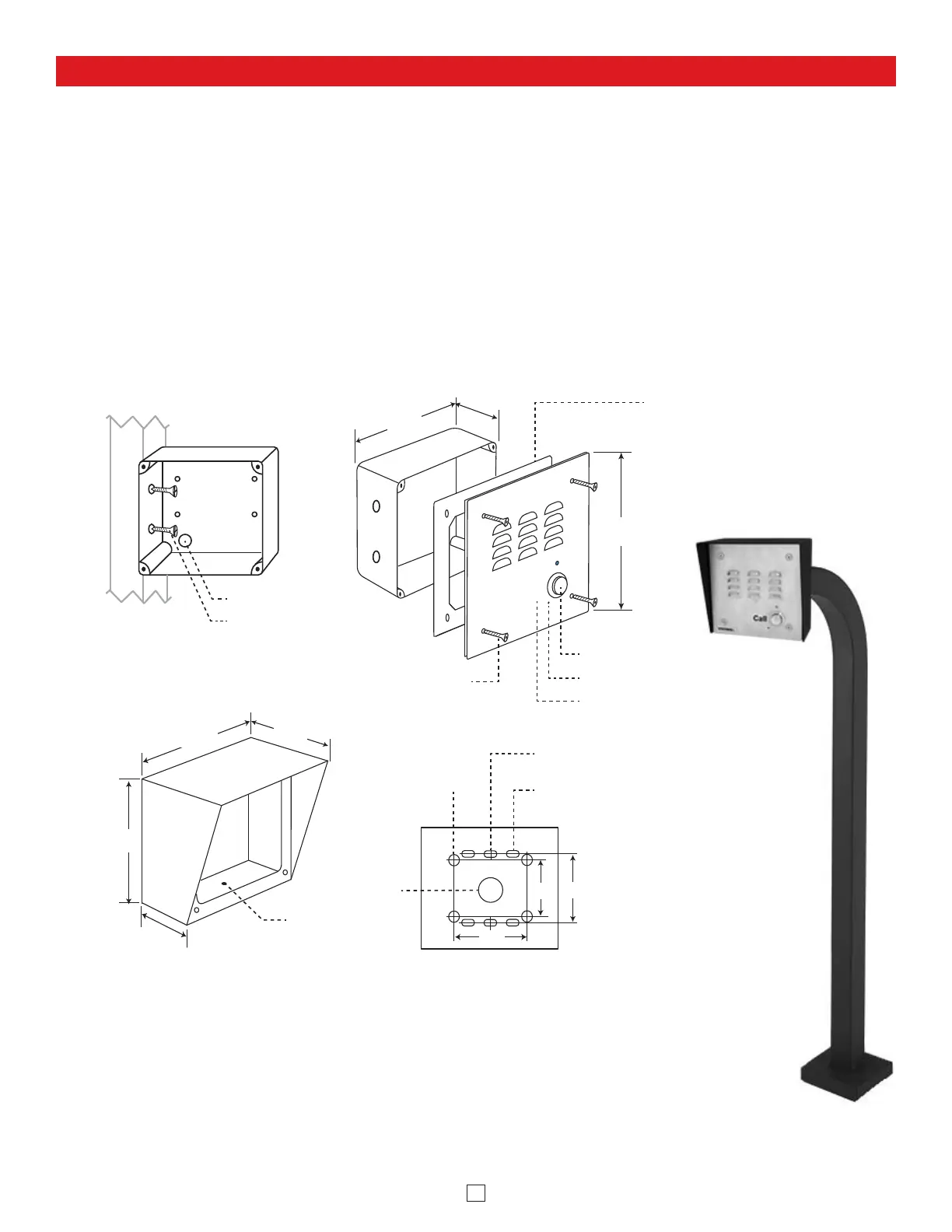

Installation and Specifications
A. E-10-IP / E-10-IP-EWP / E-30-IP / E-30-IP-EWP
The E-10-IP and E-30-IP are designed to be flush mounted to the included 4” x 4” x 2” deep plastic rough in box or sur-
face mounted using an optional Viking model VE-5x5. Note: The E-10-IP and E-30-IP will NOT mount to a standard
double gang box. The plastic rough in box (part # 259576) may be purchased separately. Go to www.vikingelectron-
ics.com and click on “Spare Parts”.
Dimensions: Overall: 127mm x 127mm x 57mm (5” x 5” x 2.25”), Plastic Rough-In Box: 102mm x 102mm x 57mm (4” x 4” x 2.12”)
E-10-IP Faceplate: 12 gauge aluminum with black textured powder paint
E-30-IP Faceplate: 14 gauge 316 stainless steel with #4 brushed finish
Shipping Weights: E-10-IP: 0.91 kg (2 lbs), E-30-IP: 1.0 kg (2.12 lbs)
Blue LED (E-30-IP/EWP Only): Call connected LED lights steady to help locate the button in low light, flashes during dialing, then
lights steady when answered.
Front View of Optional
VE-5x5 (not included)
2.25”
Condensation
Drain Hole
5.14”
5.22”
3.25”
4.0"
Rear View of
VE-5x5 (not included)
5.0”
Typical
(2) 0.2 x 0.43 slots for
single gang box
(4) 0.2 x 0.43 slots for
double gang box
(1) 0.74"
diameter
3.0” 3.3”
3.0”
2.1”
Wall Stud
Front View of
Plastic Rough-In
Box (included)
Wire knock out
(2) Standard flat head
dry wall (sheet rock)
screws (not included)
VIKING
©
Call
(4) 0.38” diameter
(for gooseneck
pedestal mounting)
Peel paper liner and adhere gasket
to back of panel, centering over
mounting holes. Caution: For rough
surfaces (ie: brick, stucco, etc.)
additional caulking may be required.
(4) T-10 Torx stainless steel,
flat head, security screws
and drive bit (included)
Optional VE-5x5 Surface Mount Box with
black satin powder paint finish, not included
(DOD# 424). Optional VE-LIGHT kit can be
used to illuminate the faceplate when used
with a VE-5x5 (DOD# 428).
WARNING: Do NOT use a wet location box.
Model E-30-IP shown
in an optional VE-5x5
Surface Mount Box
mounted to a
VE-GNP Gooseneck
Pedestal
Other pedestal
options available,
see DOD# 424
The optional VE-5x5 Surface Mount Box
(above) is designed to be surface mounted
to a single gang box, double gang box or
VE-GNP Gooseneck Pedestal (shown right).
For more information on the VE-5x5 and
VE-GNP, see DOD# 424.
|
OR
|
Push to Call Button
Condensation Drain Hole
Laser Etched Graphics
5
