C. E-20-IP / E-20-IP-EWP
The E-20-IP and E-20-IP-EWP are designed to be surface mounted to a single gang box (not included), a standard 4”
x 4” electrical junction box (not included), or directly to a wall or flat sided post. Caution: For rough surfaces (ie: brick,
stucco, etc.) additional caulking may be required.
UP
Call
VIKING©
3.40"
1.55"
3.40"
2.35"
3.30"
Front view of the
E-20-IP/E-20-IP-EWP
Back Panel of the
E-20-IP/E-20-IP-EWP
Side view of the
E-20-IP/E-20-IP-EWP
To open the speaker box, remove the
two separate screws from the cover.
Mount back panel to a wall, a single
gang box or a 4”x4” junction box with
the arrow pointing up. Note: For
outdoor applications apply a bead of
caulk between back panel and wall.
Attach the cover to the
base with the two included
screws as shown.
6

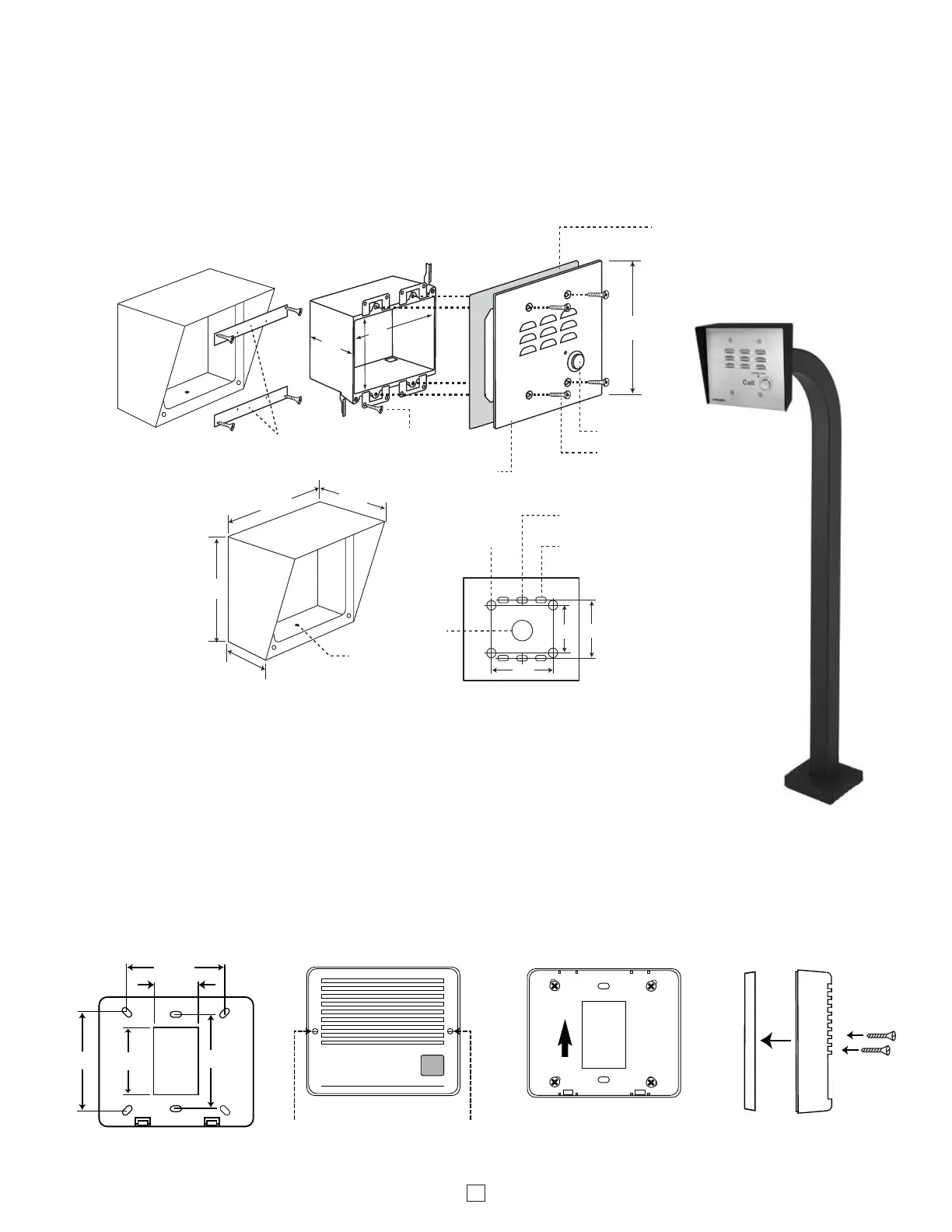

B . E-32-IP / E-32-IP-EWP
-OR-
3.65"
Wide
Min.
2.84"
Tall Min.
*2.25"
Deep
Min.
C
ONNECTED
Call
VIKING
©
"Old Work" Double
Gang Rough-In Box
(Allied Molded 9312 box
shown, not included)
(4) Optional Dry Wall
Screws (not included)
(2) Junction Box to Double Gang
Adapter Plates and (4) T-10 Torx
Flat Head Screws (included)
Front View of Optional
VE-5x5 (not included)
2.25”
Condensation
Drain Hole
5.14”
5.22”
3.25”
Rear View of
VE-5x5 (not included)
(2) 0.2 x 0.43 slots for
single gang box
(4) 0.2 x 0.43 slots for
double gang box
(1) 0.74"
diameter
3.0” 3.3”
3.0”
(4) 0.38” diameter
(for gooseneck
pedestal mounting)
Optional VE-5x5 Surface Mount Box with black satin
powder paint finish, not included (DOD# 424). Optional
VE-LIGHT kit can be used to illuminate the faceplate
when used with a VE-5x5 (DOD# 428).
WARNING: Do NOT use a wet location box.
Model E-32-IP shown
in an optional VE-5x5
Surface Mount Box
mounted to a
VE-GNP Gooseneck
Pedestal
Other pedestal
options available,
see DOD# 424
The optional VE-5x5 Surface Mount Box (above) is
designed to be surface mounted to a single gang
box, double gang box or VE-GNP Gooseneck
Pedestal (shown right). For more information on
the VE-5x5 and VE-GNP, see DOD# 424.
5.0”
Typical
Peel paper liner and adhere gasket
to back of panel, centering over
mounting holes. Caution: For rough
surfaces (ie: brick, stucco, etc.)
additional caulking may be required.
Laser Etched Graphics
Push to Call Button
(4) T-10 Torx stainless steel,
flat head, security screws
and drive bit (included)
Optional VE-5x5
(not included, see
specifications below)
The E-32-IP is designed to be flush mounted to a standard double gang electrical box (minimum dimensions of: 3.65”W x 2.84”H x
2.25”D) or surface mounted using an optional Viking model VE-5x5. * CAUTION: Excessive wire length and/or using a rough-in box
with inadequate depth can apply force to the circuit board causing physical damage.
Dimensions: Overall: 127mm x 127mm x 57mm (5” x 5” x 2.25”)
E-32-IP Faceplate: 14 gauge 316 stainless steel with #4 brushed finish
Shipping Weight: 1.0 kg (2.12 lbs)
Blue LED: Call connected LED lights steady to help locate the button in low light, flashes during dialing, then lights steady when an-
swered.
