Viking Range 30” W - Wood;Composite Overlay Installation; Wall Installation; Island Installation

5
WOOD/COMPOSITE OVERLAY INSTALLATION

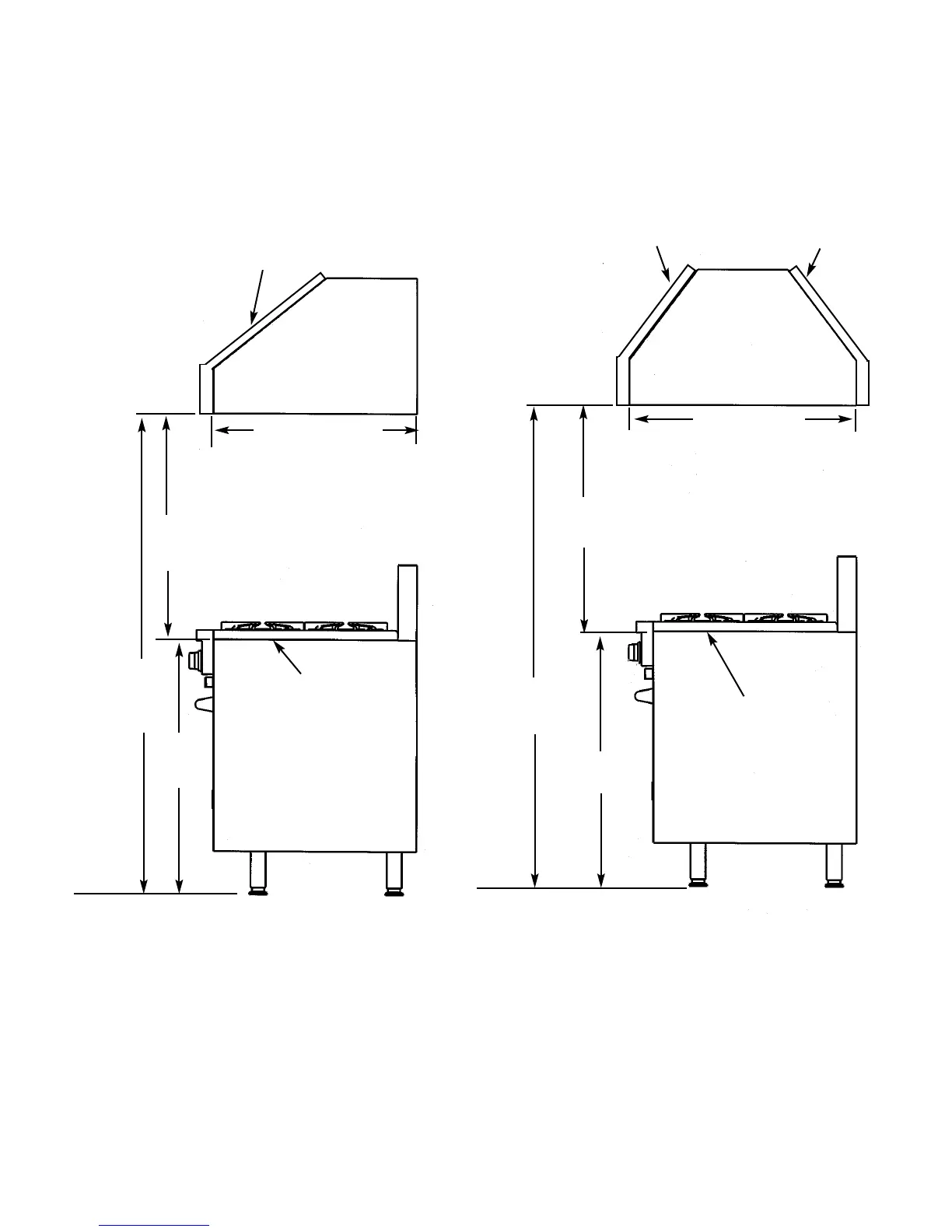

The bottom of a standard hood should be 30” (76.2 cm) min to 36” (91.4 cm) max. above the countertop. This
would typically result in the bottom of the hood being 66” (167.6 cm) to 72” (182.9 cm) above the floor. Refer to the
rangehood installation instructions for additional information. These dimensions provide for safe and efficient operation
of the hood.
30” (76.2 cm) min
36” (91.4 cm) max
66” - 72”
(167.6 cm -
182.9 cm)
30” (76.2 cm) min
36” (91.4 cm) max
66” - 72”
(167.6 cm -
182.9 cm)
36”
(91.4 cm)
ISLAND INSTALLATION
WALL INSTALLATION
36”
(91.4 cm)
Metal Hood
Metal Hood
Wood/Composite Overlay
Wood/Composite Overlay
Countertop
Countertop
24” (61.0 cm)
or
27” (38.6 cm)
30” (76.2 cm)
