Interior Oven
Light Switch
Left Rear Burner
Control Knob
(8,000 BTU)
Left Front Burner
Control Knob
(23,000 BTU)
Left Oven
Temperature
Control Knob
Right Rear Burner
Control Knob
(15,000 BTU)
Right Front Burner
Control Knob
(23,000 BTU)
Right Oven
Temperature
Control Knob
Convection
Fan
Switch
4
1
2
6
5
7
Center Left Rear Burner
Control Knob
(15,000 BTU)
Center Left Front Burner
Control Knob
(23,000 BTU)
Center Right Rear Burner
Control Knob
(15,000 BTU)
Center Right
Front Burner
Control Knob
(23,000 BTU)
3
8
9
1. Front 23,000 BTU burners
2. Rear 15,000 BTU burners
3. Rear 8.000 BTU burner
4. Island trim
5. Identification plate (under control panel)
6. 30” Oven - Three TruGlide racks/Six rack
positions
7. 18” Oven - Two standard tilt-proof rack/Six rack
positions
8. Night Light Switch (under bullnose)
9. Lighted Bezel Switch (under bullnose)

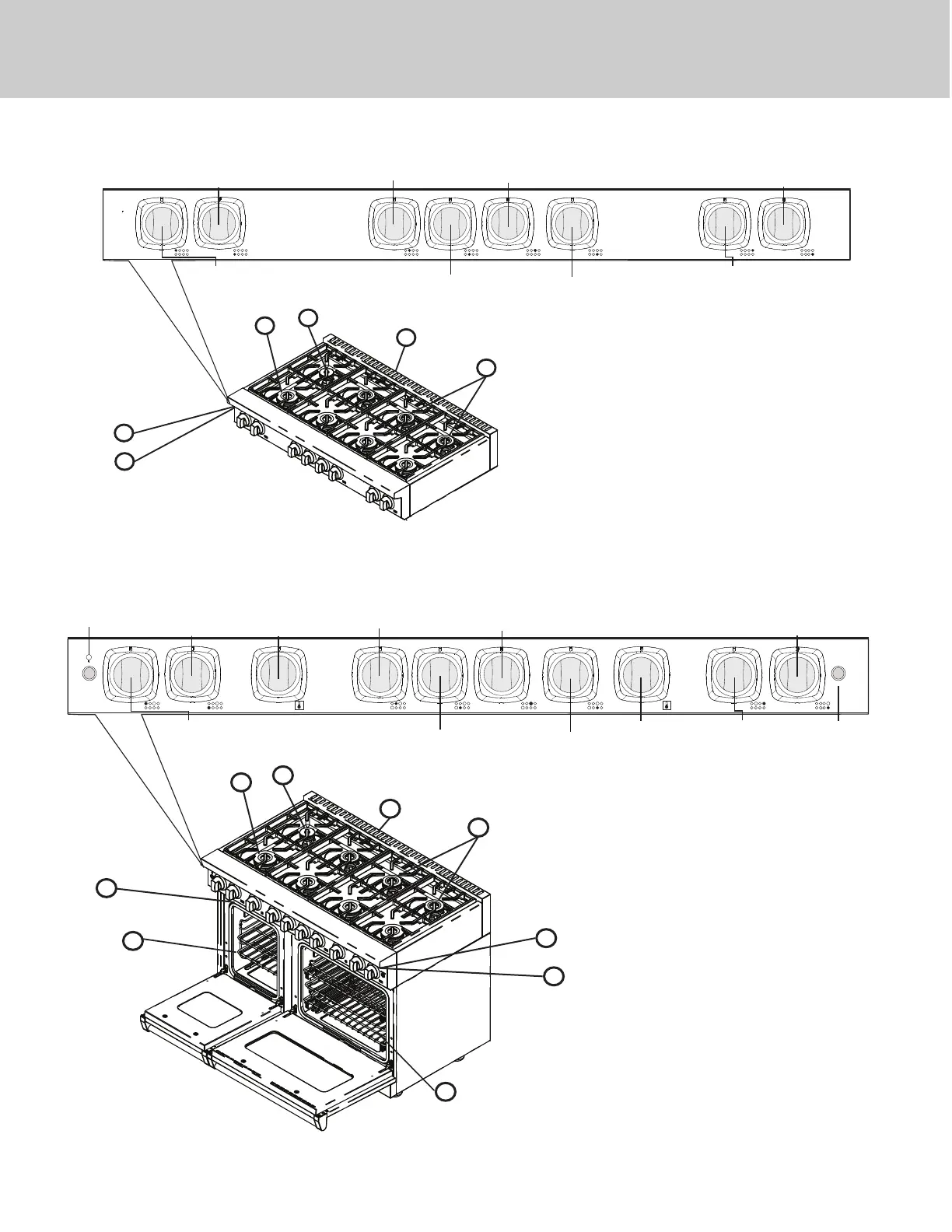

Range Features (VGR Gas Range)
Rangetop Features (VRT)
Left Rear Burner
Control Knob
(8,000 BTU)
Left Front Burner
Control Knob
(23,000 BTU)
Right Rear Burner
Control Knob
(15,000 BTU)
Right Front Burner
Control Knob
(23,000 BTU)
Center Left Rear Burner
Control Knob
(15,000 BTU)
Center Right Rear Burner
Control Knob
(15,000 BTU)
Center Right
Front Burner
Control Knob
(23,000 BTU)
3
1
2
5
4
Center Left
Front Burner
Control Knob
(23,000 BTU)
6
1. Front 23,000 BTU burners
2. Rear 15,000 BTU burners
3. Rear 8.000 BTU burner
4. Island trim
5. Night Light Switch (under bullnose)
6. Lighted Bezel Switch (under bullnose)
