Optional Custom Front Panels - Dimensions
35-3/4” (90.8 cm)
35-3/4” (90.8 cm)
35-3/4” (90.8 cm)
50-1/2”
(128.3 cm)
12-1/8”
(30.8 cm)
17-1/16”
(43.3 cm)
3/4” (1.9 cm)
3/4” (1.9 cm)
3/4” (1.9 cm)
Note: Each panel overlay must be dry, solid, straight one-piece panels. The use of multiple panel pieces to achieve
the dimensions is not recommended.
Maximum panel weight:
Refrigerator door panel - 39 lbs (17.6 kg)
Top Freezer drawer panel - 10 lbs (4.5 kg)
Bottom Freezer drawer panel - 13 lbs (5.9 kg)
35-1/16” (89.1)
11/32”
(.87 cm)
6-31/32”
(17.7 cm)
6-15/16”
(17.6 cm)
16-15/16”
(43.0 cm)
18-15/16”
(48.1 cm)
28-15/16”
(73.5 cm)
11/32”
(.87 cm)
1-5/32” (2.9 cm)
2-9/16” (6.5 cm)
7-1/16” (17.9 cm)
35-1/16” (89.1)
35-1/16” (89.1)
11/32”
(.87 cm)
2-7/32 (5.6 cm)
2-1/4” (5.7 cm)
5-15/32” (13.9 cm)
8-23/32” (22.1cm)
12-7/32 (31.0cm)
5-5/64”
(12.9 cm)
11/32”
(0.87 cm)
11/32”
(0.87 cm)
1-11/64”
(3.4 cm)
11/32”
(0.87 cm)
7/8”
(2.2 cm)

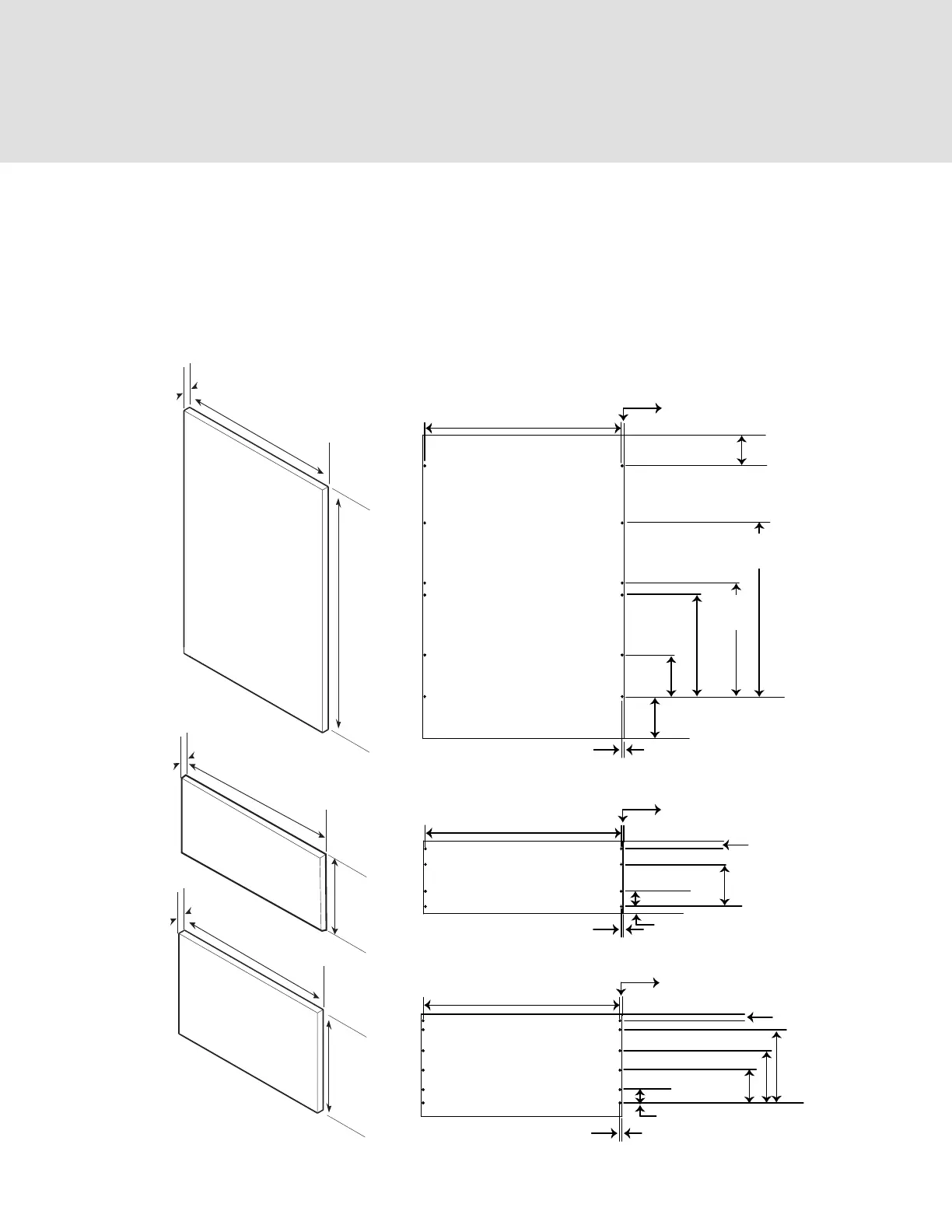

Custom Panel - hole locations
