VIKING RANGE

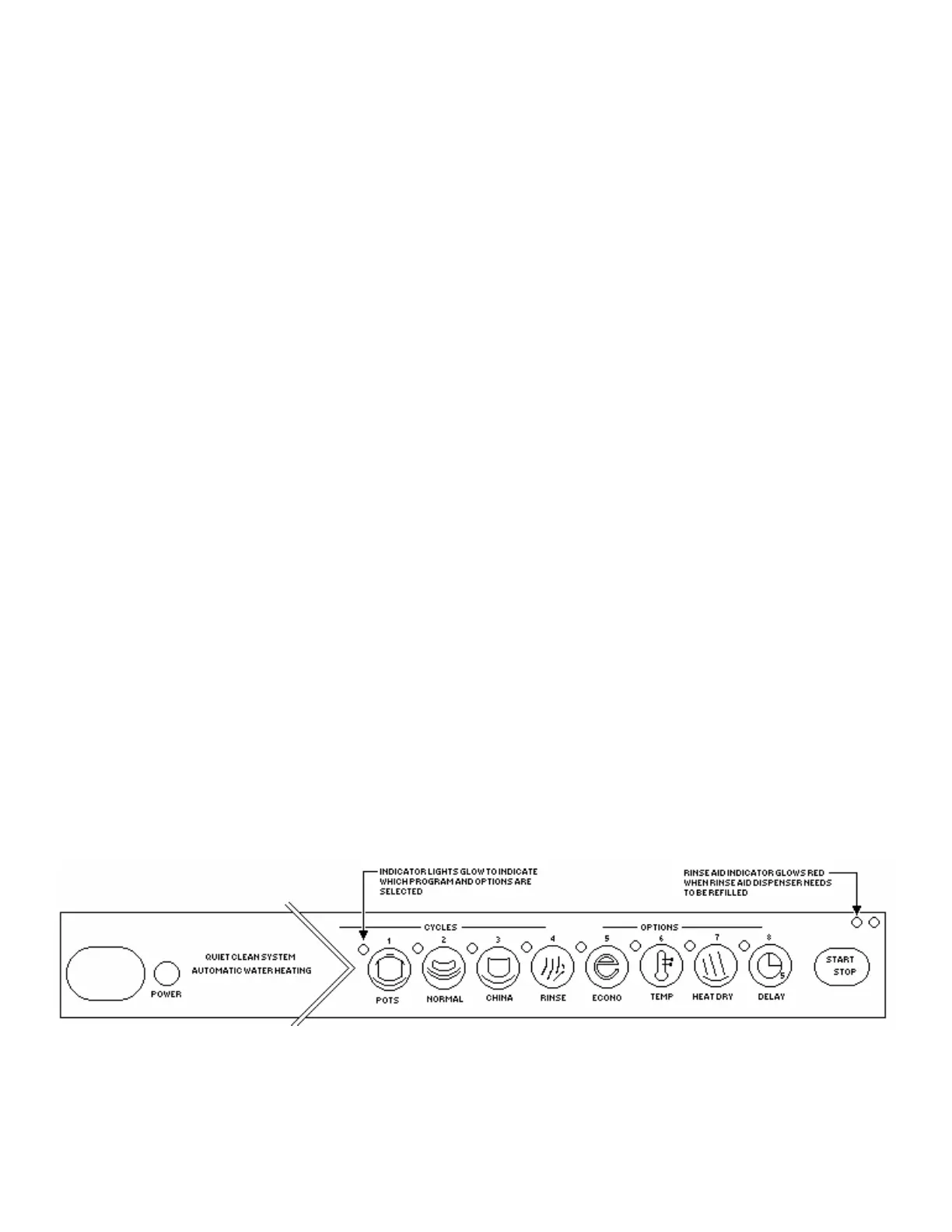

DESIGNER SERIES DFUD140 FAULT CODES
FAULT TRACING: PRESS
TEMPERATURE FIVE TIMES AND THEN:
1) PRESS QUICK WASH ONCE FOR
INLET VALVE.
2) PRESS RINSE AND HOLD ONCE
FOR SOAP DISPENSER.
3) PRESS ECONOMY ONCE FOR
HEATER.
4) PRESS HEATED DRY FOR
CIRCULATION PUMP.
5) PRESS HEATED DRY FOR DRAIN
PUMP.
6) PRESS DELAY START ONCE FOR
FAN MOTOR.
INLET TIME ADJUSTMENT: PRESS
ECONOMY
FIVE TIMES AND THEN:
1) PRESS QUICK WASH TO GET
NORMAL FILL TIME.
2) PRESS RINSE AND HOLD WASH
TO INCREASE 25%.
3) PRESS ECONOMY TO INCREASE
50%.
4) PRESS TEMPERATURE TO
INCREASE 100%.
5) PRESS HEATED DRY TO
INCREASE 150%.
6) PRESS DELAY START TO
INCREASE 200%.
DRAIN TIME ADJUSTMENT: PRESS
QUICK WASH FIVE TIMES AND THEN:
1) PRESS QUICK WASH ONCE FOR A
20 SECOND DRAIN.
2) PRESS RINSE AND HOLD ONCE
FOR A 25 SECOND DRAIN.
3) PRESS ECONOMY ONCE FOR A 35
SECOND DRAIN.
4) PRESS TEMPERATURE ONCE FOR
A 45 SECOND DRAIN.
5) PRESS HEATED DRY ONCE FOR A
85 SECOND DRAIN.
PROTECTED START PROGRAM: PRESS
RINSE AND HOLD FIVE TIMES AND
THEN:
1) PRESS ECONOMY WASH ONCE
FOR PROTECTED START.
2) PRESS RINSE AND HOLD ONCE
FOR NORMAL START.
