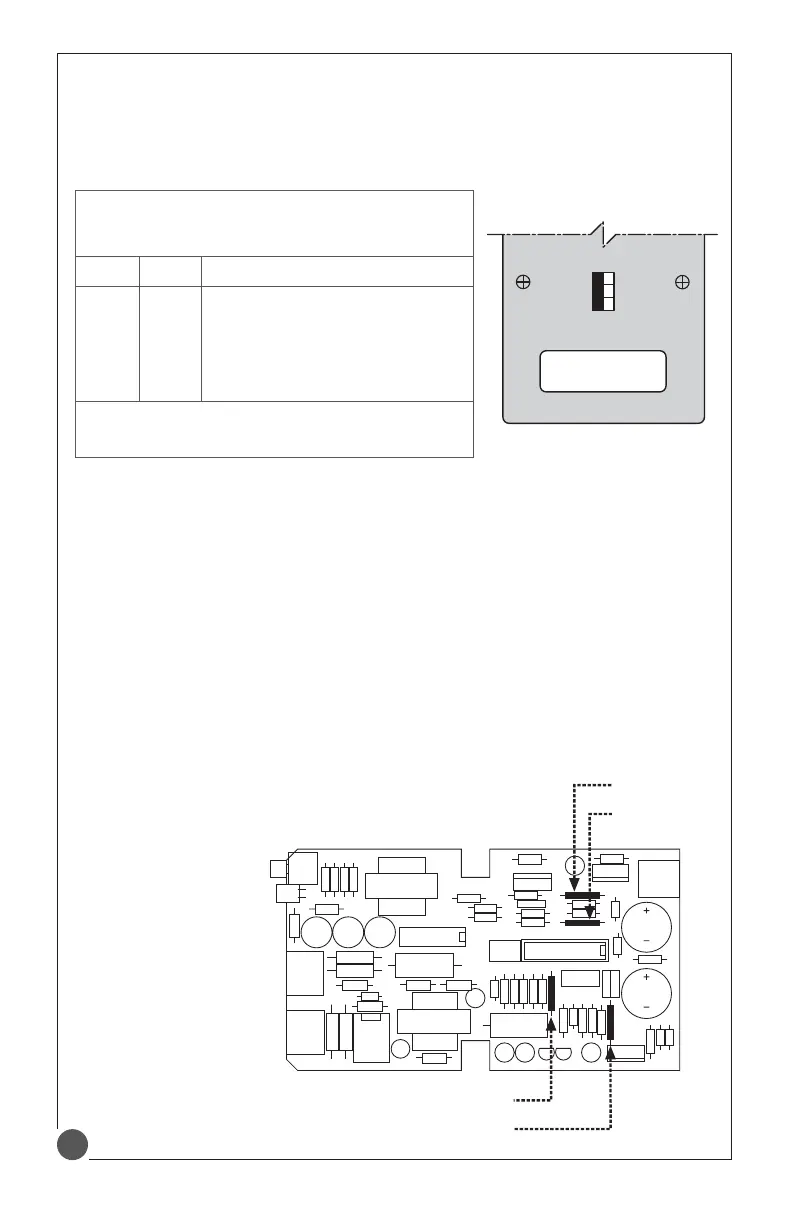

There are different features available by changing the switch settings
or by clipping the internal jumpers (see below). The DLE-200B is
shipped factory set for standard applications with all features enabled.
By CLIPPING the internal jumpers on the circuit board of the
DLE-200B,the unit can:
Jumper 1:Eliminate the CPC signal.
Jumper 2:Enable only 5 rings (normally the DLB-200B continues to
ring the second device until answered).
Jumper 3:Convert the unit to a ONE-way ringdown circuit. Rings
from Device 1 to Device 2 only.
Jumper 4:Eliminates the two seconds of dial tone, causing the other
device to begin ringing immediately.
Caution:
Personnel and
work area should
be grounded and
power removed
before handling
the circuit board.
Switch Settings for Distinctive
Ringing
SW-1 SW-2 RINGING CADENCE
ON ON LONG, LONG
OFF ON SHORT, SHORT, LONG
ON OFF SHORT, LONG, SHORT
OFF OFF 2 SECOND ON, 4 SECOND OFF
Switch #3 attenuates audio volume between devices by 9dB
when in the “ON” position.
Bottom View
VIKING LABEL
ON
OFF
Switch 1
Switch 2
Switch 3
2
JP2
JP1
JP4
JP3
