Viking FXI-1 - H. Telephone Line Powered Ring Trip Paging and Loud Ringing

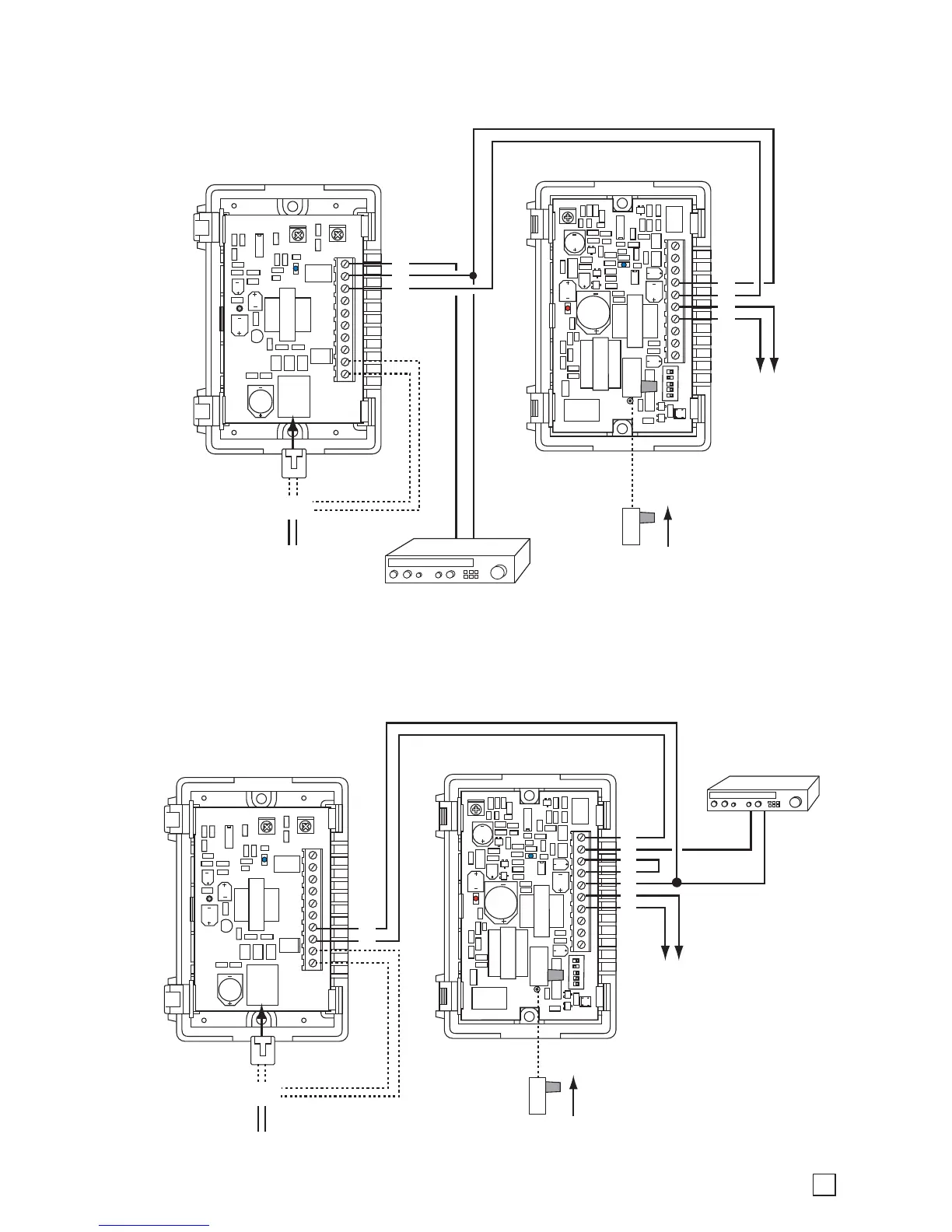

2. Paging as Priority
Internal View of the K-600F
OR
Incoming
Ringing Line
To Paging Amplifier
Input (600 Ohm)
Internal View of the FXI-1
4
3
To FXS
Paging
Line Input
10
9
8
7
6
5
4
Talk Battery
Switch
FXS
5
1. Loud Ringing as Priority
H. Telephone Line Powered Ring Trip Paging and Loud Ringing
Internal View of the K-600F
OR
To Paging Amplifier
Input (600 Ohm)
To FXS
Paging
Line Input
Internal View of the FXI-1
7
6
5
4
10
9
8
Talk Battery
Switch
FXS
Incoming
Ringing Line
