TECHNICAL DATA
2” MODEL G-2000 DRY VALVE
RISER ASSEMBLY
Page 3 of 13
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
Telephone: 269-945-9501 Technical Services: 877-384-5464 Fax: 269-818-1680 Email: techsvcs@vikingcorp.com
Visit the Viking website for the latest edition of this technical data page www.vikinggroupinc.com.
Form No. F_011110 17.04.27 Rev 17.1
Model A-1
Differential
Valve
Air Pressure
Gauge & Valve
Flow Test
Valve
Check
Valve
Supply
Pressure
Gauge & Valve
PORV
Prime Pressure
Gauge & Valve
Main
Drain
Flow
Test
Valve
Supply Pressure
Gauge & Valve
Drip
Cup
Drip
Check
PORV
Air Pressure
Gauge & Valve
Prime Pressure
Gauge & Valve
Optional
Accelerator
Connection
Air Supply
Connection
Optional
Accelerator
Connection
Air Supply
Connection
Air Supervisory
Switch
Control Valve
Air Supervisory
Switch
Waterflow
Pressure
Switch
Prime
Valve
Strainer
Waterflow
Pressure
Switch
Check Valve
Check
Valve

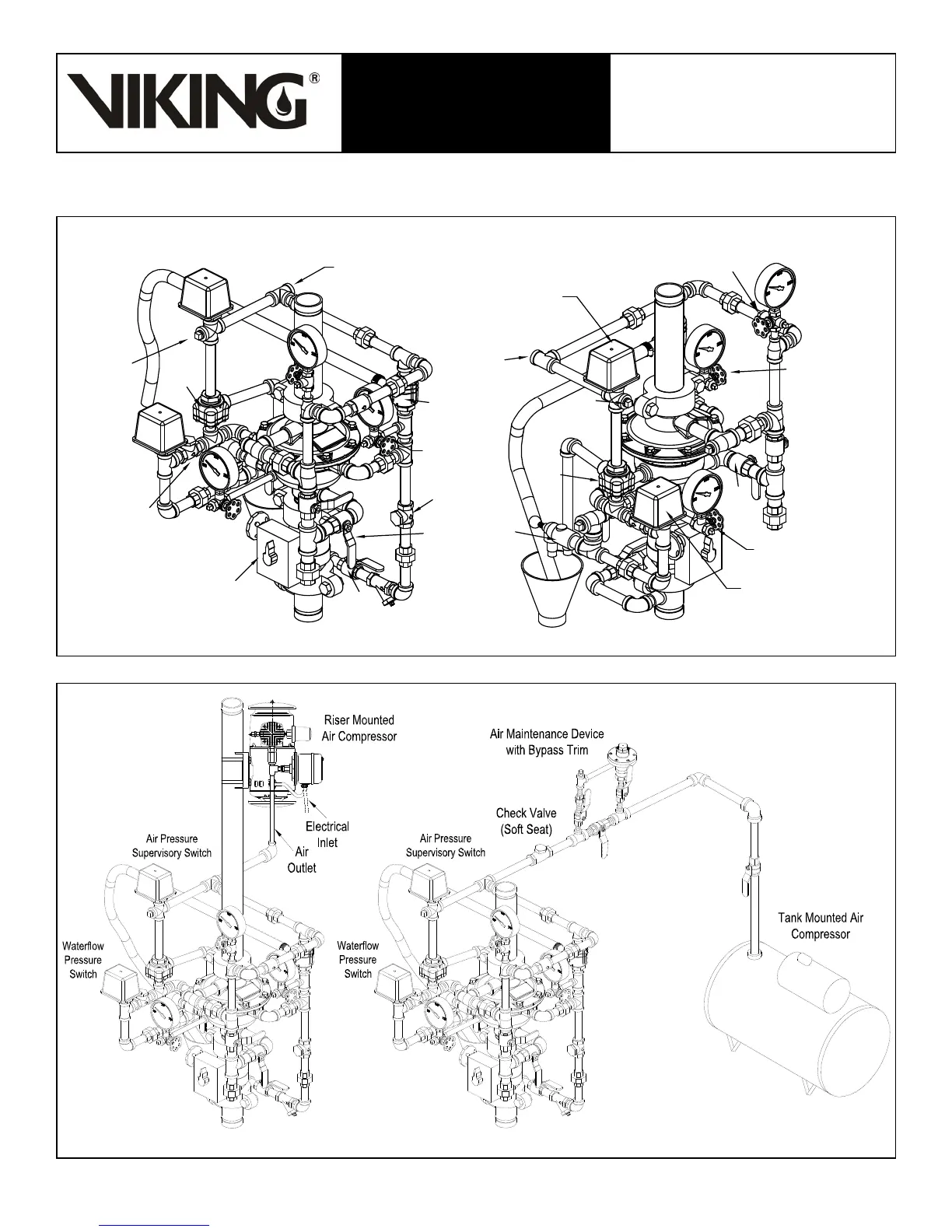

Figure 1 - Trim Components
Figure 2 - Air Supply Options
