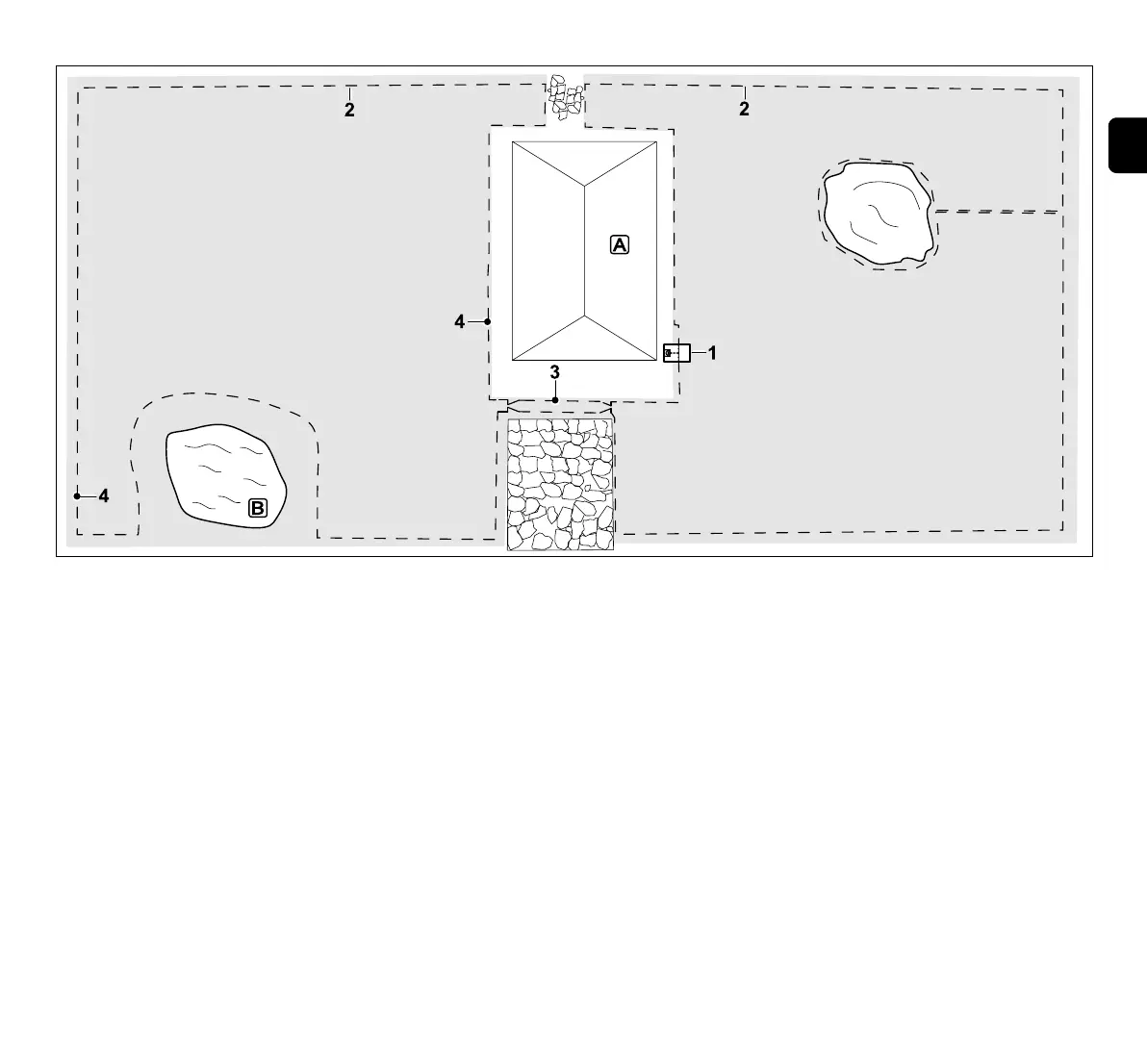

Divided mowing area with a pond and a
free-standing tree
Docking station:
Location (1) directly next to the house A
No-go area:
Installation around the free-standing tree,
based on a linking section installed at right
angles to the edge.
Pond:
For safety reasons (specified wire
clearance) the perimeter wire (2) is routed
around the pond B.
Wire clearances: (Ö 11.5)
Clearance to edge: 22 cm
Clearance to the obstacle that can be
travelled on: 0cm
Around the tree: 24 cm
Clearance to the pond: 100 cm
Confined area:
Installation of a corridor (3). Wire
clearance: 22 cm (Ö 11.10)
Programming:
Define the total size of the mowing area,
program two starting points (4) (close to
the docking station and in the contorted
corner near the pond) (Ö 10.15)
Particularities:
Unmown areas, e.g. B around the pond
must be mown manually on a regular basis
or cut using a suitable lawn trimmer.
