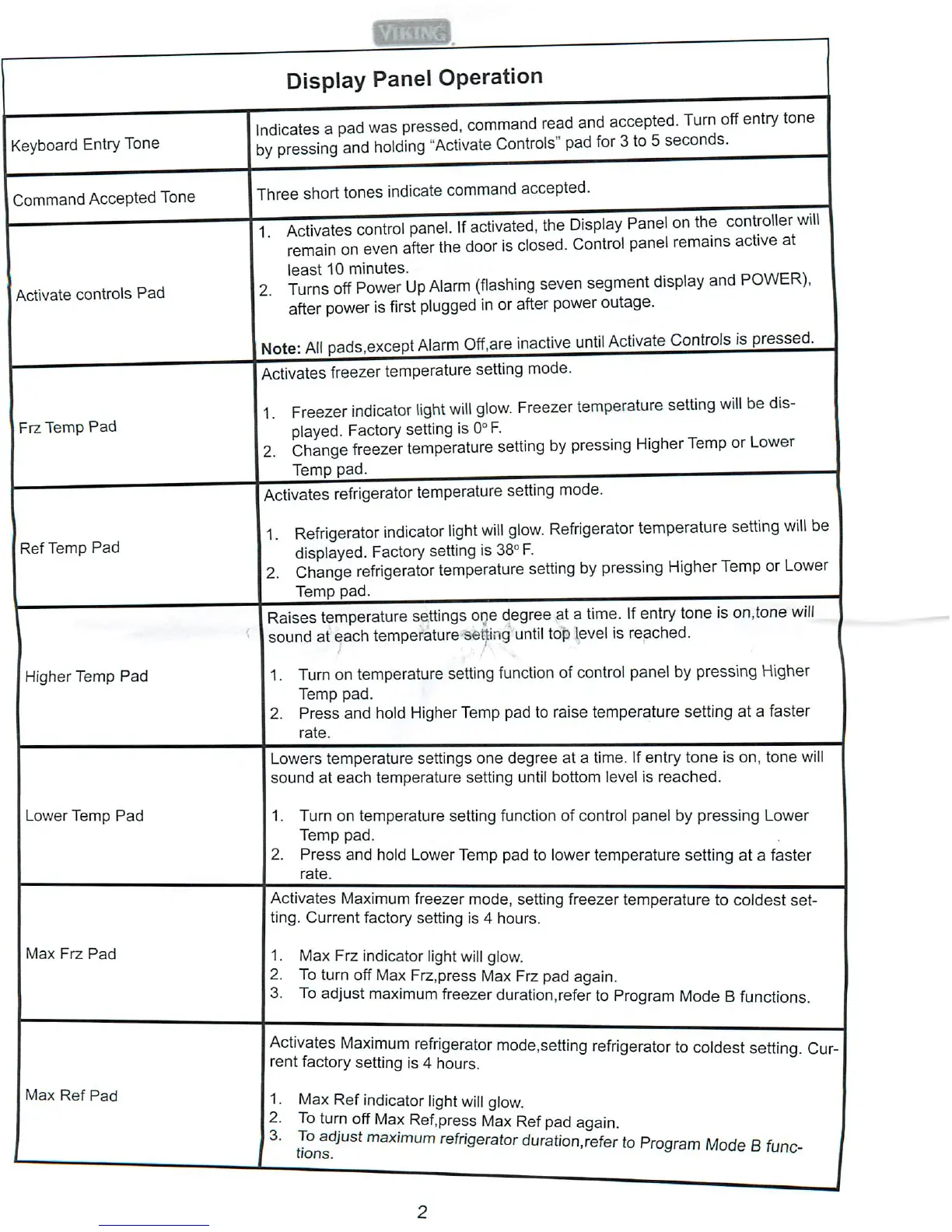

Viking VCSB5481 Series - Display Panel Operation

Keyboard Entry Tone
Command Accepted Tone
Activate controls Pad
Higher Temp Pad
Lower Temp Pad
Max Frz Pad
Max Ref Pad
Display Panel Operation
Indicates a pad was pressed, command read and accepted. Turn off entry tone
by pressing and holding "Activate Controls" pad for 3 to 5 seconds.
Threeshorttones indicate command accepted.
1 Activates control panel. If activated, the Display Panel on the controller will
remain on even after the door is closed. Control panel remains active at
least 10 minutes. jnA..,cm
2. Turns off Power Up Alarm (flashing seven segment display and POWER),
after power is first plugged in or after power outage.
Note: All pads.except Alarm Off,are inactive until Activate Controls is pressed.
Activates freezer temperature settingmode.
1. Freezer indicator light will glow. Freezer temperature setting will be dis
played. Factory setting is 0°F.
2. Change freezer temperature setting by pressing Higher Temp or Lower
Temp pad.
Activates refrigerator temperature setting mode.
1. Refrigerator indicator light will glow. Refrigerator temperature setting will be
displayed. Factory setting is 38° F.
2. Change refrigerator temperature setting by pressing Higher Temp or Lower
Temp pad.
Raises temperature settings one degree ata time. If entry toneis on,tone will
sound at each temperature setting until top level is reached.
1.
Turn on temperature setting function of control panel by pressing Higher
Temp pad.
2. Press and hold HigherTemp pad to raise temperature setting at a faster
rate.
Lowers temperature settings one degree at a time. Ifentry tone is on, tone wil
sound at each temperature setting until bottom level is reached.
1. Turn on temperature setting function of control panel by pressing Lower
Temp pad.
2. Press and hold Lower Temp pad to lower temperature setting at a faster
rate.
Activates Maximum freezer mode, setting freezer temperature to coldest set
ting. Current factory setting is 4 hours.
1. Max Frz indicator light will glow.
2. To turn off Max Frz.press Max Frz pad again.
3. Toadjust maximum freezer duration,referto Program Mode Bfunctions.
Activates Maximum refrigerator mode.setting refrigerator to coldest setting. Cur
rent factory setting is 4 hours.
1. Max Ref indicator light will glow.
2. To turn off Max Ref.press Max Ref pad again.
3 rIonsdJUSt max'mum refn'9erator duration,refer to Program Mode B func-
