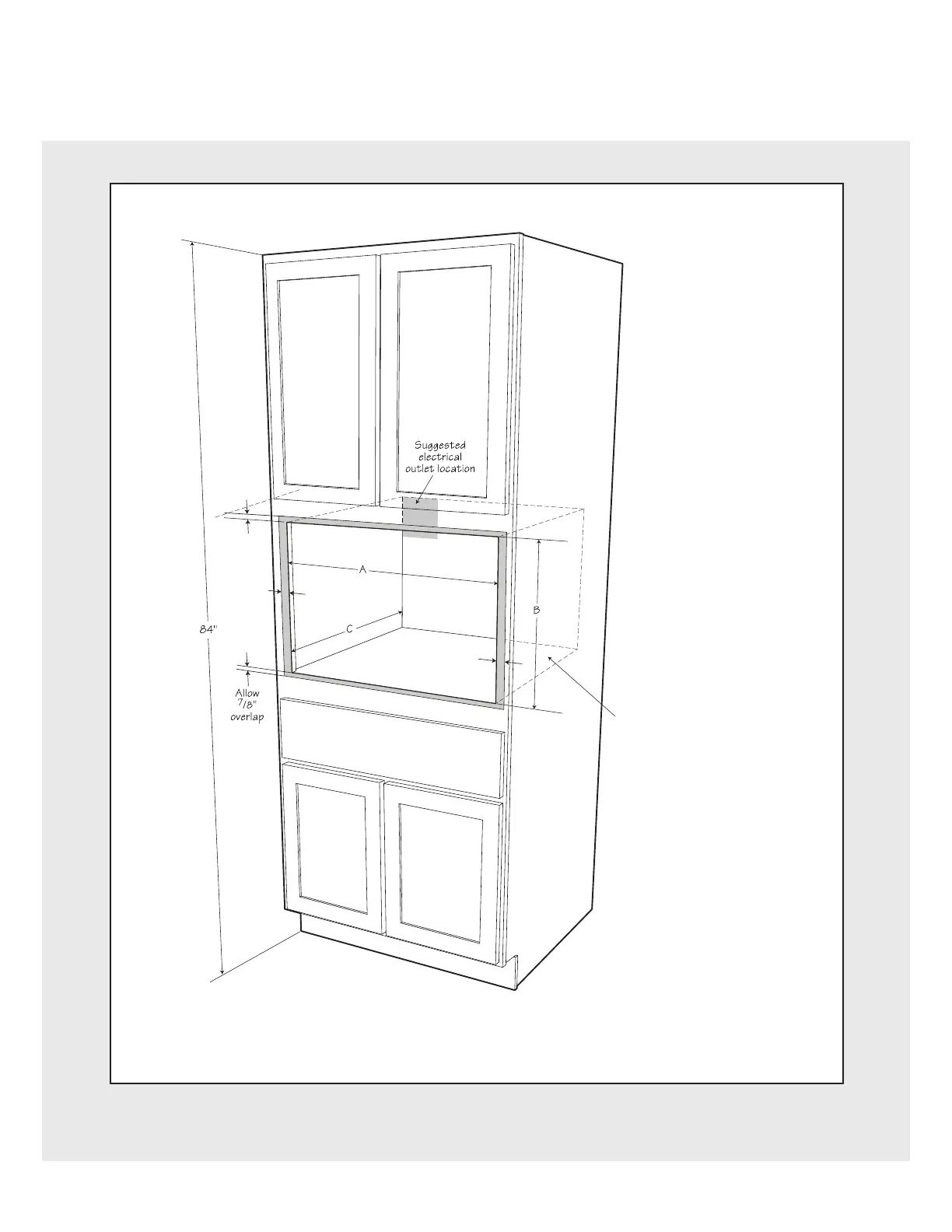

Clearances and Dimensions for Standard Surface Mount
A. 22
1
/4" cutout
B.
17
5
/8" cutout
C. 23
1
/2" min. depth
Note: Platform
must be able to
support 125 lbs.
Allow
3
5
/8"
overlap
Allow
3
/8"
overlap
Allow
3
5
/8"
overlap
Figure 2
