Installation Hardware

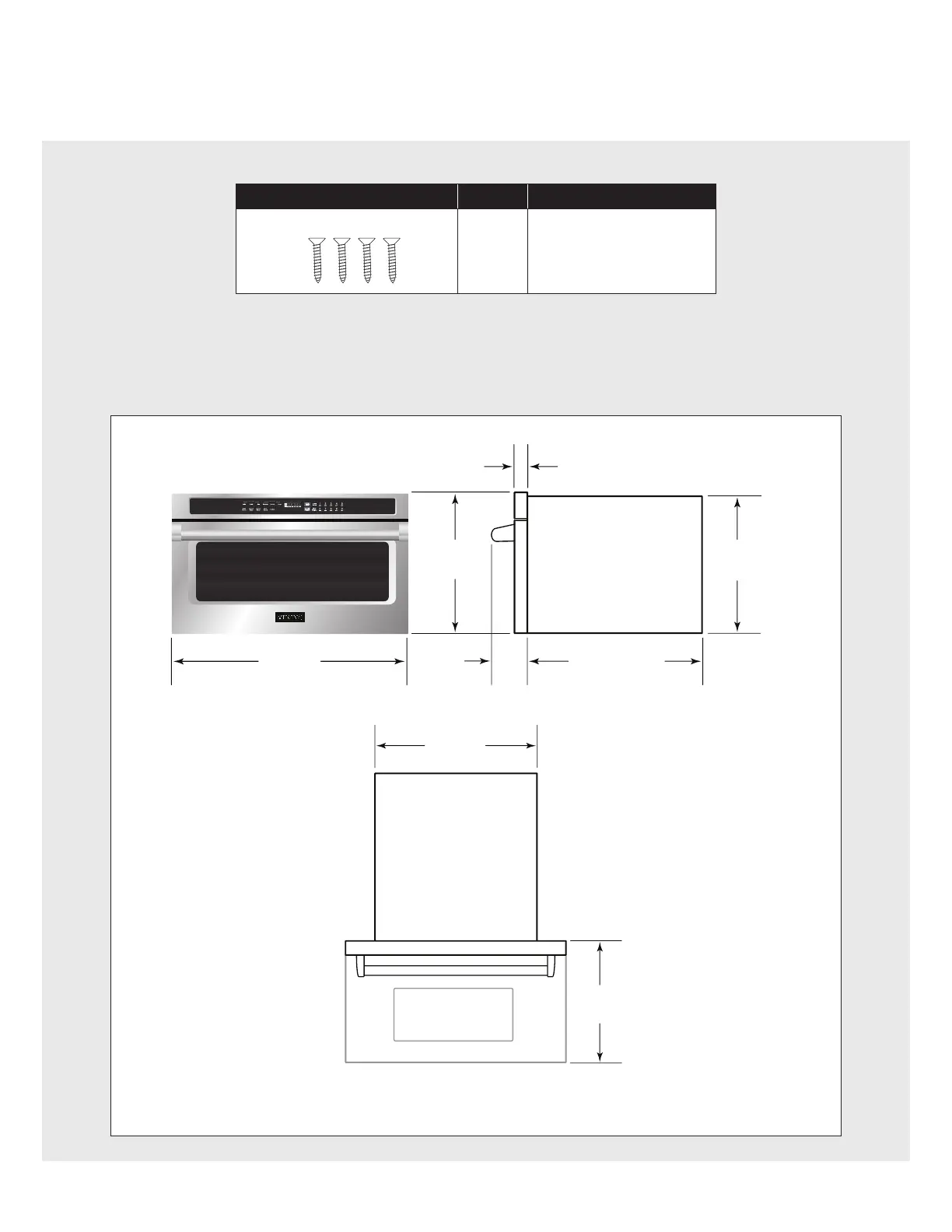

Oven Measurements
NAME QTY PART CODE
Mounting Screws 4 LANGTB407MRP0
29-1/2”
(749.4 mm)
4-3/16”
(106.9 mm)
21-1/4” (540.1 mm)
BEHIND FRAME
17-1/2”
(446.0 mm)
17-7/8”
(454.0 mm)
1-29/32”
(48.8 mm)
21-3/16”
(538.0 mm)
14-3/16”
(360.0 mm)
OPEN
OVEN DOOR
Figure 1
