Villager VBV 230 E - Page 27

8
Villager
VBV 230 E (GB)
Fig 6
Fig 7
Screw
Screw
Fig 8

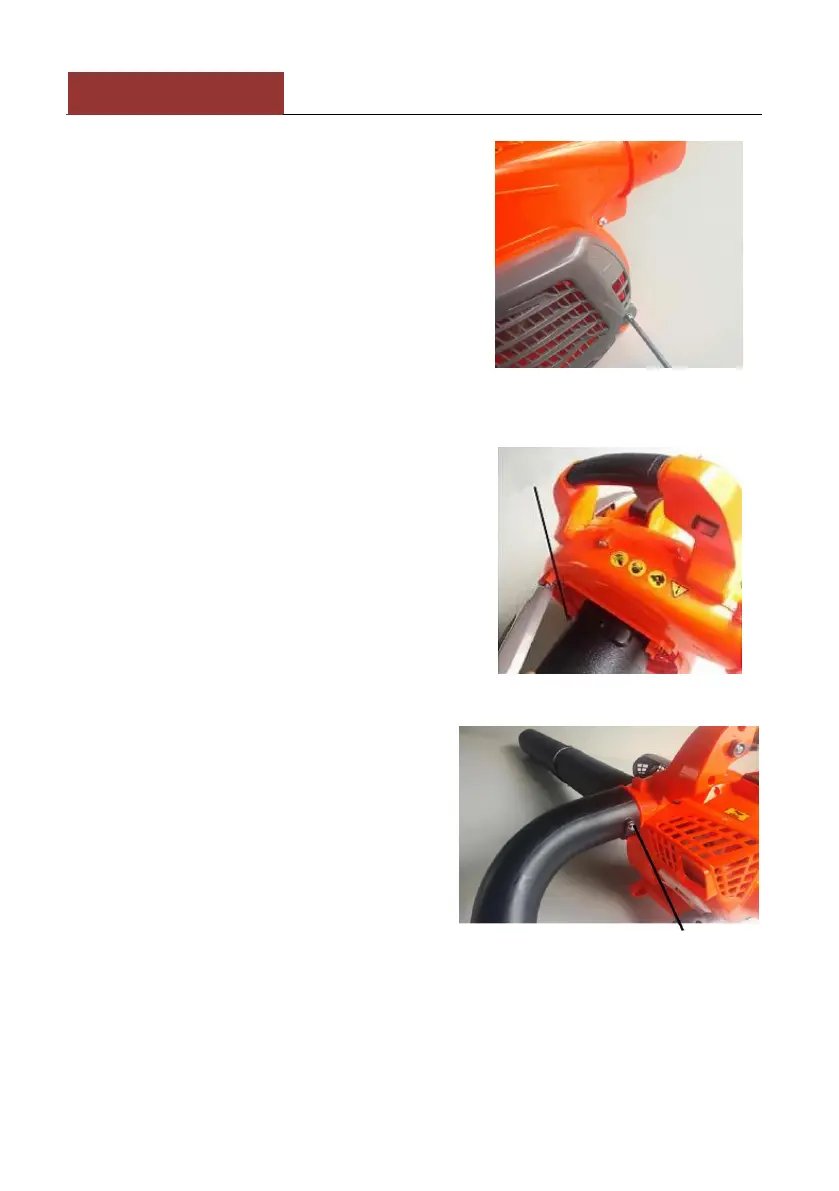

ASSEMBLING THE VACUUMS
1. Loosen the Cage Screw and pull down the
Cage(Fig.6).
2. Install vacuum attachments in sequence
shown, aligning the grooves on the nozzles with
the pegs. Slide the nozzles clockwise onto the
pegs, Tighten the screw in place to secure (Fig.7).
3. Rotate the connector pipe clockwise to
lock, the arrowhead on the connector pipe
should be on the same line with the volute
case. Tighten the screw in place to secure
(Fig.8).
