Bagian Produk (2/3)
Functional cursor
Show time
Lock indicator
Low battery indicator
“
TIMER ACTIVE” indicator
Speaker on/off indicator
“ ” indicator
“ ” indicator
Number of shots

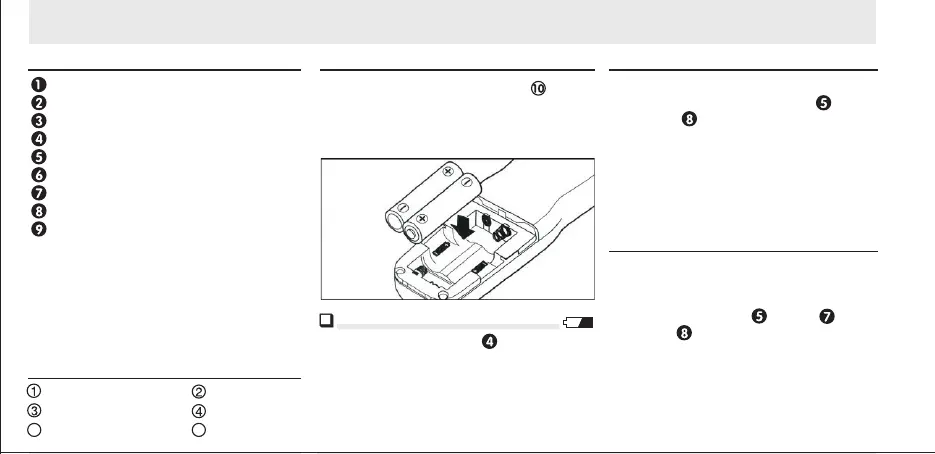

Slide the battery-chamber cover ( ) from
the back of the JY-710TX and insert two
AAA 1.5V LR03 alkaline batteries (available
separately) as shown.
The low battery indicator( )will blink when
the batteries are low. Please replace the
battery.
When replacing batteries:
1.Check that the “ ” ( ) and
“ ”( )indicators are not displayed.
2.Turn the camera off and disconnect the
JY-710
3.Remove the batteries.
4.Wait until the control panel has gone out
and insert new batteries.
The JY-710 is not equipped with an off switch.
To reduce the drain on the batteries when the
JY-710 is not in use,end shooting and check
that the “ ”( ), “ ”( ),
“ ” ( ) indicators are not displayed.
The drain on the batteries increases when
these indicators are flashing.
*The illustration inside the front cover shows
the control panel with all elements lit. In the
other illustrations throughout this manual,
elements relevant to the explanation in the
accompanying text are shown in black. Indi-
cators not mentioned in the text are shown
in gray.
5
shutter release cable shutter socket
channel switch status indicator
shutter release button power on/off switch
6
SET
RELEASE
TIMER ACTIVE
RELEASE
TIMER ACTIVE
SET
RELEASE
JY-710RX
Display panel*
Inserting batteries
Replacing batteries
When the JY-710 is not in use
