Vimar Arke Installer Manual

8
Pair of buttons for flat control with EnOcean module
Functionality
With the By-me control panel, each single button of the pair can be configured as an On/Off, dimmer switch, roller shade button or
scene control button.
For configuring the rocker push buttons with the EnOcean module, see par. “Managing Bus interface with EnOcean module” in the
By-me control panel manual.
Warning: When adding a button it is necessary for it to be inserted in the same group as the relay you want to control.
OPERATION AS AN ON/OFF BUTTON.
Pressing the top of the button sends an ON message to the group or groups where this button has been saved; afterwards an
actuator in the group will switch over. On the contrary, pressing the bottom of the button sends an OFF message to the group(s)
where this button has been saved.
OPERATION AS A DIMMER SWITCH
- Briefly pressing the top of the button: an ON message is sent to the group to which the button belongs.
- Pressing and holding the top of the button: sends a START brightness increase message while pressing the button and a STOP
message on releasing it.
- Briefly pressing the bottom of the button: an OFF message is sent to the group to which the button belongs.
- Pressing and holding the bottom of the button: sends a START brightness decrease message while pressing the button and a STOP
message on releasing it.

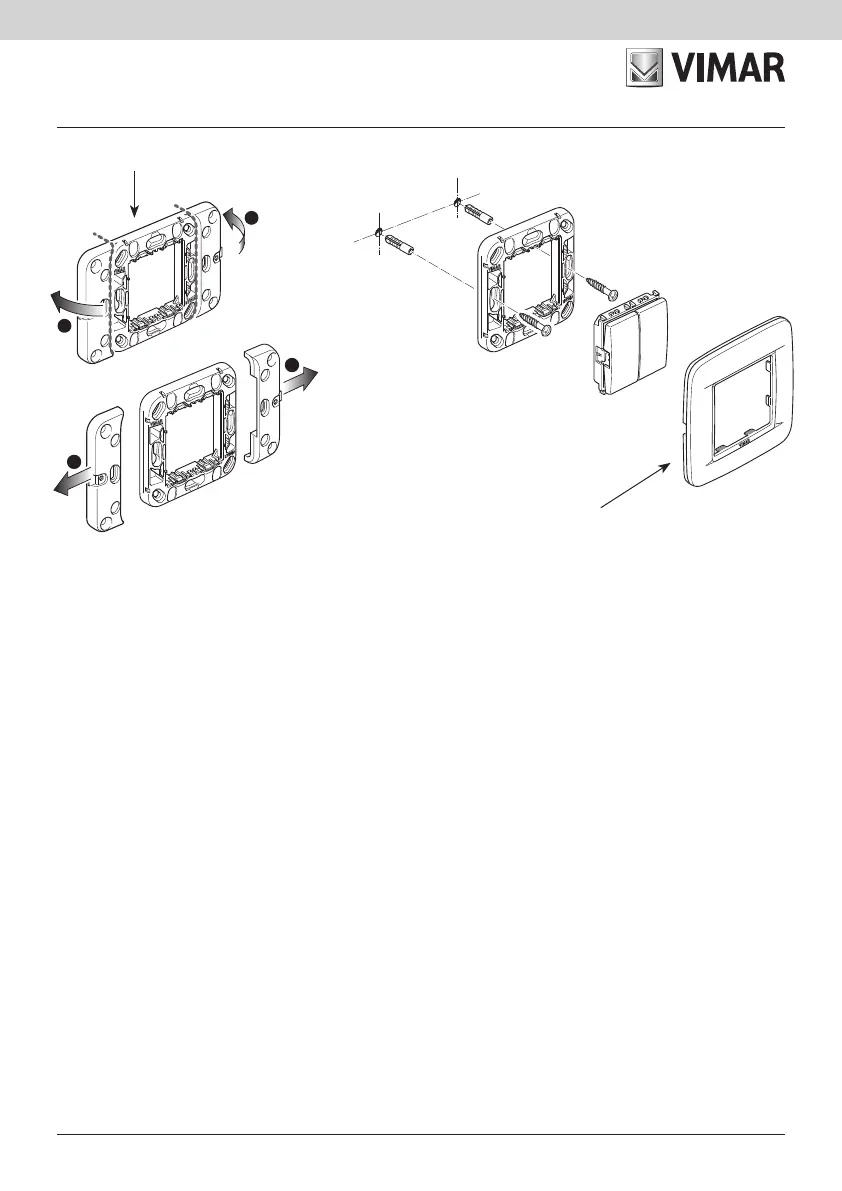

1
1
2
2
21507-20507-19507
Cover plate 21642.. - 20642.. - 20672.. - 19642.. - 19672.. - 14642..

Vimar Arke Specifications

General

Type	Switch
Range	Arke
Series	Arke
Brand	Vimar
Material	Thermoplastic
Color	Various
Current	16A
Protection Degree	IP20
Mounting	Flush
