Vimar ELVOX 13F4 Installer's Guide

38
EN IT
1
2
EXT+
EXT-
M
PA
X
VLED
B1
B2
S+
S-
F2
F1
SR
-L
+12V
M
M
CA

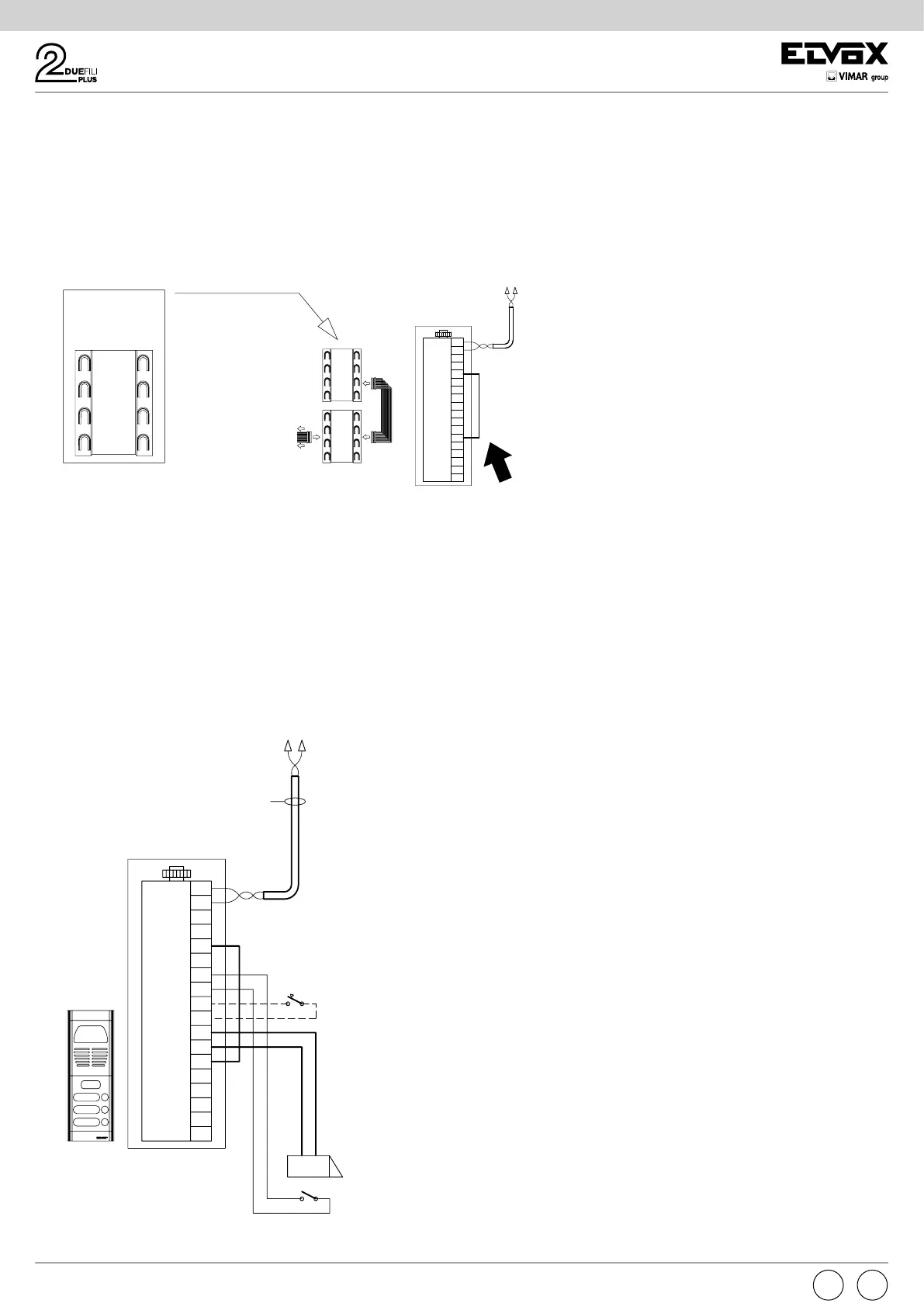

Variante / Version
Unità elettronica con moduli pulsanti supplementari (fino a 2 moduli art. 12TS o 1 art. 12TD)
Electronic unit with additional button modules (up to 2 modules art. 12TS or 1 module art. 12TD)
Modulo pulsanti
supplementari
Additional button
module
Collegamento VLED/+12
Connection VLED/+12
Variante / Version
Collegamento per segnalazione Porta/Cancello aperto
Wiring for Door/Gate open indication
C/D - Unità elettronica audio o video
L - Serratura elettrica 12 Vdc
P - Comando apriporta
P2 - Sensore porta aperta
X - Cavo twistato Due Fili Elvox
Montante
Cable riser
CA
M
M
+12V
-L
SR
F1
F2
S-
S+
B2
B1
VLED
X
PA
M
EXT-
EXT+
2
1
C/D
L
P2
P
Montante
Cable riser
x
C/D - Audio or video electronic unit
L - Electric lock 12 V DC
P - Door release control
P2 - Door open sensor
X - Elvox Due Fili twisted pair cable
