Vimar ELVOX K40517.R

47
K40517.R
40517

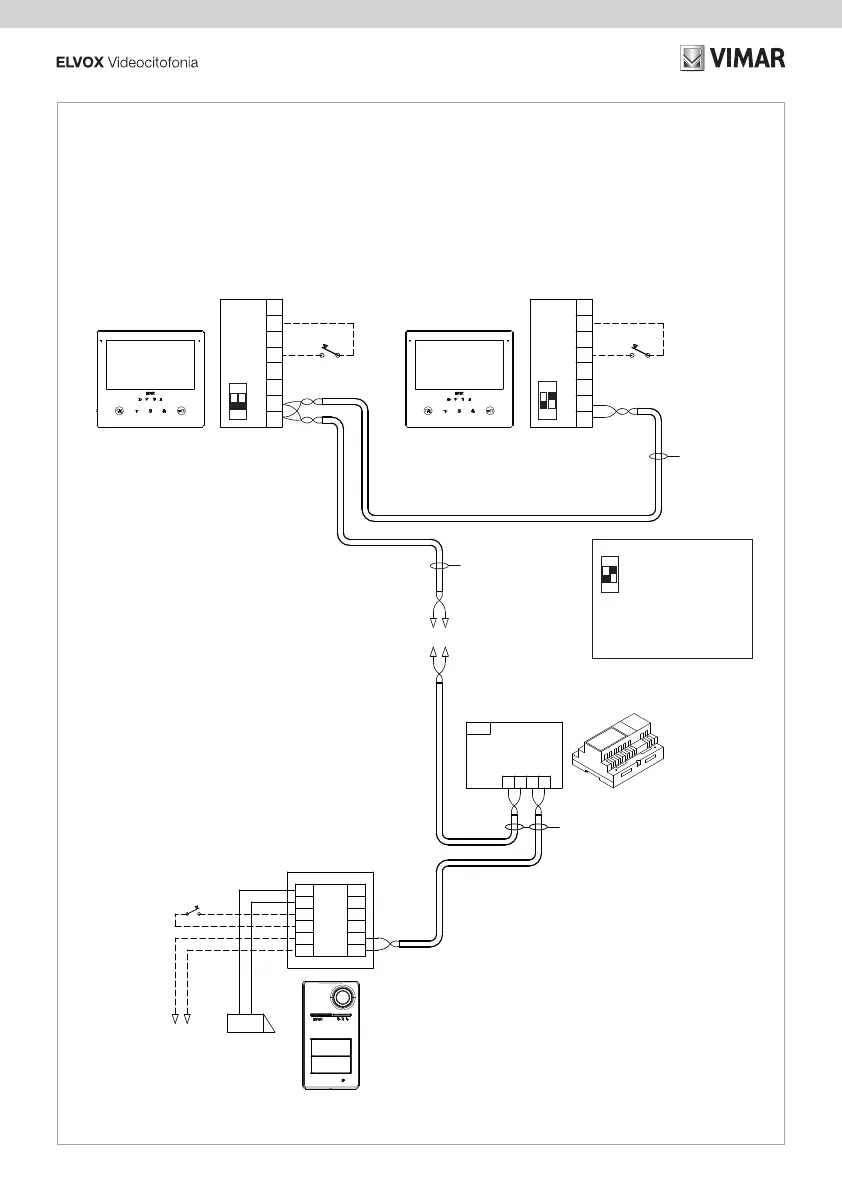

• Schema di collegamento impianto bifamiliare
• Two-family system connection diagram
• Schéma de connexion installation deux usagers
• Schaltbild einer Zweifamilienanlage
• Esquema de conexión de una instalación bifamiliar
• Esquema de ligação do sistema bifamiliar
 
     •
PRI
B22
1
B1
21
S-
CA/PA
MA
NO/NC
S+
C
V+
E+
E-
B1
B2
V-
C
F
D
E
E-
2
E+
1
FP
IN
M
CH
B
K
X
X
A
X
B
1 2
ON
B
K
A
1 2
ON
E-
2
E+
1
FP
IN
M
CH
M
CA
B1
B2
S-
S+
PRI
B22
1
B1
21
M
CA
B1
B2
S-
S+
PRI
B22
1
B1
21
2
1
FP
M
2
1
FP
M
B
12
ON
A
12
ON
2
1
FP
M
B
12
ON
Terminazione Bus (100 Ω)
Bus termination (100 Ω)
Terminaison Bus (100 Ω)
Bus-Abschluss (100 Ω)
Terminación Bus (100 Ω)
Terminação Bus (100 Ω)
Τερματισμός Bus (100 Ω)
( 100)  
Rete • Mains
Réseau • Netz
Red • Rede
Δίκτυο •

40170
40517
