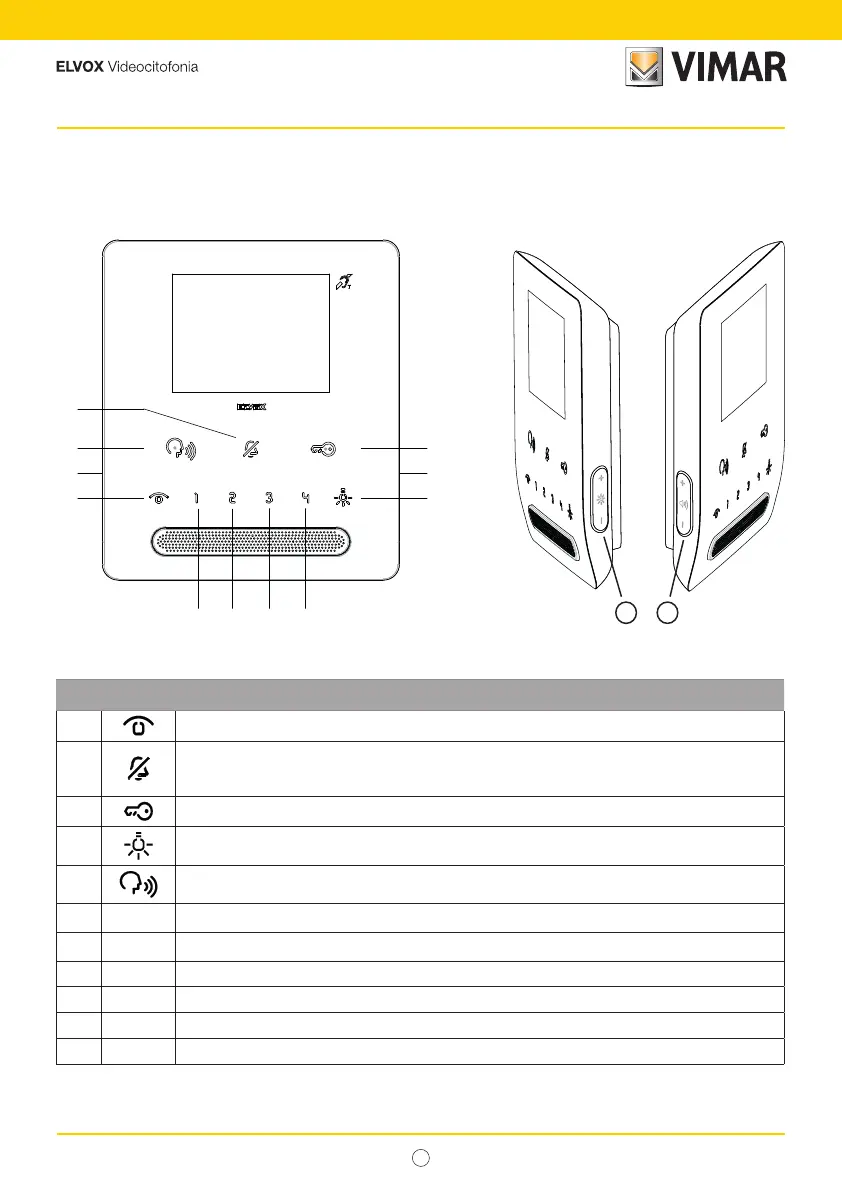

Key functions and status LEDs (Front view)
Keys (Default functions)
KEY DESCRIPTION
A
Self-start: it activates the main outdoor station (ID 1)
B
Ringtonemute: disables/enables the ringtone.
Ringtone mute: disables the ringtone during an incoming call. The ringtone is simultaneously also disabled
for subsequent calls
C
Lock release: It activates the lock of the calling Outdoor Station
D
Auxiliary 1: It activates the first relay of the Due Fili Plus system (Aux 1), stair lights function
F
Talk/listen
G Volume control, contrast
H Brightness Control
1
1
Auxiliary 2: It activates the second relay (Aux 2) of the Due Fili Plus system (*)
2
2
Free (*)
3
3
It sends an F1 control to Outdoor Stations (*)
4
4
It sends an F2 control to Outdoor Stations (*)
(*) the functions associated with the keys 1-2-3-4canbemodiedviaconguration,toperformotherauxiliaryfunctionsor
intercom calls.
H G
A D
C
B
F
G
H
1 2 3
4
The video entryphone can be operated using the touch keys described below.
