Vinotemp VC7S - Page 38

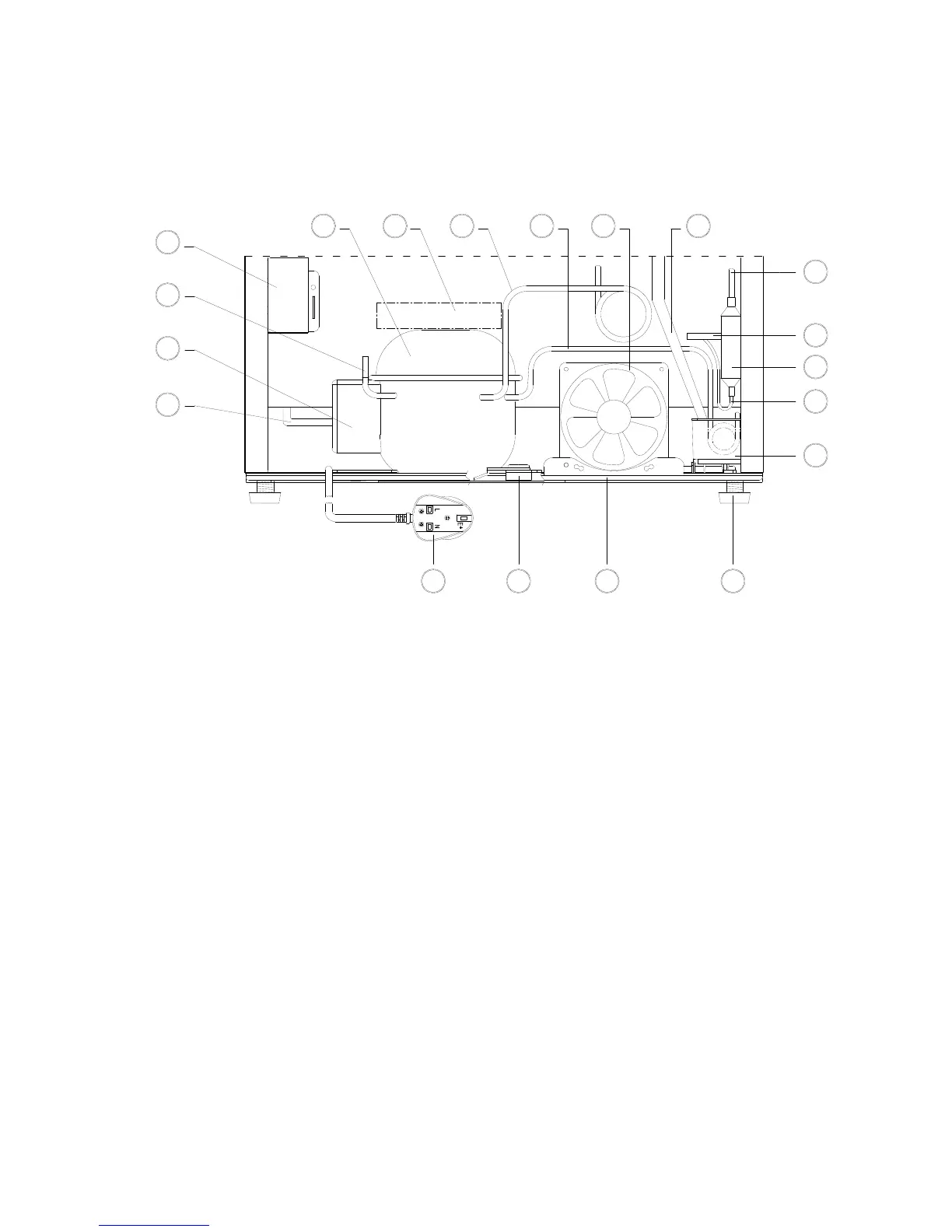

5. COMPRESSOR ROOM VIEW AND PARTS LIST
1
2
3
5
4
6
7
8
9
10
11
12
13
14
15161718
14
1. Joint of condenser outlet tubing and hot
pipe inlet tubing
2. Electrical Box of Compressor
3. Process Pipe
4. Electrical Box (Power PCB inside)
5. Compressor
6. Suction Pipe
7. Discharge Pipe
8. Condenser Fan Motor (Not available for
some models)
9. Drainage Hose
10. Outlet Tubing of Hot Pipe
11. Process Pipe
12. Filter Drier
13. Capillary
14. Water Drip Tray
15. Leveling Leg
16. Compressor Base
17. Compressor Leg
18.
Power Supply Cord with Plug
