cabinet. (Fig. 4)
7. Unscrew and transfer the lock bracket
○
13 to the opposite side of glass door. Then use the
crystal cover
○
12 included in the fittings to cover the three holes left after unscrewing the
lock bracket.(Only for models with lock on the ventilation grille) (Fig. 5)
8. Rotate the door 180° (No need for models with lock on the door) and relocate the door to the
designated position. Then screw the bottom hinge assembly on the left designated position
and tighten it after the door is leveled.
9. Transfer the handles & plugs to the opposite positions and then reassembly the ventilation
grilles if need.

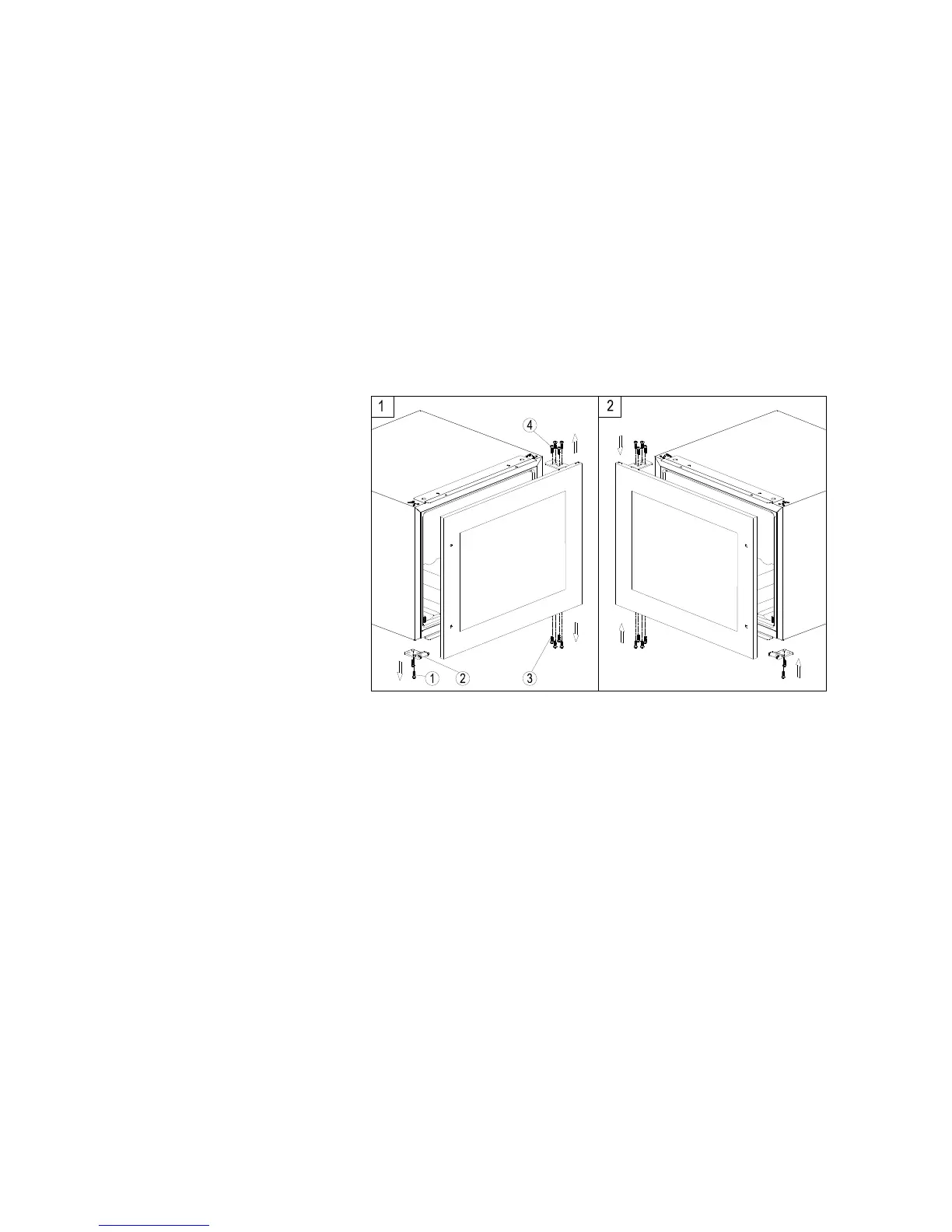

6.2 DESIGN 2 – For fully integrated models
1. Remove the glass door by unscrewing the eight lock screws
○
3 and
○
4 . Be careful to hold
the glass door firmly after removing the screws and place it on a padded surface to avoid the
risk of damage.
2. Unscrew and transfer the door supporter
○
2 to the opposite side.
3. Rotate the glass door 180°and refit the glass door to the opposite side. Then screw and
tighten it after the door is leveled.
