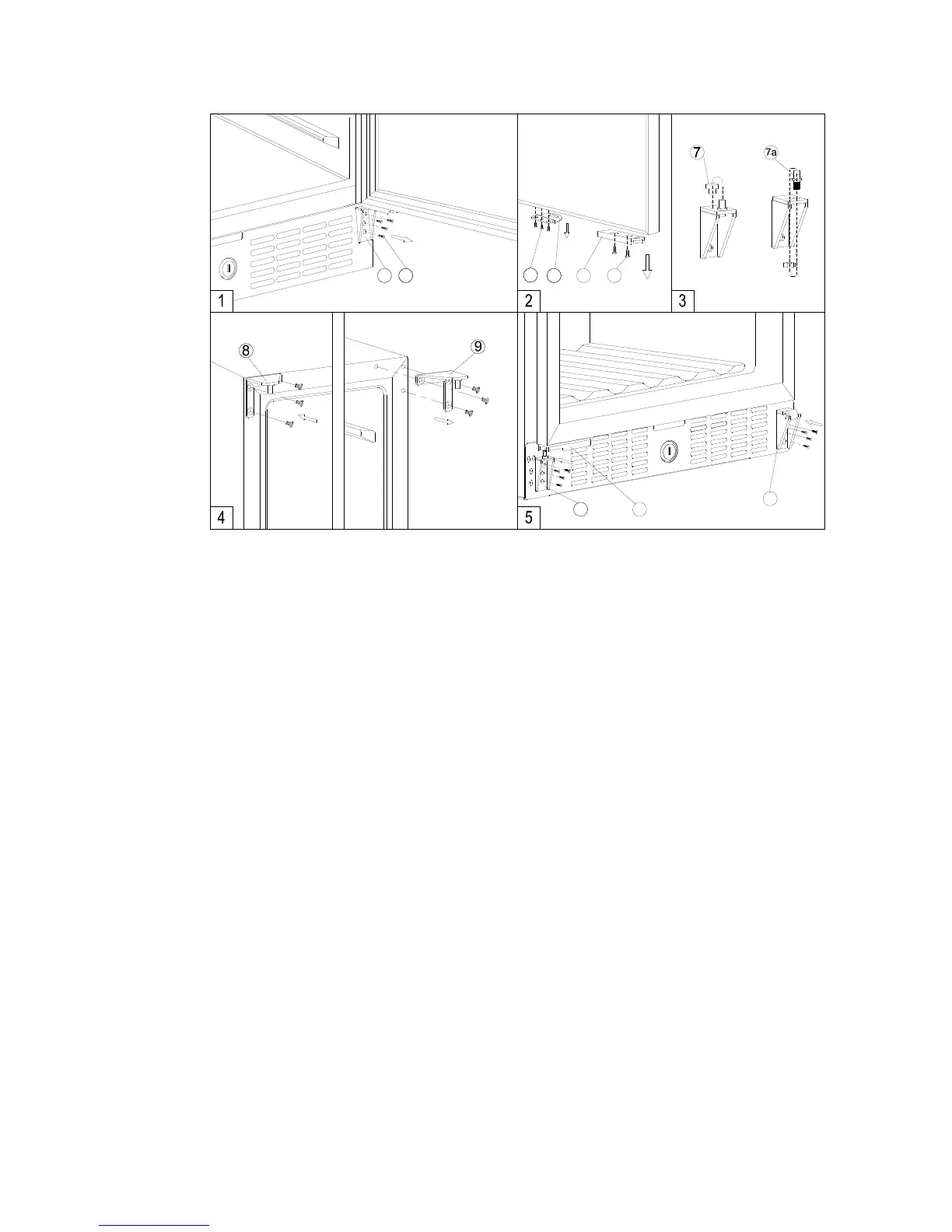

6.3 DESIGN 3 – For tall models
1
2
56
10
1 5
3
4
1. Remove the bottom hinge
○
1 by unscrewing the four lock screws
○
2 . Be careful to hold the
glass door firmly after removing the screws. (Fig. 1)
2. Gently pull down to remove the glass door from the right top hinge and place it on a padded
surface to avoid the risk of damage. Then remove the right top hinge
○
9 . (Fig. 4)
3. Pop out the cover caps on the left side of cabinet and use them to cover the screw holes on
the right hand side.
4. Screw the alternative left top hinge
○
8 , included in the fittings, on the left hand side of cabinet.
(Fig. 4)
5. Unscrew and transfer door supporter
○
10 to the opposite side. At the same time remove the
stopper pin
○
7 of bottom hinge to the opposite designated position or unscrew and transfer
the hinge pin
○
7a of bottom hinge to the opposite designated position. (Fig. 5 & 3)
6. Unscrew and transfer the door adapter
○
5 and lock bracket
○
4 to the top designated
position of glass door. (Fig. 2)
7. Rotate the door 180° and relocate the glass door to the designated position. Then screw the
bottom hinge on the left designated position and tighten it. (Fig. 5)
8. Recheck and adjust the door alignment by loosening the screws
○
6 and moving the door
adapter
○
5 . Tighten the screws
○
6 after the door is levelled. (Fig. 5)
