6.4 DESIGN 4 – For double door models
1
2
8
9
4
5
6
7
3
3

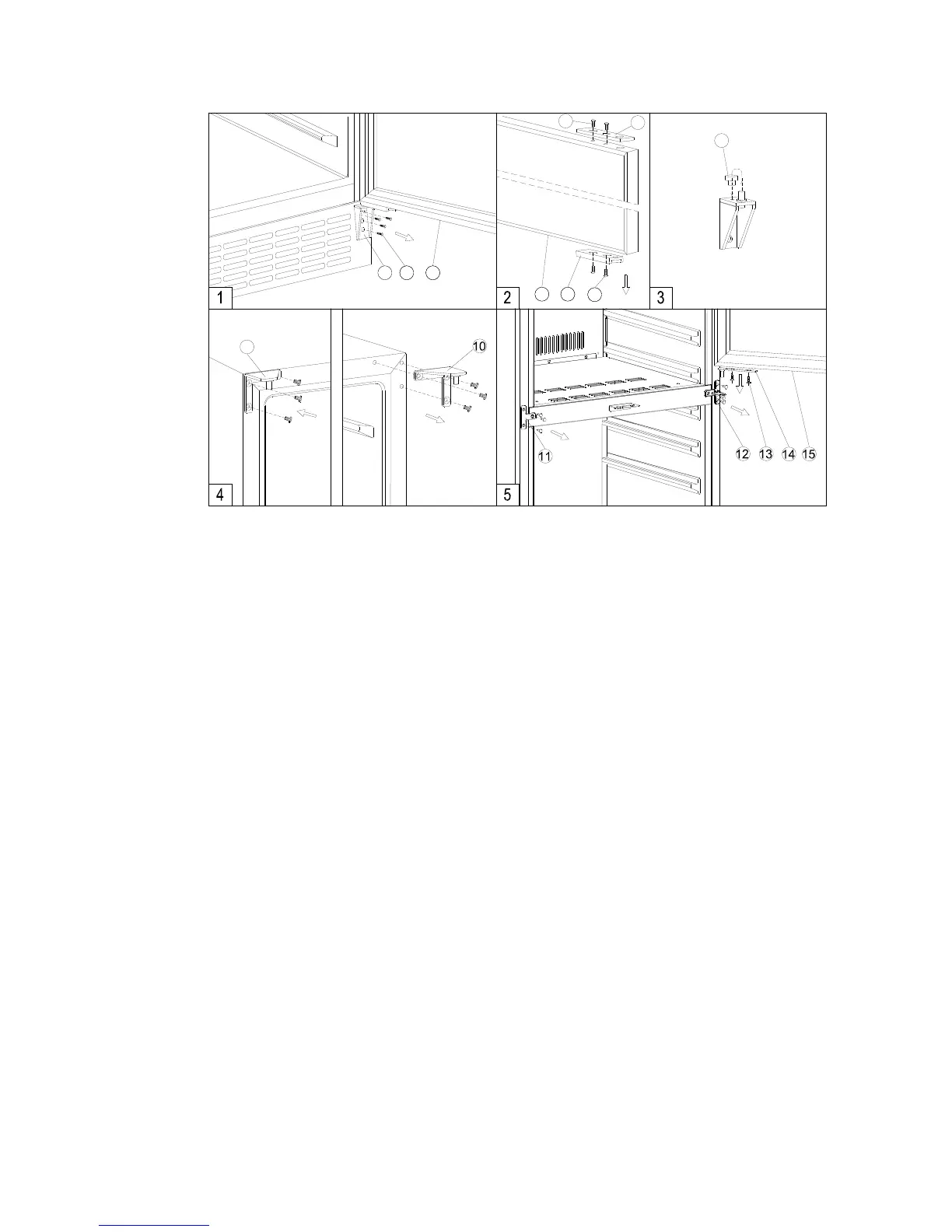

1. Remove the bottom hinge
○
1 by unscrewing the four screws
○
2 . Be careful to hold the
lower glass door
○
3 firmly after removing the screws. And then gently pull down to remove
the lower glass door from the middle hinge and place it on a padded surface to avoid the risk
of damage. (Fig. 1)
2. Unscrew and transfer the door adapter
○
4 and
○
7 to the designated opposite position of
lower glass door. (Fig. 2)
3. Remove the door adapter
○
14 by unscrewing the two lock screws
○
13 . Be careful to hold the
upper glass door firmly after removing the screws. And then gently pull down to remove the
upper glass door
○
15 from the top hinge and place it on a padded surface to avoid the risk of
damage. Then remove the right top hinge
○
10 . (Fig. 5 & 4)
4. Unscrew and transfer the middle hinge
○
12 and the middle fixing plate
○
11 to the opposite
position. (Fig. 5)
5. Pop out the cover caps on the left side of cabinet and use them to cover the screw holes on
the right hand side.
6. Screw the alternative left top hinge
○
9 , included in the fittings, on the left hand side of cabinet.
(Fig. 4)
7. Relocate the door adapter
○
14 on the middle hinge
○
12 .
8. Set the upper glass door to the designated position and install the two lock screws to connect
the door adapter
○
14 with the upper glass door and tighten them before the door is leveled.
