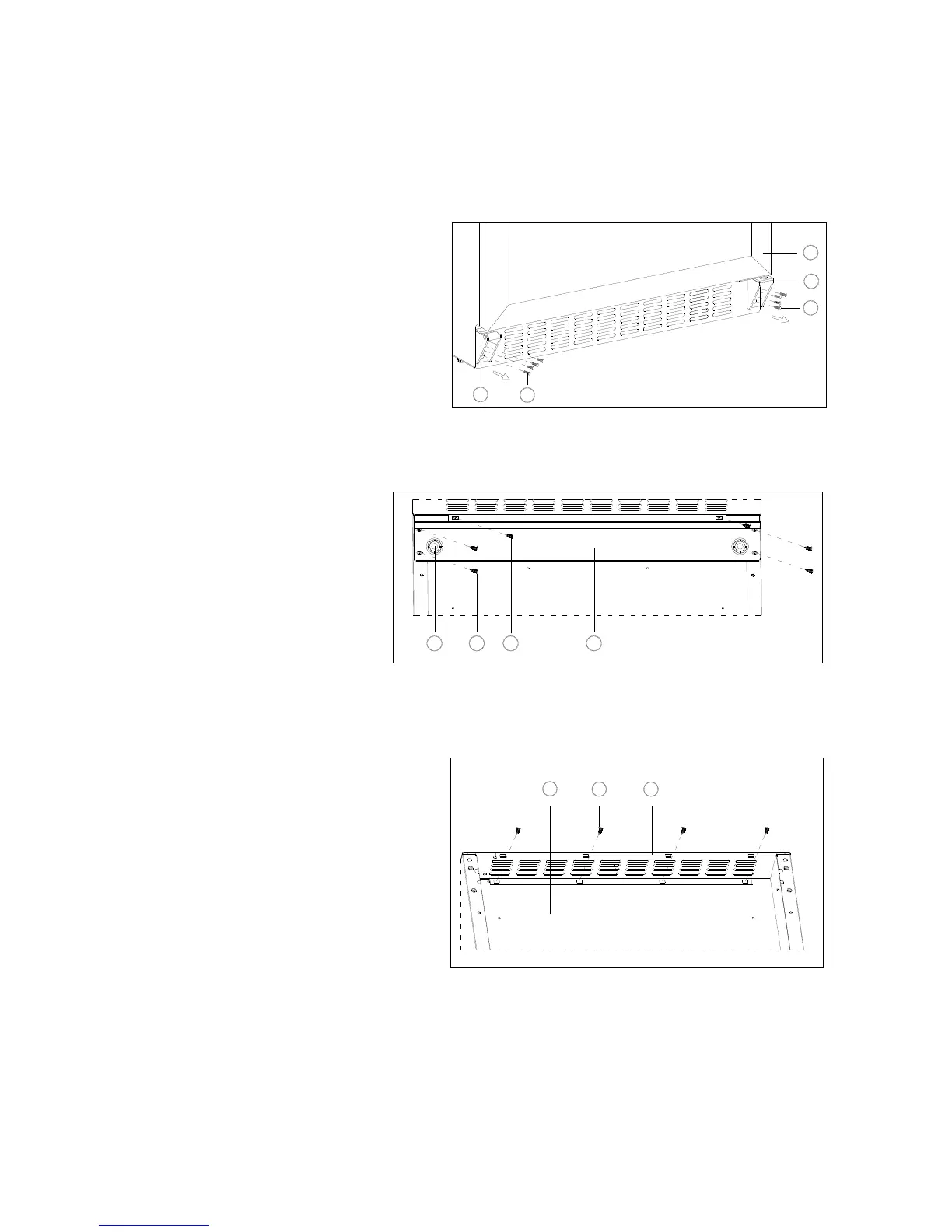

7.4 REPLACING THE VENTILATION GRILLE / LOCK ASSEMBLY (FOR VC100, VC125 &
VC170 SERIES)
1. With assistance, tilt the unit back and remove the lock screws
○
1&
○
5 holding the bottom
hinge
○
2 and door supporter assembly
○
4 to the cabinet. Be careful to hold the glass
door firmly after removing the screws. Pull down to remove the glass door and place it on a
padded surface to prevent scratching it.
2
3
1
4
5
2. Remove the two screws
○
3 that secure the ventilation grille to the reinforced bracket. At the
same time remove the four bolts
○
2 that fix the reinforced bracket
○
4 to the cabinet.
123 4
3. Remove the four screws
○
2 that secure the bottom grille
○
3 to the cabinet bottom. Now
you can replace the ventilation grille and lock.
32
1
