Adjustments
Pan brake knob adjustment
Because its movement is restricted, the pan brake knob (15) may require adjustment after pro-
longed use.
To adjust the pan brake knob:
Remove the securing screw (15.1) and pull the knob (15) off the shaft (15.2).
Turn the shaft (15.2) clockwise until the pan brake is fully applied.
Install the knob (15) on the shaft (15.2) approximately at right angles to the body of the
head.
Turn the knob fully counterclockwise and ensure the brake is released. Turn the knob clock-
wise and ensure the brake is applied before the knob reaches the end of its travel.
Readjust as necessary and secure the knob with the screw (15.1).

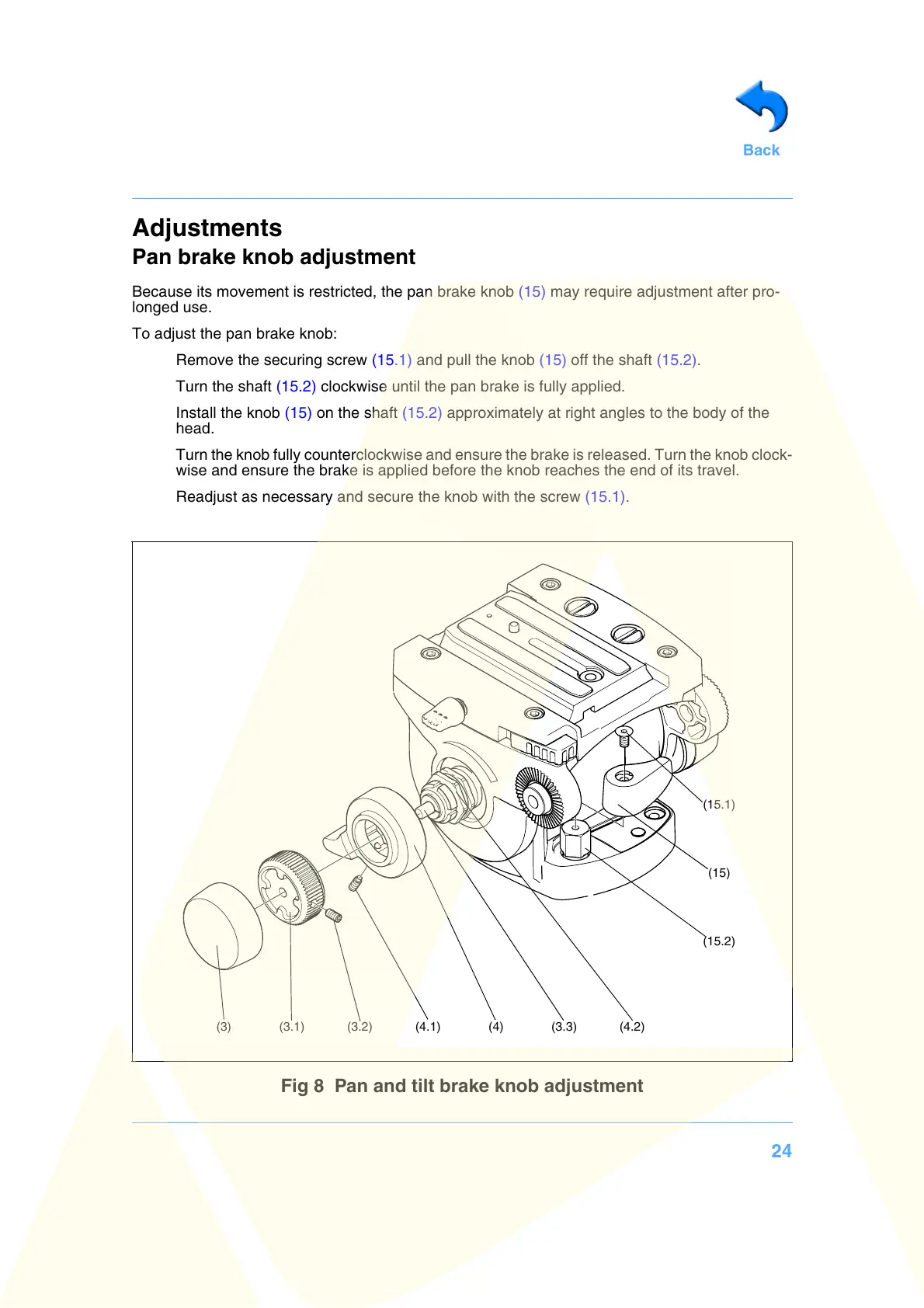

Fig 8 Pan and tilt brake knob adjustment
(15)
(3) (4.1)(3.1) (3.2) (4) (3.3)
(15.1)
(15.2)
(4.2)
