27 Both drag knobs are provided with illuminated scales, graduated from 0 to 9. To illuminate the scales,
press the switch (9). The lamp will extinguish after 15 seconds.
28 The tilt drag adjustment knob (10) is on the left-hand side of the head, the pan drag knob (19) is on the
right -hand side. The pan drag knob is telescopic and should be pulled out to facilitate adjustment and pushed
in when adjustment is complete.
29 To increase drag, turn the knob clockwise, towards a higher graduation. To decrease drag, turn the
knob anti-clockwise, towards a lower graduation.
30 The whip-pan facility is unaffected by the pan drag setting.

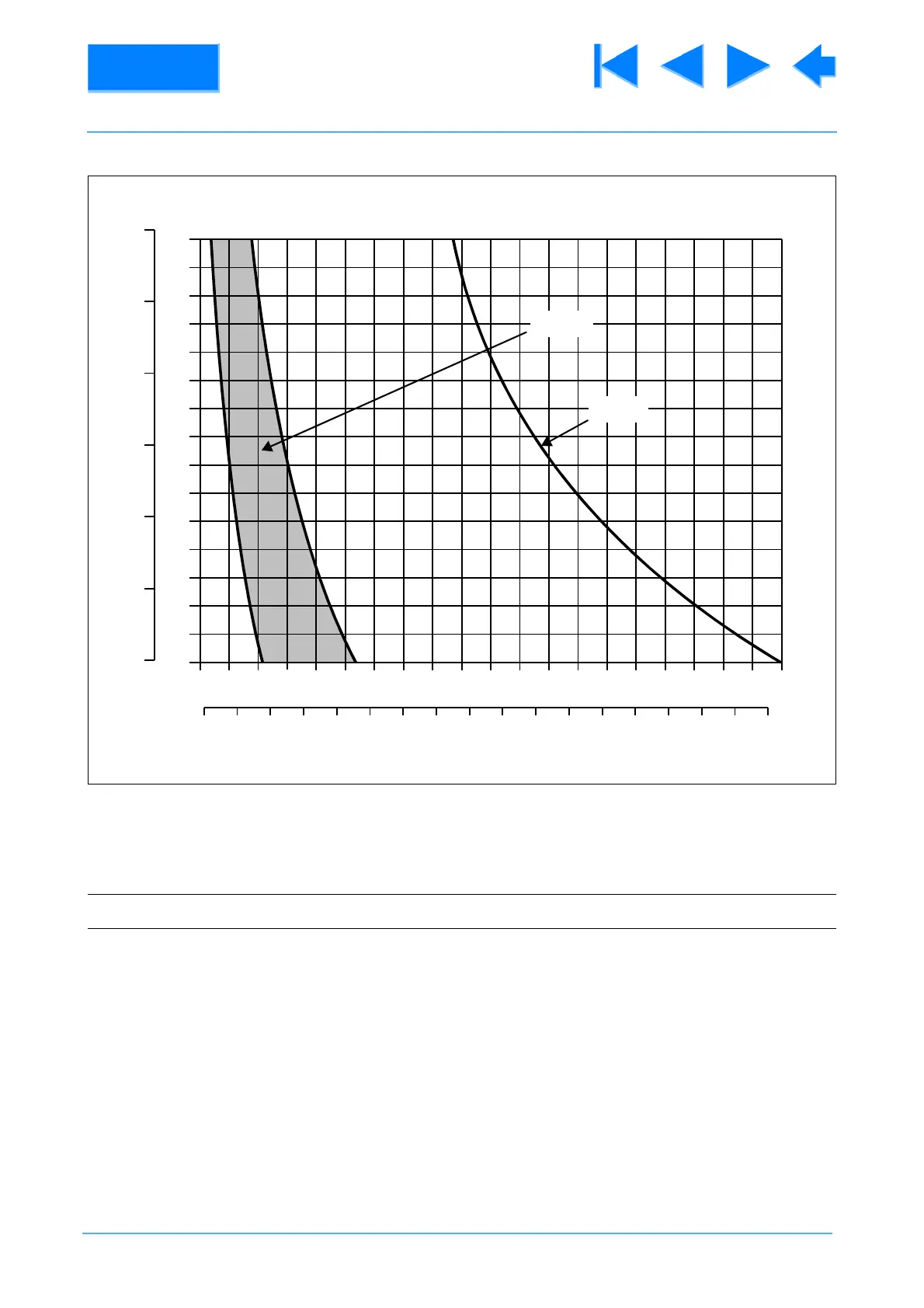

Fig 2.3 Balance Graph
NOTE: If the ambient light level is high, the scales will not be lit.
200
180
160
140
120
8
7
6
5
100
4
80
60
3
250
2 4 6 1012141618202224 383626
8075705045403530252015105
in. mm
kg
lb
± 90°
± 68°
70
90
110
130
150
170
190
8283032344042
55 60 65 85 90
CENTRE OF GRAVITY HEIGHT
PAYLOAD
