AV EQUIPMENT
It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder,
video game or stereo system, etc.....
YPbPr can support these video formats:480i,576i,480p,576p,720p,1080i.

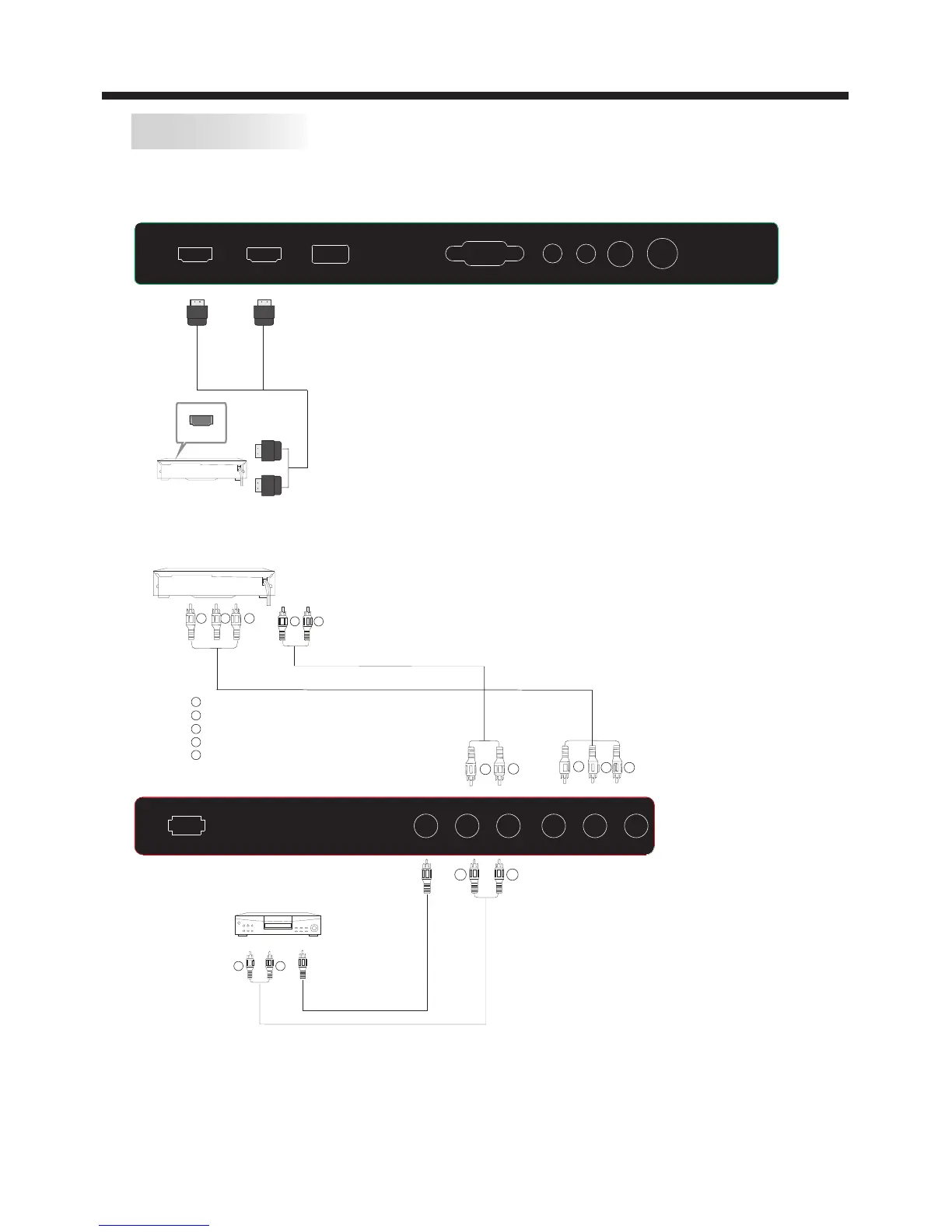

You can use the input terminals on TV set rear as follows.You can use the input terminals on TV set rear as follows.
HDMI
HDMI1 HDMI2
USB
VGA
HEADPHONE
RF
PC AUDIO COAXIAL
Yellow (video)
White(audio L)
Red(audio R or Pr)
Y
W
R
W R
G
B
R
Blue(Pb)
Green(Y)
B
G
VIDEO EQUIPMENT with YPbPr
W
R
G
B
R
W
R
W R
TO AUDIO OUTPUTS
VIDEO EQUIPMIENT
TO VIDEO
OUTPUTS
Y Pb Pr
AV L R
AC-INPUT
100-240V~50/60Hz
