Viper 3002 - Door Lock Harness Wire Connection Guide; Relay Harness Wiring Diagram; Relay Harness Wiring Instructions

8
©
2006
Directed Electronics, Inc.

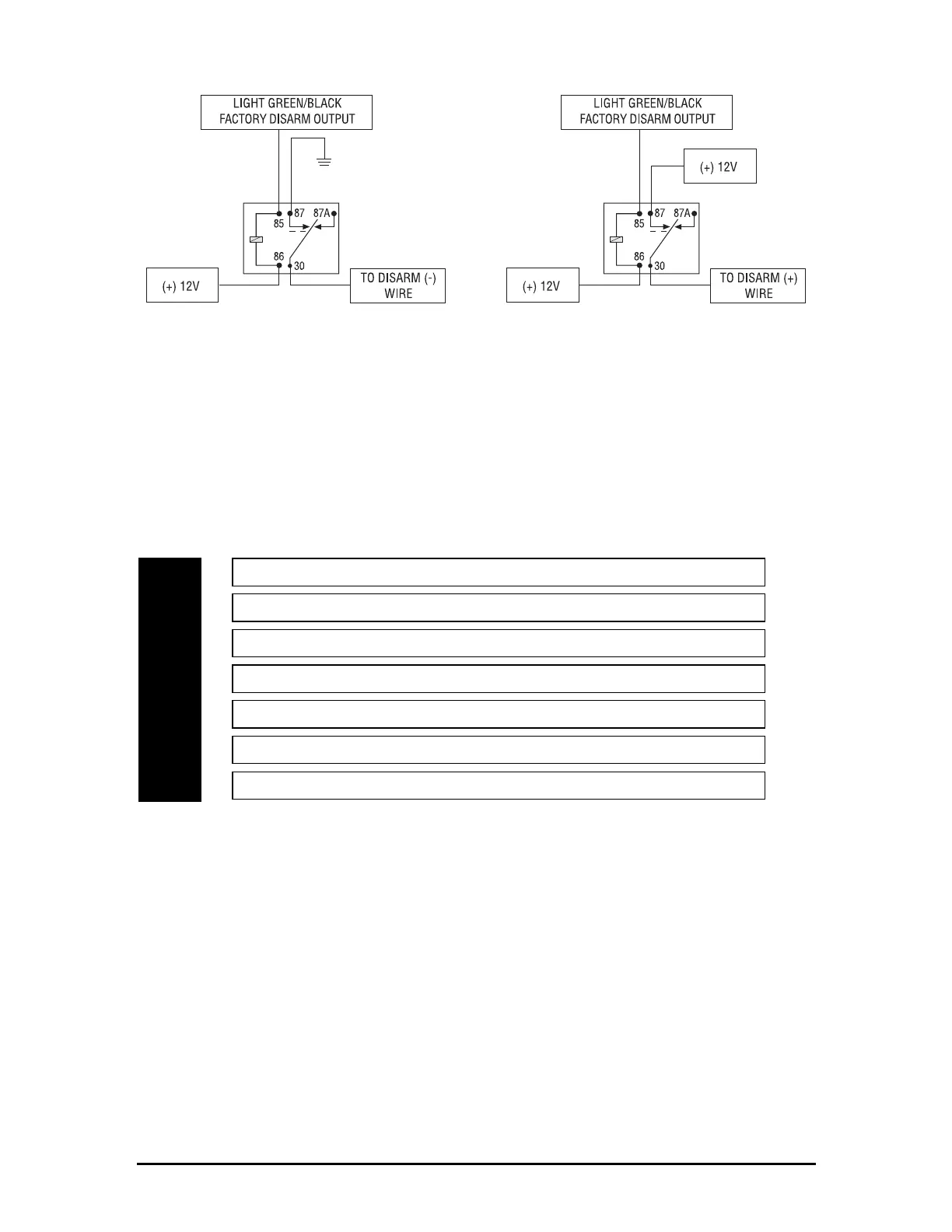

RReellaayy ffoorr NNeeggaattiivvee ((--)) DDiissaarrmm WWiirree RReellaayy ffoorr PPoossiittiivvee ((++)) DDiissaarrmm WWiirree
Door Lock Harness Wire Connection Guide
Relay Harness Wiring Diagram
___
___
___
___
___
___
___
*NOTE: VIOLET and VIOLET/BLACK are common at fuse holder.
VIOLET* Unlock #87 Normally Open (Input)
BLUE/BLACK Unlock #30 Common (Output)
BROWN/BLACK Unlock #87a Normally Closed
VIOLET/BLACK* Lock #87 Normally Open (Input)
GREEN/BLACK Lock #30 Common (Output)
WHITE/BLACK Lock #87a Normally Closed
BLACK/WHITE DomeLight Supervision relay Input #87
H3/A
H3/B
H3/C
H3/D
H3/E
H3/F
H3/G
