Peripheral Plug-In Harnesses

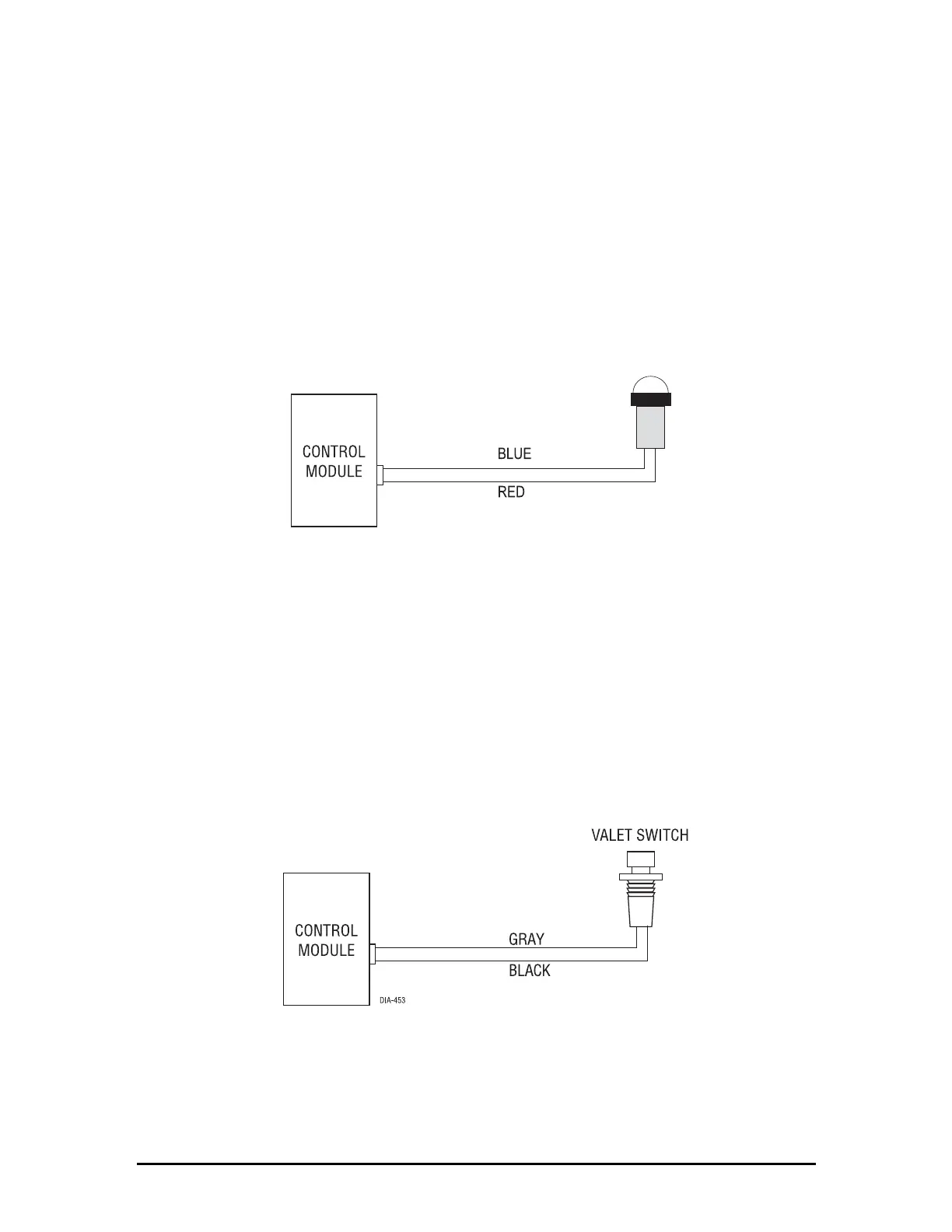

Super Bright LED, 2-Pin WHITE Plug
The super bright LED plugs into the two-pin WHITE port. Make sure the LED wires are not
shorted to ground as the LED will be damaged. Two LEDs can be used, but they must be wired in
series. The LED fits into a 9/32-inch mounting hole. Be sure to check for clearance prior to drilling
the mounting hole.
NOTE: Never use a BLUE LED in combination with a RED LED.
Valet/Program Button, 2-Pin BLUE Plug
The Valet/Program button should be accessible from the driver’s seat. It plugs into the BLUE port
on the side of the unit. Since the system features a Valet button, by using the remote transmitter, this
button can be well hidden. Consider how the button will be used before choosing a mounting
location. Check for rear clearance before drilling a 9/32-inch hole and mounting the button.The
GRAY wire in the two-pin plug may also be used as a (+) ghost switch input and can be connected
to any (+) switch in the vehicle. (See Feature Descriptions section of this guide.)
