VARIPOOL
16
1.1 It is incompatible with:
a. Single phase motors with centrifugal switch
b. Pool pump motors with start relays or switch
c. Series or DC motors
d. Pool pump motors with faults in their rotors or capacitors
e. Three-phase motor coupled in 400V.
1.2 A circuit breaker with a rated residual current not exceeding 30mA must be used with this product.
If you are not sure of the compatibility of your pool pump with this device, please contact your
supplier or manufacturer before proceeding with installation.
2.TECHNICAL DATA
for single phase pump for 3 phases pump
Model 50963 (E) 50964 (E) 50965 (E) 50966 (E)
Input power 1 phase AC 1 phase AC 1 phase AC 1 phase AC
Input voltage 220~240V 220~240V 220~240V 220~240V
Input frequency 50Hz 50Hz 50Hz 50Hz
Output power Max 1.1 kW Max 2.2 kW Max 1.1 kW Max 2.2 kW
Output Voltage 1ph, 0~240V 1ph, 0~240V 3ph, 0~240V 3ph, 0~240V
Pump type Single phase Single phase Three Three
Max. current Max 6 A Max 12 A Max 4.5 A Max 8 A
Speed range 1200~2900 rpm 1200~2900 rpm 1200~2900 rpm 1200~2900 rpm
Cooling Heater Heater + fan Heater Heater + fan
Net Dimension (L*H*W) 187 * 110 * 155 mm 187 * 110 * 155 mm 187 * 110 * 155 mm 187 * 110 * 155 mm
Gross/Net Weight 3.0/2.7Kg 3.0/2.7Kg 3.0/2.7Kg 3.0/2.7Kg
Models with «E» in reference number comes with 2.5 m external control cable.
Main
winding
Auxiliary
winding
If a Varipool suitable for three-phase pumps
is used, the drive will be supplied with 230V
single-phase and the pump must be connected
to 230V or delta for a motor:
230V Δ/400V .
Y
three phase :
Single phase:
coupling Δ
-230V
U2
Z2
Z2
U1
U230V

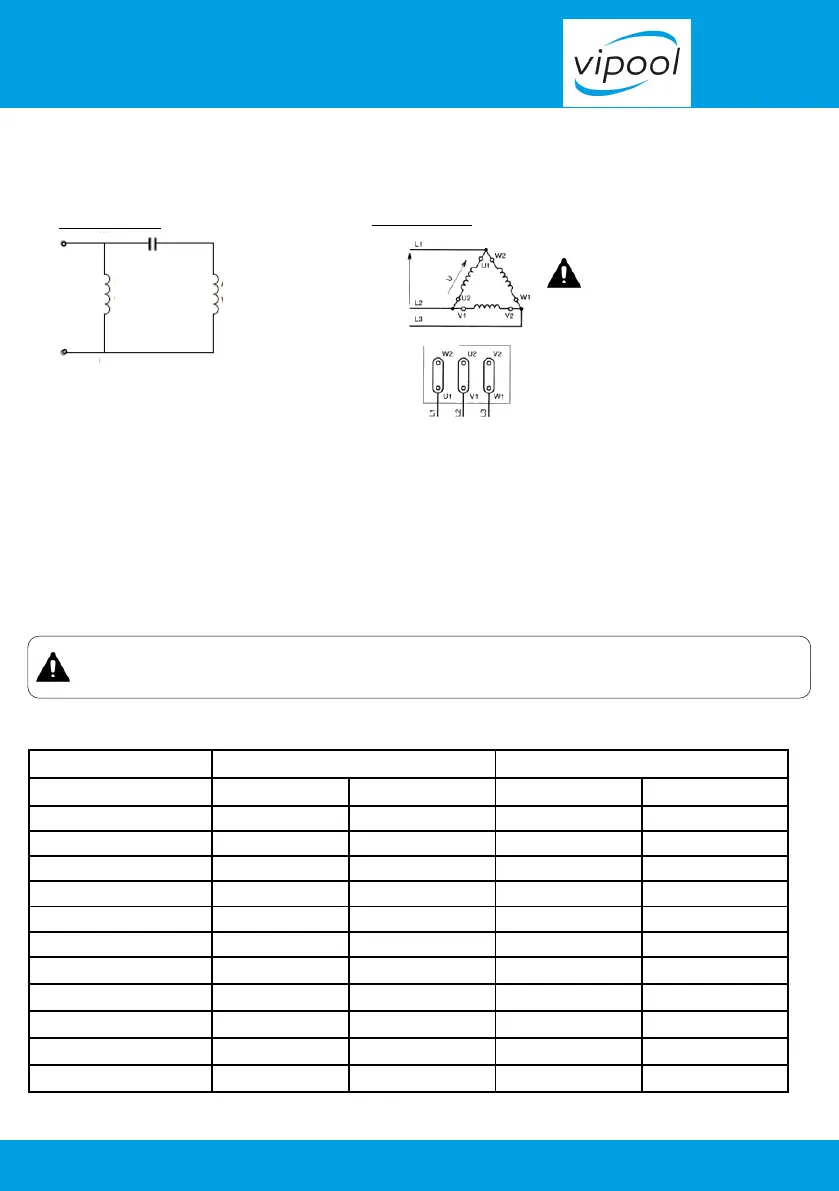

This device can ONLY be used with pool pumps with permanent split capacitor motor and
230/400 V three phase motor. The schematic diagram below show a typical single speed
swimming pool pump motor and a 3 phase motor 230.
