VARIPOOL
18

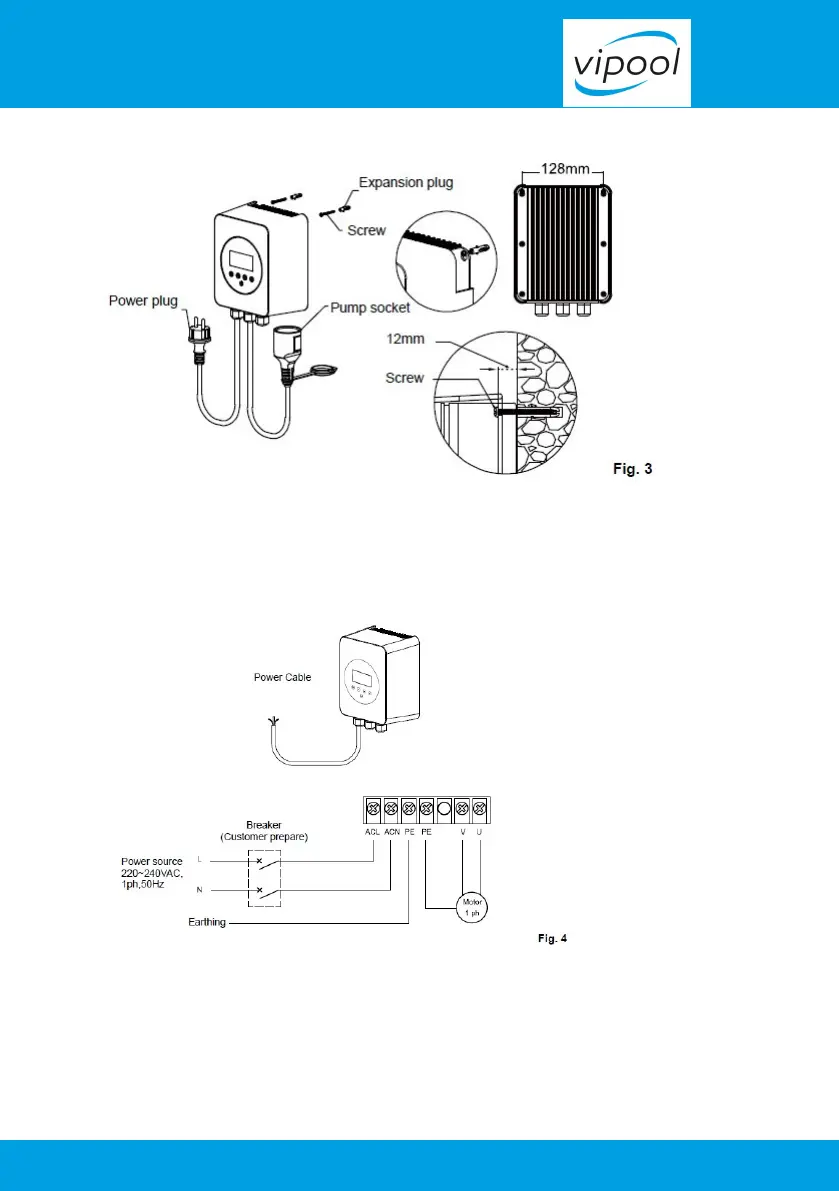

Above figure is for reference only, plug & socket may vary for dierent countries/regions.
If you do not require a power plug for installation, wire the device as shown in Fig.4, please.
Do not touch the heat sink while the device is in operation or until at least 30 mins after it has
been switched o. Keep it out of reach of children.
Because of high voltage conversion components contained in the device, do not try to
disassemble or replace any components in case of malfunction or breakdown. Before serving
on the unit, wait till the power light turned o or at least 3 minutes after power plug has been
plugged o from input supply.
