Virgin HD-5 - Drum Kit Assembly - Pads and Module; Mounting Snare and Tom Drum Pads; Attaching Sound Module and Stand

BACK
SNARE
TO M
(g.5)
(g.6)
DRUM KIT ASSEMBLY (CON’T)
(g.7)
SNARE
TOM

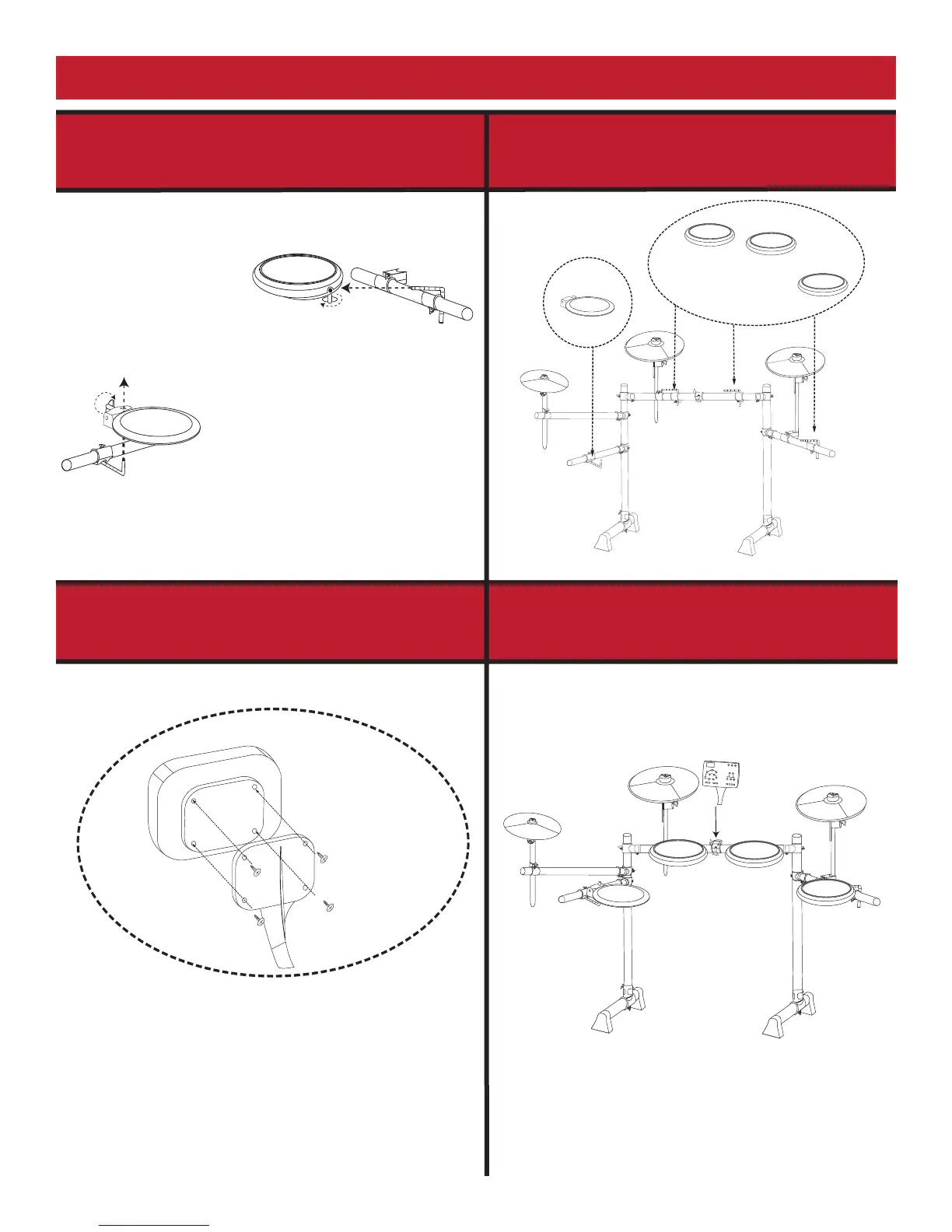

7. Attach the Drum Pads in the positions
hown below. (g. 5)
6. Align the holes in Snare Drum Pad and the
three Tom Drum Pads and insert them into the
pole on the Drum Frame as shown.
8. Align the holes and attach the screws
with the Drum Sound Module head
and its stand as shown below. (g. 6)
9. Insert the rod of sound module stand into
the Drum Frame clamp as shown, then tight-
en. (g.7)
