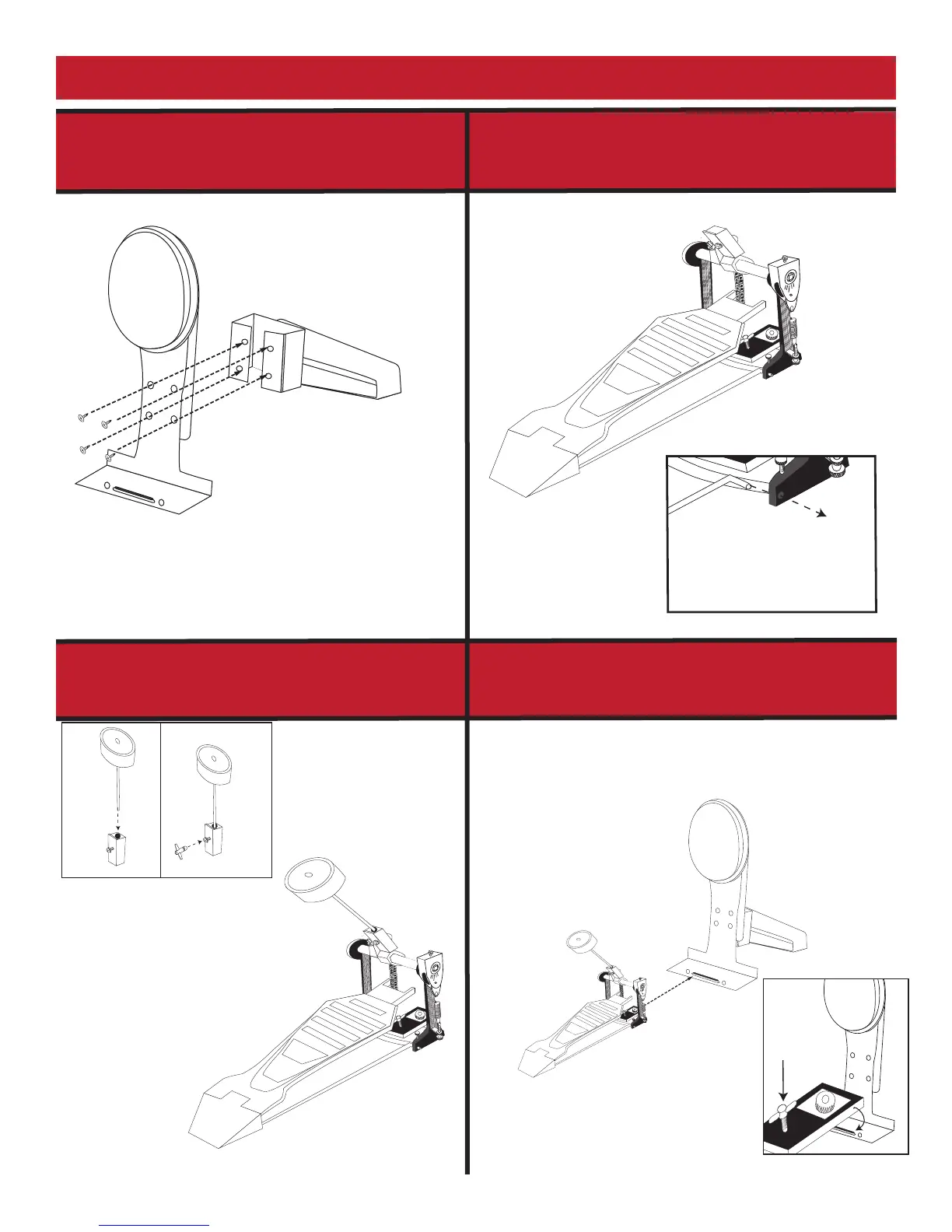

Virgin HD-5 - Drum Kit Assembly - Kick Drum and Pedal; Attaching Kick Drum; Assembling Kick Drum Pedal; Connecting Kick Drum to Pedal

12. Attach the kick drum pedal mallet to the
kick drum pedal by insertIng and attaching as
shown below. (g.10& 11)
(g.8)
(g.9)
(g.10)
DRUM KIT ASSEMBLY (CON’T)
(g.11)
(g.13)
(g.12)
11. Assemble the kick drum pedal by inserting
the two chrome metal rods into the kick drum
pedal frame as shown below . (g.9)
10. Attach the kick drum to the kick drum
brace as shown below. (g.8)
13. Insert the tongue of the kick drum into the clamp of
the kick drum pedal. (g.12) Tighten clamp on the ped-
al until the kick drum and pedal are securely fastened.
(g.13)
