Virgin HD-5 - Drum Kit Wiring Diagram and Final Assembly; Hi-Hat Pedal Placement; Connecting Wiring Harness

plug into “trigger”
control module
cable snake
to drumset
POWER
OFF ON
DC 9V
USB TRIGGER
HEADPHONE
LINE OUT LINE IN
Drum Module Connector Panel

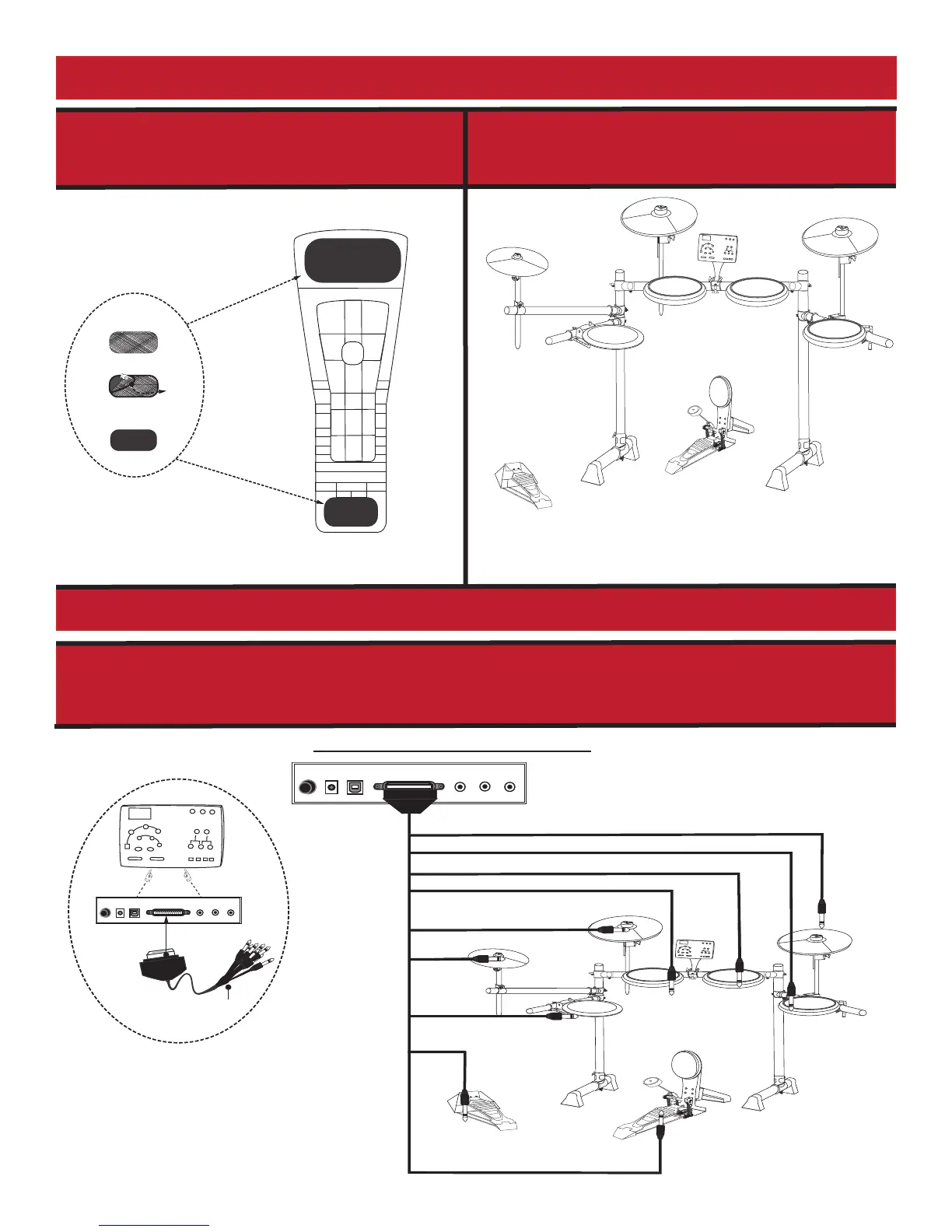

DRUM KIT WIRING DIAGRAM
POWER
OFF ON
DC 9V
USB
TRIGGER
HEADPHONE
LINE OUT LINE IN
kick
high-hat control
snare
hi-hat
crash
tom 1
tom 2
tom 3
ride
CARPET
HARD FLOORING
PEEL
(g. 14)
(g. 15)
DRUM KIT ASSEMBLY (CON’T)
14. Check the surface pads on the bottom of the
hi-hat control pedal. The pads may be used on
either carpet or hard ooring. (g.14)
15. Place the hi-hat control pedal on the
ground by the hi-hat cymbal. (g.15)
16. Connect the wiring harness to the interface at the bottom of the drum sound module, then
connect the labeled cables to their corresponding drum pads, cymbals and pedals, as show
below.
