VIRTUFIT Row 450 - Step 2: Slide Rest Installation; Step 3: Stand Rail Connection

5
ENG
VirtuFit Row 450 Rowing Machine
STEP 2
STEP 3
ASSEMBLY INSTRUCTIONS

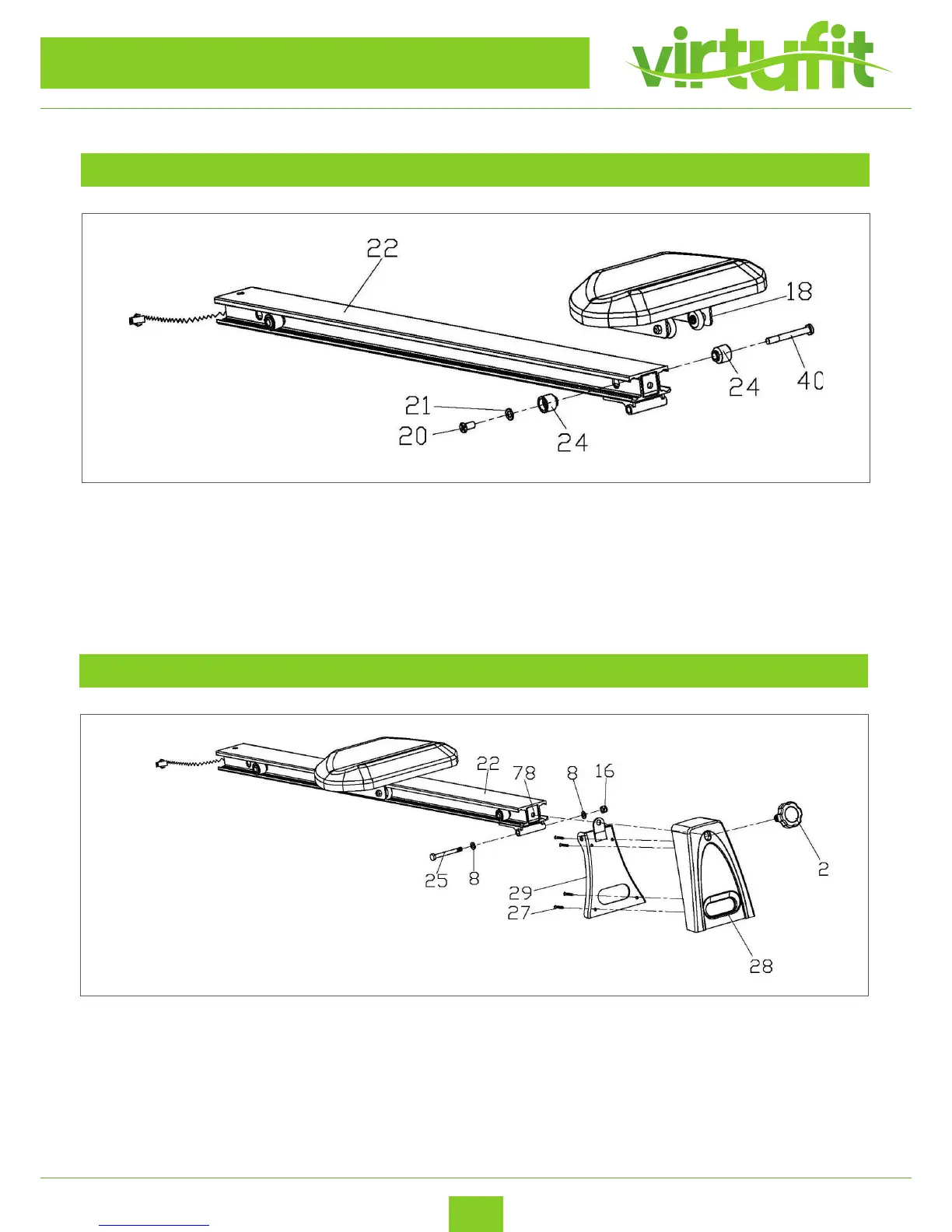

Take o the Cross pan bolt (20), Flat washer (21), Limit valves (24), Limit valves axis (40), then insert the slide
rest (18) onto the slide way (22), and then tighten slide rest (18) by Cross pan bolt (20), Flat washer (21), Limit
valves (24), Limit valves axis (40).
Tighten the stand rail (29) to the Slide way (22) with Hexagon bolt (25), Flat washer (8), Nylon nut (16). Then
tighten the protective guard (28) to the Stand rail (29) with Cross pan bolt (27), lock the Stand rail (29) to the
L-shape connection strap (78) with Knob (2).
