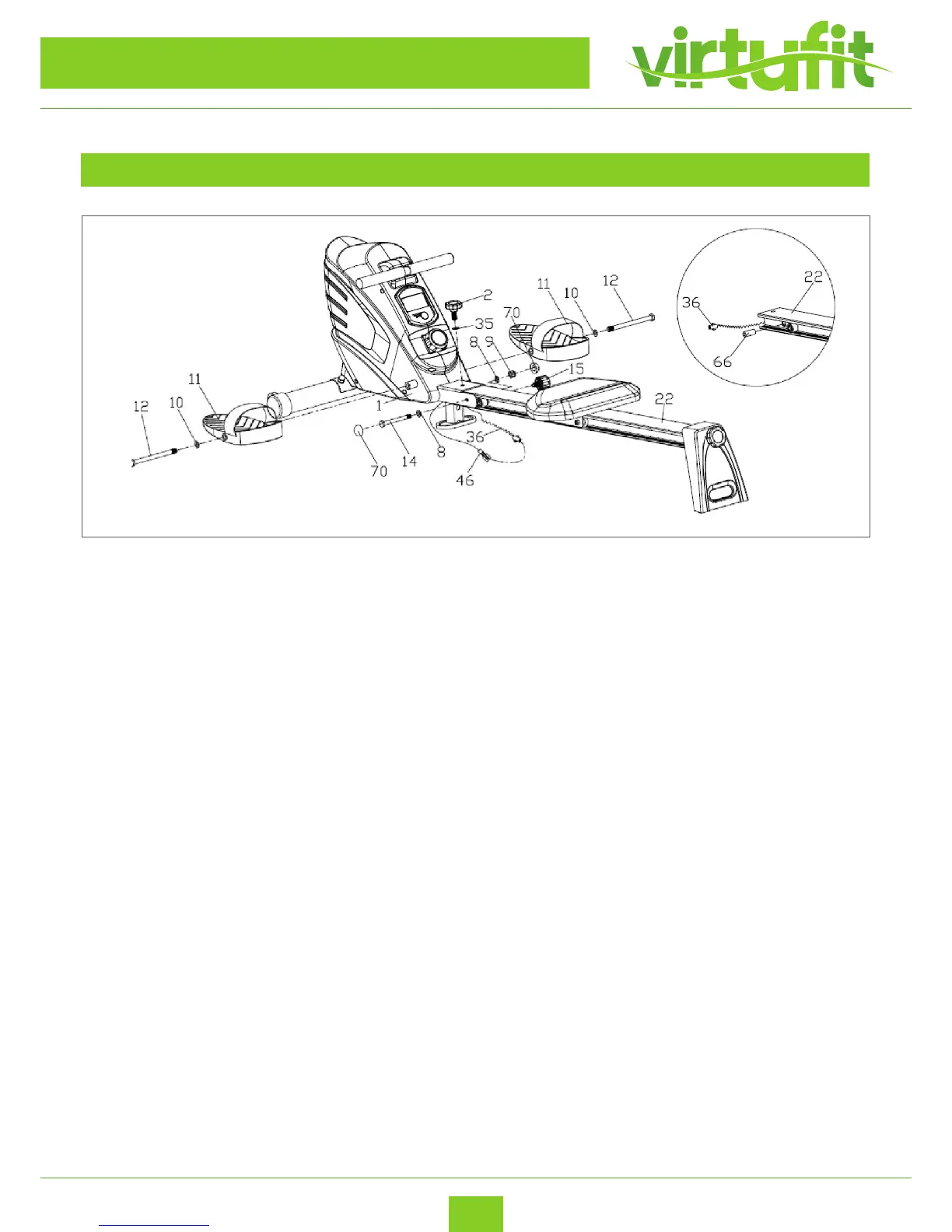

STEP 4
ASSEMBLY INSTRUCTIONS
Connect the Sensor wire (46) and the Sensor splice (36), the cable might be hidden inside the slide. Then in-
sert the Stay pipe (66) through a hole in the Slide way (22),Then tighten the slide way (22) to the mainframe
(1) with hexagon bolt (14) 、Flat washer (8) 、Nylon nut (9) and put the cap (70).At last lock it by Knob (2) and
Flat washer (35).
Tighten the pedal (11) to the mainframe (1) with bolt (12) 、at washer (10). When folding it, take o the
knob (15) and fold the slide way (22).
