VirtuFit Row 450 Rowing Machine
STEP 5
ASSEMBLY INSTRUCTIONS

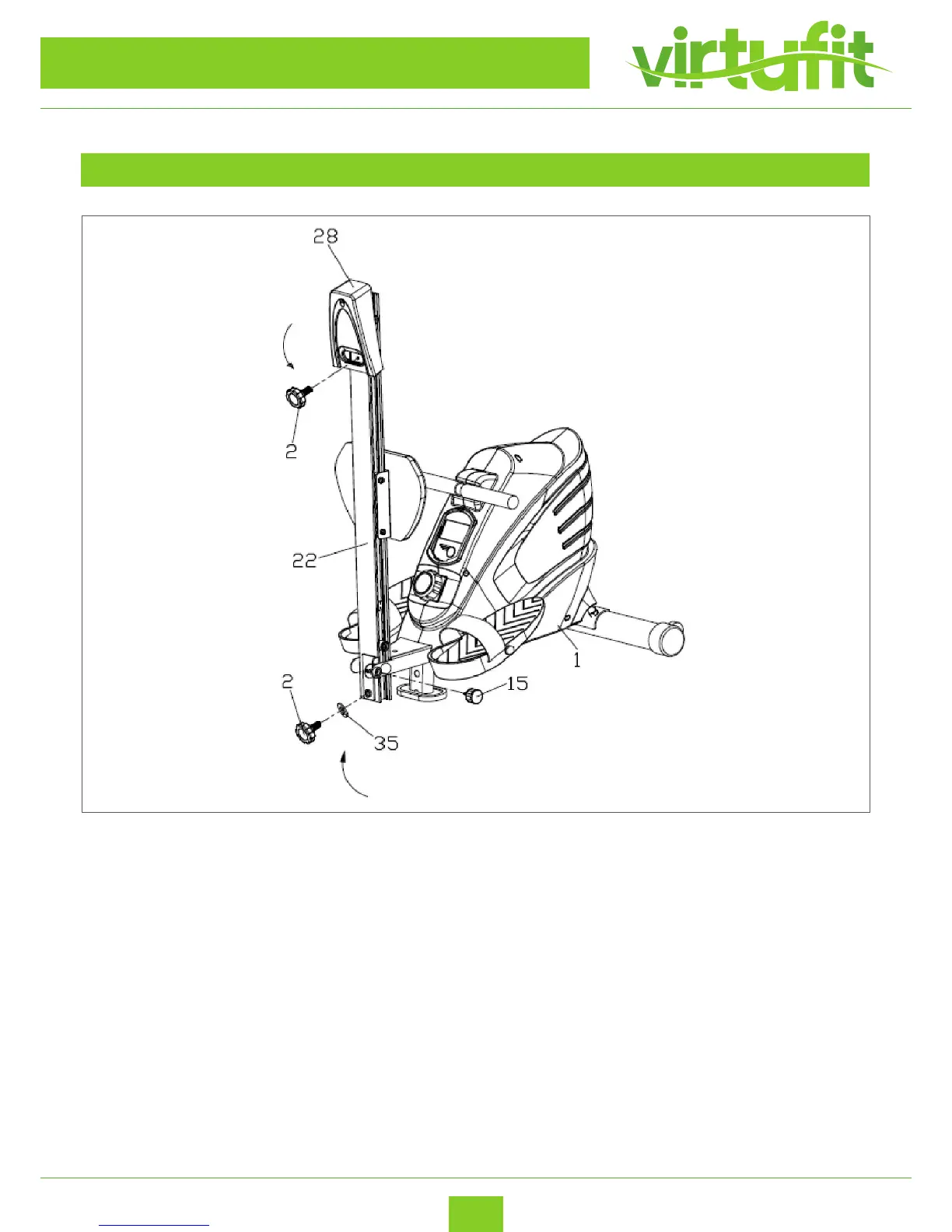

The Rowing machine could be folded if you do not use it. First take o the knob (15), and the knob (2), at
washer (35), then fold the slide way (22) and protective guard (28) as the diagram show. Fix the mainframe
(1) to the protective guard (28) with knob (2) and at washer (35).
