Weight..............................................................................................9,2 kg
Weighted equivalent continuous acoustic pressure level A..<80 dBA
Uncertainty...................................................................................K = 3 dbA
Wear ear protection!
Vibration total values............................................................a
h
: <2.5 m/s
2
Uncertainty.................................................................................K: 1.5 m/s
2
3. STANDARD EQUIPMENT
The box contains the following items:
• Manual hot glue edgebander
• Bag containing 250 g of Virutex glue.
• Service keys.
• Hanging ring and chuck, for working with the machine
suspended (Fig. 22-23)
• Reusable wooden box, comes with a metal support to which
the gluing machine can be fastened.
• Operating Instructions
4. OPTIONAL ACCESSORIES
• MEB-250 table for edgebander 5046525
• End cutter+ rollholder RC50T for MEB-250 5046266
• Container of glue (3 kg) 2599266
• Anti-stick silicon free “Cantspray”
• FR156N edge trimmer
• CA56G head
• Pneumatic clamping system, tilting and swivelling SVN460
5046400
• SFV50 5045753 stand with 2 suction pads
• SFV150 5045833 stand with 1 suction pad
• AU93 double edge trimmer (max. 1 mm)
• RC21E end trimmer (max. 1 mm)
• RC221R end trimmer (max. 2 mm)
• RC321S end trimmer (max. 3 mm x25)
• Auxiliary roller (special for corners and concave shapes)
5046764
5. PACKAGING AND TRANSPORT
The machine comes in a wooden box, which should be saved
for subsequent transporting.
5.1 UNPACKING
The machine is inside the box and should be removed in the
following way:
• Remove the top cover and keep it in a safe place for later use.
• Unscrew the 3 screws B (Fig. 1) by mean of a screwdriver,
remove them from the box A (keep them for later use).
• Take machine B (Fig. 2) out of the box A (Fig. 2).

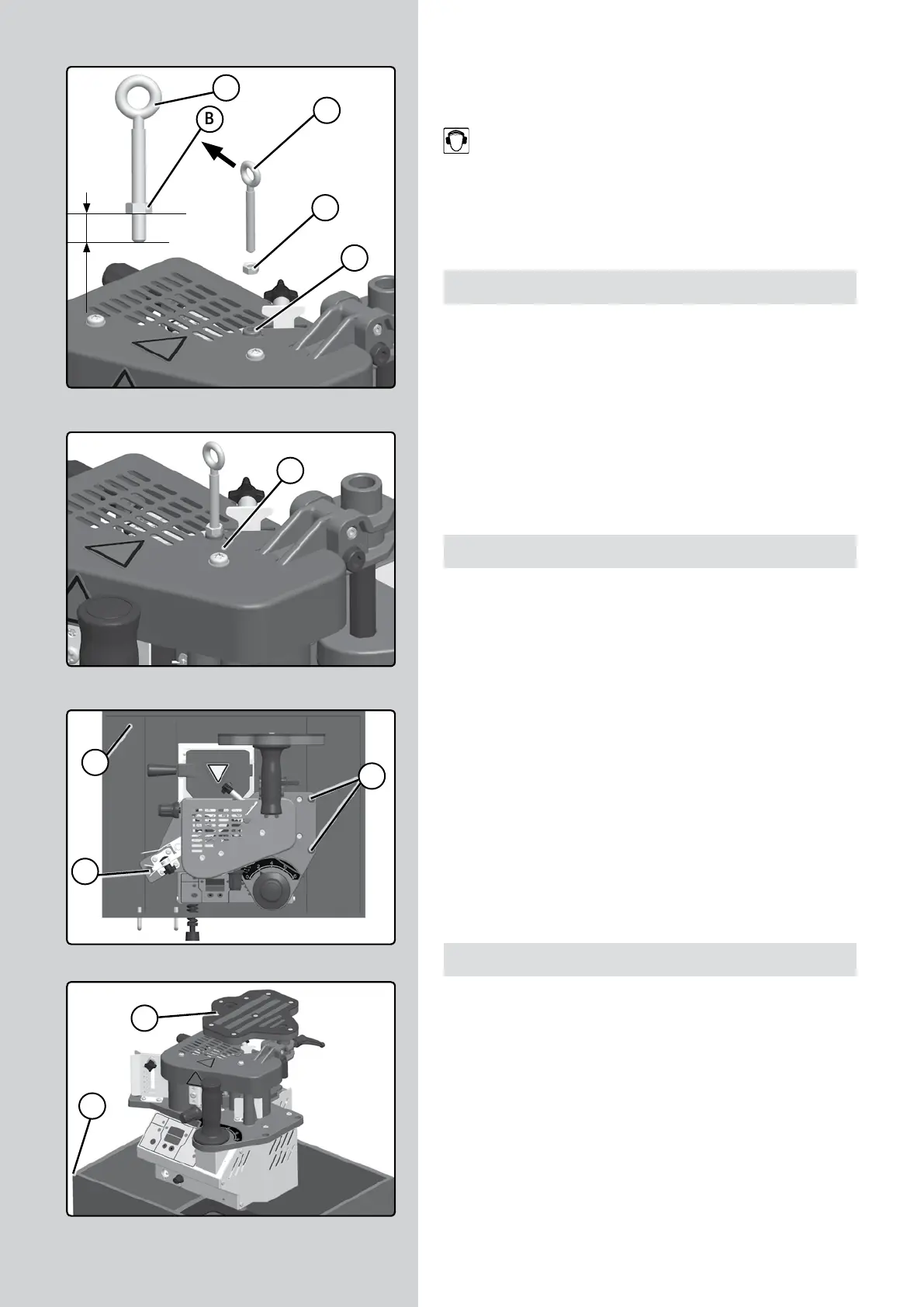

(Figure 1)
(Figure 2)
B
A
(Figure 22)
(Figure 23)
A
B
C
B
A
10 mm (max)
A
B
A
B
PEB200-PEB250 / Operating instructions - 23
